Summary of Contents for Chauvet Legend 1200E Spot

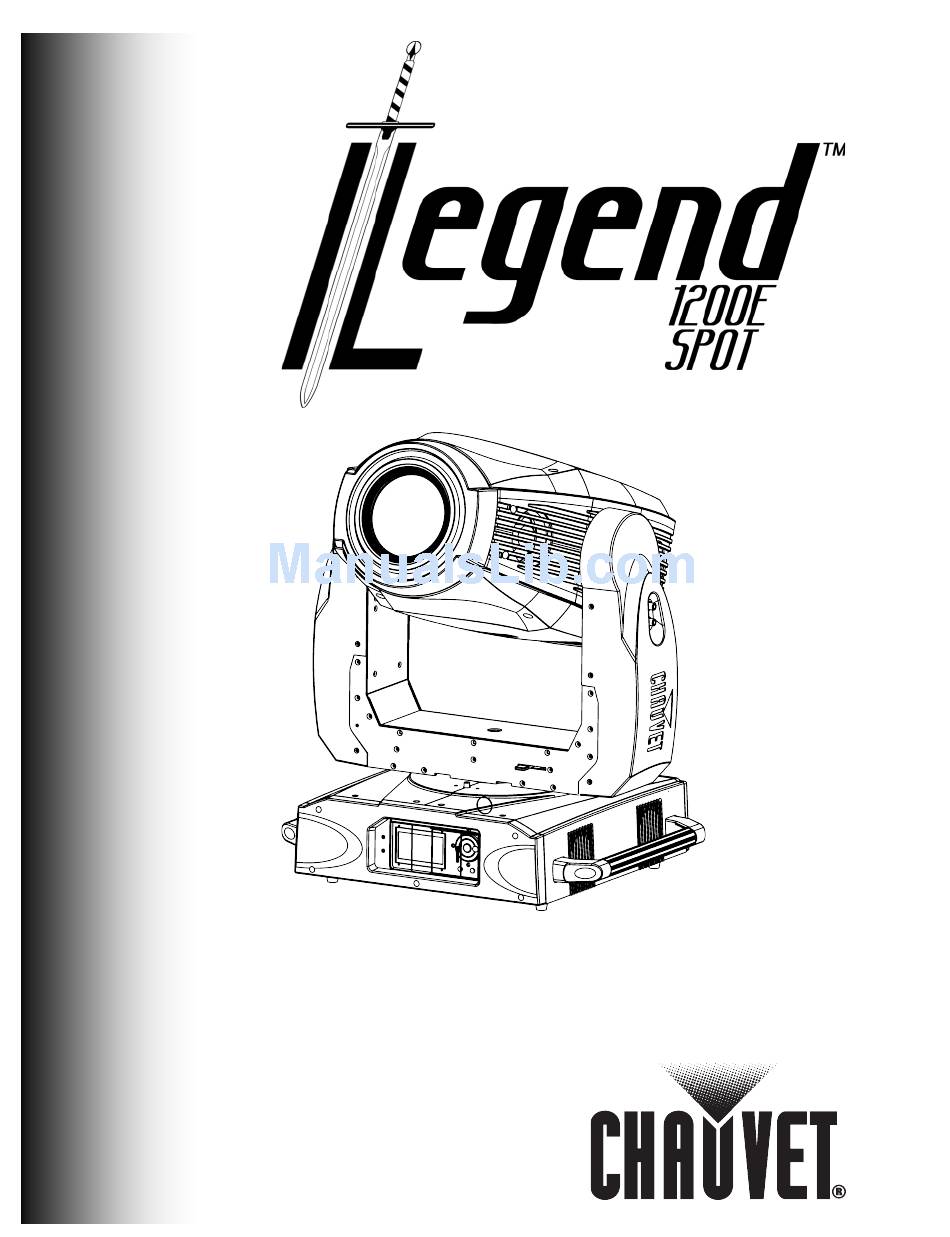

  • Page 1 User Manual...
  • Page 2: Edition Notes

    Copyright Notice CHAUVET® owns the content of this user manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2010 CHAUVET®...
  • Page 3: Table Of Contents

    Fixture Information ... 18 Fixture Reset ... 18 Special Functions... 19 Offset Mode ... 20 Entering Offset Mode ... 20 DMX Values ... 22 Mode 1 (Basic)... 22 Mode 2 (Advanced) ... 24 Legend™ 1200E Spot User Manual Rev. 03c Table of Contents...
  • Page 4 5. Technical Information ... 27 General Maintenance ... 27 Dust Screen Cleaning ... 27 Error Messages ... 28 Troubleshooting Guide ... 29 Returns Procedure ... 30 Claims ... 30 Contact Us ... 30 Technical Specifications... 31 Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 5: Before You Begin

    MENU > Settings Icon Meaning The term “DMX” used throughout this document refers to the USITT DMX512-A transmission protocol. Legend™ 1200E Spot User Manual Rev. 03c One Legend™ 1200E Spot Two omega brackets Two hanging trigger clamps One flight case...
  • Page 6: Safety Notes

    • • • In the unlikely event that your CHAUVET® product may require service, please contact CHAUVET® Technical Support. Avoid direct eye exposure to the light source while the fixture is on. Always disconnect this product from its power source before servicing.
  • Page 7: Introduction

    2. Introduction Product The Legend™ 1200E Spot is a moving yoke fixture with a 1200 W short arc discharge lamp. It contains an LCD control panel (display), through which all of the settings can Description be set or modified. This fixture can operate at 200~240 VAC, 50/60 Hz, which eliminates the need for a voltage selection switch.
  • Page 8: Dmx Channel Summary

    Tilt Tilt fine Pan/tilt speed Dimmer Shutter Color Cyan Magenta Yellow 3,200 K (CTO) Filter Gobo 1 Gobo 1 rotation Gobo 2 Gobo 2 rotation Focus Zoom Effect/prism Effect/prism rotation Iris Frost Function Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 9: Product Overview

    Power LED indicator DMX in (3-pin) DMX out (3-pin) DMX out (5-pin) DMX in (5-pin Pan lock Control panel Legend™ 1200E Spot User Manual Rev. 03c DMX LED indicator Tilt lock Carrying handle (1 of 2) Introduction Wheel ENTER button...
  • Page 10: Product Dimensions

    Introduction Product Dimensions Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 11: Setup

    AC Plug The Legend™ 1200E Spot has a bare-ended power input cord that is hard-wired to the base of the fixture. Use the table below to wire a plug for the power cord. Make sure to disconnect the fixture’s power cord before replacing a blown fuse, and always replace it with a fuse of the same type and rating.
  • Page 12: Mounting

    The Legend™ 1200E Spot comes with two omega brackets and two clamps. You will have to use two mounting points per fixture. You can also mount the Legend 1200E Spot on the floor or any other firm, horizontal surface. CHAUVET® recommends following the general guidelines below when mounting the Legend™...
  • Page 13: Bracket Installation

    Location 1 Location 2 Optics The Legend 1200E Spot has one color wheel with seven colors and two gobo wheels that support six rotating, slot-n-lock gobos each. The colors in the color wheel are not replaceable, but the gobos are.
  • Page 14: Gobo Wheels

    Setup Gobo Wheels The diagram below shows both gobo wheels and the number assigned to each gobo on each wheel. Rotating Gobo Wheel 1 Rotating Gobo Wheel 2 -10- Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 15: Replacing Gobos

    Replacing Gobos The gobos in the Legend 1200E Spot’s gobo wheels are removable from their gobo plates. This operation is quite simple, although it requires the technician to be careful and to follow the recommended procedure. • • • 1) Turn the fixture off and disconnect it from the power outlet.
  • Page 16: Lamp Replacement

    Setup Lamp The Legend 1200E Spot is equipped with a Phillips MSR1200SA/SE FastFit lamp. This lamp uses a socket that allows for fast and easy lamp changes. Follow the procedure Replacement below to safely change the Legend 1200E Spot’s lamp.
  • Page 17: Operation

    • Control Options You can set the Legend™ 1200E Spot’s start address in the 001~512 DMX range. This allows for the control of up to 22 fixtures in the 23-channel DMX Mode 1 and up to 16 fixtures in the 31-channel DMX Mode 2.
  • Page 18: Menu Map

    Factory Settings -14- Level Level 1~512 Mode 1 (23) Mode 2 (31) Active Retransmit Reset Memory No/Yes On/Off No/Yes High/Auto 0~255 No/Yes 1~10 °C/°F 000~255 Exit/ Reset Time No/Yes Interval/Remain Time Yes/No Legend™ 1200E Spot User Manual Rev. 03c Level No/Yes...
  • Page 19: Programming

    <MENU>. DMX Operation The Legend 1200E Spot operates always in standard DMX mode (no “Slave,” “Auto,” or “ID addressing” modes). The options in the DMX Operation section set the starting DMX address and the DMX mode as well as show the fixture’s DMX configuration. To access this section, do the following: 1) Press <MENU>.
  • Page 20: Lamp Settings

    When enabled (Yes), this option turns the lamp on when DMX signal is present. Present 1) Select On if DMX On. 2) Select Yes or No 3) Press <ENTER>. -16- Continued from previous page Continues on the next page Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 21: Display Settings

    When enabled (Yes), this option turns the lamp on when DMX signal is present. 1) Select On if DMX On. 2) Select ºC (Celsius) or ºF (Fahrenheit). 3) Press <ENTER>. Legend™ 1200E Spot User Manual Rev. 03c Continued from previous page Continues on the next page Operation...
  • Page 22: Fixture Tests

    4) Press <MENU> to exit once you are done with this section. -18- Continued from previous page function value, as if you had used a DMX controller). and all the manually entered values will become 000). Continues on the next page Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 23: Special Functions

    LCD. 1) Select Fixture Maintenance. 2) To change the maintenance interval timer, 3) To reset the remaining time counter, Legend™ 1200E Spot User Manual Rev. 03c Continued from previous page a) Select Interval. b) Select the new interval (in hours).
  • Page 24: Offset Mode

    Select the new value (0~255). b) Accept the new value. a) Select the new value (0~255). b) Accept the new value. a) Select the new value (-128~127). b) Accept the new value. Continues on the next page Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 25 Focus Motor 1) Select Focus and press <ENTER>. Zoom Motor 1) Select Zoom and press <ENTER>. Legend™ 1200E Spot User Manual Rev. 03c Continued from previous page a) Select the new value (-128~127). b) Accept the new value. a) Select the new value (-128~127).
  • Page 26: Dmx Values

    058  067 Gobo 12 068  077 Gobo 7 shake 078  087 Gobo 8 shake 088  097 Gobo 9 shake 098  107 Gobo 10 shake Continues on the next page Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 27 (Cont.) R-Gobo 2 Focus Zoom Effect/prism R-Effect/Prism Iris Frost Function Legend™ 1200E Spot User Manual Rev. 03c Continued from previous page Value Percent/Setting 108  117 Gobo 11 shake 118  127 Gobo 12 shake 128  189 CCW rotation (fast~slow) 190 ...
  • Page 28: Mode 2 (Advanced)

    048  057 Gobo 11 058  067 Gobo 12 068  077 Gobo 7 shake 078  087 Gobo 8 shake 088  097 Gobo 9 shake Continues on the next page Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 29 Zoom Effect/prism R-Effect/prism Iris Frost Pan/tilt Macro (works with Channel Macro Range Legend™ 1200E Spot User Manual Rev. 03c Continued from previous page Value Percent/Setting 098  107 Gobo 10 shake 108  117 Gobo 11 shake 118  127 Gobo 12 shake 128 ...
  • Page 30 Frost/effect reset 200  209 Reset all 210  219 Pan/tilt/color/gobo move-in-black (enable) 220  229 Pan/tilt/color/gobo move-in-black (disable) 230  239 Lamp off 240  255 No function End of Mode 2 Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 31: Technical Information

    If the fixture has one or more fans, refrain from spinning them using compressed air. Dust Screen The Legend 1200E Spot fixture uses multiple fans. To prevent dust buildup on the components of the optic path, each of the fans on the forward section of the moving Cleaning head have a dust screen as shown in the diagram below.
  • Page 32: Error Messages

    Check main control board • Check part’s free movement and integrity • Check sensors’ wiring and position • Check stepper motor, belt, and driver board • Check the corresponding control board • Check main control board Legend™ 1200E Spot User Manual Rev. 03c...
  • Page 33: Troubleshooting Guide

    Too many fixtures • Interference from AC wires If you still experience technical problems after trying the above solutions, contact CHAUVET® Technical Support. Legend™ 1200E Spot User Manual Rev. 03c Technical Information Action(s) • Repair outlet problem or use another outlet •...
  • Page 34: Returns Procedure

    The user must clearly label the package with a Return Merchandise Authorization Number (RMA #). CHAUVET® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box. Instead, write it on a properly affixed label.
  • Page 35: Technical Specifications

    Head Movement Gobos Photo Optic Thermal Maximum External Temp. Ordering Legend™ 1200E Spot LEGEND1200ESPOT Warranty Legend™ 1200E Spot User Manual Rev. 03c Length Width 21.2 in (539 mm) Length Width 28 in (711 mm) Power Supply Type Range 100~240 V, 50/60 Hz...
  • Page 36 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Legend™ 1200E Spot User Manual Rev. 03c October 2010...
