- Page 1 Q-Spot 152™ Chauvet, 3000 N 29 USER MANUAL Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Snapshot OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave Multitap Transformer Replaceable Fuse User Serviceable Duty Cycle...
-
Page 2: Table Of Contents
HANNEL ALUES IN ASIC ...21 ENERAL ROUBLESHOOTING ...21 ECHNICAL UPPORT 5. APPENDIX...22 DMX P ...22 RIMER ...23 ENERAL AINTENANCE ... 23 ETURNS ROCEDURE ... 23 LAIMS ... 24 ECHNICAL PECIFICATIONS Q-Spot 152 User Manual ...11 ...11 INKING ...18 ...20 2007-07-09/17:40... -
Page 3: Before You Begin
1. B EFORE What is included 1 x Q-Spot 152™ 150W HTI Lamp 5 additional metal gobos Power Cord Warranty Card User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Contact Us
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. Q-Spot 152 User Manual Chauvet Lighting... -
Page 5: Introduction
Tilt Fine pan Fine tilt Vector speed Color wheel Gobo wheel Gobo rotate Strobe Dimmer Automatic and reset Effect Q-Spot 152 User Manual DVANCED MODE UNCTION ASIC MODE Tilt Color wheel Gobo wheel Gobo rotate Strobe Dimmer Automatic and reset... -
Page 6: Product Overview

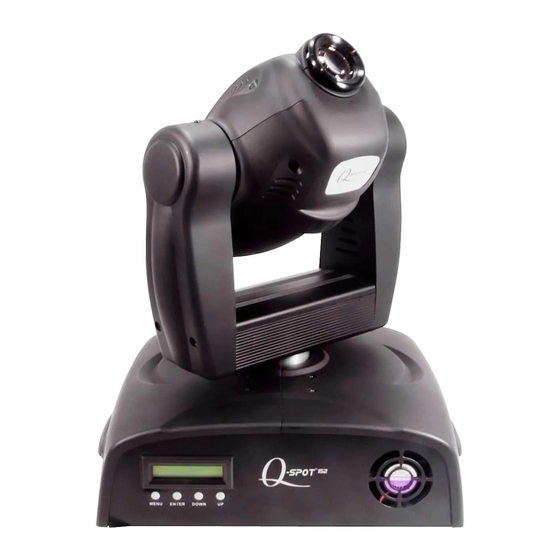

Product Overview Head Base Control Panel Voltage Select Switch (Internal) Power Switch Q-Spot 152 User Manual Focus Adjust IEC Power Connector DMX Output DMX Input Easy Controller Input (sold separately, release date TBA) Microphone 2007-07-09/17:40... -
Page 7: Setup
Never turn off the power to the unit while the lamp is striking. Always wait 15 minutes after powering on the fixture before powering down. Turning off the lamp during striking may permanently damage the lamp. Q-Spot 152 User Manual ocket 2007-07-09/17:40... -
Page 8: Lamp Alignment How-To
With a flat head screwdriver wedge the fuse holder out of its housing. Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power. Q-Spot 152 User Manual Lamp Alignment Screws The fuse is located inside this compartment. -
Page 9: Replacing Gobos
Maximum recommended number of fixtures on a serial data link: 32 fixtures Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 10: Dmx Data Cable
3-PIN TO 5- PIN CON VE R SION CHAR T If you use a controller with a 5 Note! CHAUVET Model No: DMX5M, or DMX5F. The chart below details a proper cable conversion: IN TO ONVERSION Conductor... -
Page 11: Setting Up Admx Serial Data Link
(male) 3 pin connector. 3. Then, proceed to connect from the output as stated above to the input of the following fixture and so on. CHAUVET Certified DMX Data Cables Order Code Description DMX1.5... -
Page 12: Mounting
Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Safety cable attachment points Clamp attachment point Q-Spot 152 User Manual Note! Clamp is sold separatel Clamp attachment point Hanging Clamp... -
Page 13: Operating Instructions
Use the <UP> and <DOWN> buttons to navigate the menu map and menu options. Press the <ENTER> button to access the menu function currently displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Q-Spot 152 User Manual NSTRUCTIONS Function... -
Page 14: Menu Map
Normal select: Reverse 6-Tilt select: Normal select: Reverse 7-Color select: Step select: Linear 8-Channels select: Basic select: Advanced 9-Info Q-Spot 152 User Manual 1-Address select: 001 2-Reset select: No 2-Reset select: Yes 3-Operation select: DMX 3-Operation select: Auto1 4-Display... -
Page 15: Menu Functions
Press the <MENU> button. Scroll up or down until <7-Color> is displayed. Press <ENTER>. Press up or down until <select: Step> or <select: Linear> is displayed. “Step” snaps to colors, “Linear” allows split colors. Press <ENTER>. Q-Spot 152 User Manual 2007-07-09/17:40... -
Page 16: To Change The Channels Setting
The unit will react to the low frequencies of music via the internal microphone in Sound Active mode, or the unit will auto change in Auto Mode. In Random mode, the unit will periodically change between auto and sound-active modes. Q-Spot 152 User Manual 2007-07-09/17:40... -
Page 17: Master/Slave Mode (Master Sound, Master Auto)
This mode allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with DMX, please read the DMX Primer on page 22. Press the <MENU> button. Scroll up or down until <3-Operation> is displayed. Press <ENTER>. Press up or down until <select: DMX> is displayed. Press <ENTER>. Q-Spot 152 User Manual 2007-07-09/17:40... - Page 18 DMX Channel Values in Advanced Mode HANNEL ALUE Q-Spot 152 User Manual UNCTION Tilt Fine pan Fine tilt Vector Speed: (Normal > Slow) Color Wheel White (Open) Orange Yellow Green Blue Magenta Pink Cyan Color scroll: Slow > Fast Gobo Wheel...
- Page 19 Q-Spot 152 User Manual Reset No effect Sound Active 1 Sound Active 2 Random Effect No Effect Effect 1 Effect 2 Effect 3 Effect 4 Effect 5 Effect 6 Effect 7 Effect 8 Effect 9 Effect 10 Effect 11 Effect 12...
-
Page 20: Dmx Channel Values In Basic Mode
DMX Channel Values in Basic Mode HANNEL ALUE Q-Spot 152 User Manual UNCTION Tilt Color Wheel White (Open) Orange Yellow Green Blue Magenta Pink Cyan Color scroll: Slow > Fast Gobo Wheel Open Gobo 1 Gobo 2 Gobo 3 Gobo 4... -
Page 21: General Troubleshooting
If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the next page. Technical Support... -
Page 22: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 23: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 24: Technical Specifications
Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols... DMX-512 USITT DMX Channels ...12/9 ORDERING INFORMATION Q-Spot 152 ... Q-Spot 152 WARRANTY INFORMATION Warranty ... 2-year limited warranty Q-Spot 152 User Manual 2007-07-09/17:40...
