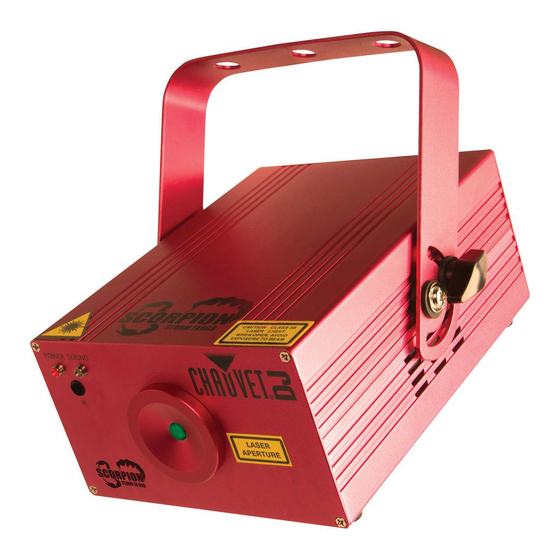

Page 1: User Manual
LG-40 Scorpion Array™ CHAUVET, 3000 N 29 USER MANUAL Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Snapshot Ok on Dimmer Outdoor OK Sound Activated DMX/Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle... -
Page 2: Table Of Contents
DMX Q ... 15 UICK EFERENCE HART DMX C ... 16 HANNEL ALUES ... 16 ROUBLESHOOTING ... 17 ENERAL AINTENANCE ... 17 ETURNS ROCEDURE ... 17 LAIMS ... 18 ECHNICAL PECIFICATIONS ... 18 ECHNICAL UPPORT LG-40 User Manual ... 9 1/10/2007/10:43... -
Page 3: Before You Begin
Earth = Green/Yellow cable Neutral = Blue cable Live = Brown cable DANGER LG-40 User Manual Figure 1 - AC Voltage Switch Not all fixtures have a voltage select switch. Please be sure to connect to the proper voltage. -
Page 4: Safety Instructions
Do not daisy chain power to more than eight units. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. LG-40 User Manual 1/10/2007/10:43... -
Page 5: Introduction
NTRODUCTION Your LG-40 is very unique! You may notice that the beams coming out of the projector are larger than the 4.95mW projectors. There is a very distinct reason for this. Unlike 4.95mW projectors, the output of the CHAUVET laser projectors with Fatbeam™ technology outputs <20mW for each beam. -
Page 6: Product Overview
*AC Power Output (See note below) *Note: This power link can be used to connect up to seven additional LG-40 units together in a daisy chain. This is the ONLY intended purpose for this outlet. LG-40 User Manual FF 1 =O N X=0FF o r O N... - Page 7 Array configurations using optional hardware. LAB-40V LAB-40CT LG-40 User Manual 1/10/2007/10:43...
-
Page 8: General Instructions
• Be sure all equipment necessary to operate the system has arrived intact. • In the event that damage has been found or parts are missing, please contact CHAUVET customer support for further instructions. • Please do not return the unit to your dealer without first contacting CHAUVET customer support. -
Page 9: Compliance Statement
OMPLIANCE TATEMENT Your LG-40 complies with FDA/CDRH 21CFR1040 and Laser Notice 50 as well as IEC 60825- 1:2003. Due to a unique optic design, this product does not exceed output powers that exceed its classification and output levels government agencies have determined to be appropriate for the products function. -
Page 10: Proper Usage
CHAUVET offers a range of items, which are ideal for safe mounting. It is the responsibility of the manufacturer to provide useful instruction on the proper use of this product. -
Page 11: Dmx Mode
DMX Mode In this mode you will be able to control each individual trait of the fixture independently. The LG-40 occupies 2 channels of DMX control. For detailed listing of the DMX channel values and laser patterns refer to the Appendix section. -
Page 12: Operation
To perform a hard reset: turn off the power to the fixture, wait 10 seconds, and turn on the power to the fixture. LG-40 User Manual Dipswitches 9 = On, 10 = On 9 = Off, 10 = On... -
Page 13: Universal Dmx Control (Dmx Mode)
Assign a DMX address to the unit according to the instructions included with your controller. Also included is a DMX Quick Reference Chart on page 15 DMX-512 1: MASTER Use a DMX controller to control your units. LG-40 User Manual Dipswitches 1-9 = DMX address, 10 = Off 2: SLAVE POWER 3, 4, 5, etc.: SLAVE... -
Page 14: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 15: Dmx Quick Reference Chart
26 58 90 122 27 59 91 123 28 60 92 124 29 61 93 125 30 62 94 126 31 63 95 127 Dip Switch Position LG-40 User Manual DMX Address Quick Reference Chart Dip Switch Position DMX Address 1/10/2007/10:43... -
Page 16: Dmx Channel Values
If no laser outputs from the projector please restart the AC power by turning off the AC switch and leaving off for 15 seconds and then turning the switch back to the on position. If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at (954) 929-1115. -
Page 17: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 18: Technical Specifications
Vertical Hardware mounting kit for laser array ... LAB-40V Technical Support Address: Service Dept. 3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.) Support (Email): tech@chauvetlighting.com Telephone: (954) 929-1115 - (Press 4) Fax: (954) 929-5560 - (Attention: Service) Website: http://www.chauvetlighting.com LG-40 User Manual 1/10/2007/10:43... - Page 20 NLDJ10G-FB-4LL 4 units vertical style vertical array 1. What is included 2.Assemblying steps...
