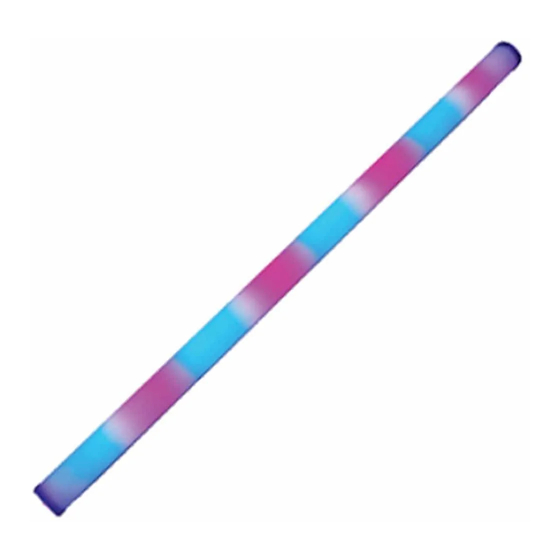

- Page 1 LED-T40A COLORtube™ 2.0 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-11-16/12:32...
-
Page 2: Table Of Contents
IAGRAM OPERATING INSTRUCTIONS ... 6 ... 6 VERVIEW ... 6 TAND LONE PERATION APPENDIX ... 7 ... 7 AINTENANCE ... 7 ETURNS ROCEDURE ... 7 LAIMS ... 8 ECHNICAL PECIFICATIONS ... 8 ECHNICAL UPPORT LED-T40A COLORtube™ 2.0 User Manual 2005-11-16/12:32... -
Page 3: W Hat Is Included
EFORE EGIN What is included COLORtube™ 2.0 1 x LED-T40A COLORtube™ 2.0 1 x LED-PC5A power cord Mounting hardware Manual and Warranty Card Unpacking Instructions Immediately upon receiving a product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
Sound active via LED-CHVA COLORcontroller Automatic via LED-CHVA COLORcontroller Product Overview 4 pin connector used for control signal. 2 pin connector used for power. LED-T40A COLORtube™ 2.0 User Manual 2.0 for operation Mounting hardware provided LED Tube Locking plates Main plate 2005-11-16/12:32... -
Page 5: M Ounting
Connect each tube in series by each matching connector and plug. The 2-pin connector is used for power. The 4-pin connector is used for signal. For every 30 tubes connected you will need a signal booster (LED-BOOSTA) and a power connection (LED-PC5A) to a different AC outlet. LED-T40A COLORtube™ 2.0 User Manual Center plate mounting hole Main plate... -
Page 6: Setup
Please review the Connection Diagram on the page prior for instructions. If using the optional LED-CHVA COLORcontroller™ 2.0, loss of power to the controller will also revert the tube into its stand-alone operation. LED-T40A COLORtube™ 2.0 User Manual 2005-11-16/12:32... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: Technical Specifications
Power Extension 5’ ... LED-EXTP5A Power Cable (Direct to Outlet)... LED-PC5A Signal Cable Extension 15’... LED-SIG15A Signal Cable Extension 5’ ... LED-SIG5A Signal Booster...LED-BOOSTA COLORcontroller™ 2.0 ...LED-CHVA COLORtube™ 2.0 LED Tube ... LED-T40A Technical Support Address: Support (Email): Telephone: Fax: Website:...
