I N S T A L L A T I O N I N S T R U C T I O N S
Interface Bracket for Planar LX55HD-L
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FHB3047/5047/7047
Advertisement
Related Manuals for CHIEF FHB3047
Summary of Contents for CHIEF FHB3047

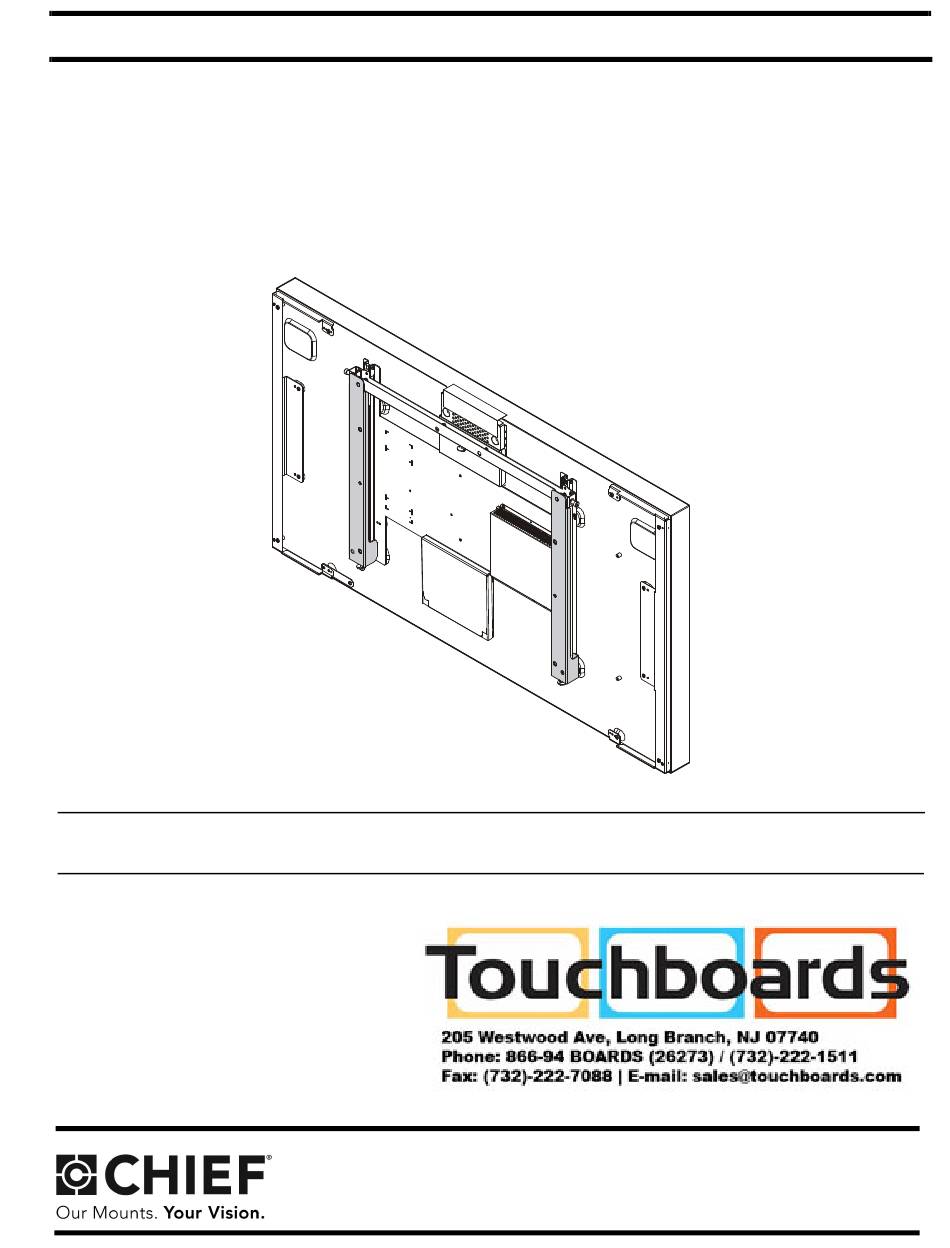

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Interface Bracket for Planar LX55HD-L Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FHB3047/5047/7047...
- Page 2 Milestone assumes serious personal injury or damage to equipment! The no responsibility for accuracy, completeness or sufficiency of FHB3047-5047-7047 is for use ONLY with the Planar the information contained in this document. LX55HD-L model display.
- Page 3 Installation Instructions FHB3047/5047/7047 TOOLS / PARTS FOR INSTALLATION C (2) D (2) M4 x 8mm 13mm A (1) (included) [Left bracket] B (1) [Right bracket] E (1) [Leveler wrench] ASSEMBLY AND INSTALLATION Attach bottom of interface brackets (A and B) to display’s vertical uprights using two M4 x 8mm Phillips head machine screws (D) through front of bracket and into back of bracket.
- Page 4 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
