- Page 1 PAC-W 2600 SH OPERATING MANUAL MONOBLOC AIR CONDITIONER WITHOUT EXTERNAL UNIT...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible out your tasks quickly and safely. damage prior to every use of the device. Do not use any defective devices or device parts. monobloc air conditioner without external unit PAC-W 2600 SH... - Page 3 • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 4 Toute utilisation incorrecte ou non conforme entraîne L’EXTINCTION DE LA GARANTIE ! monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 5 Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. monobloc air conditioner without external unit PAC-W 2600 SH...
-
Page 6: Information About The Device

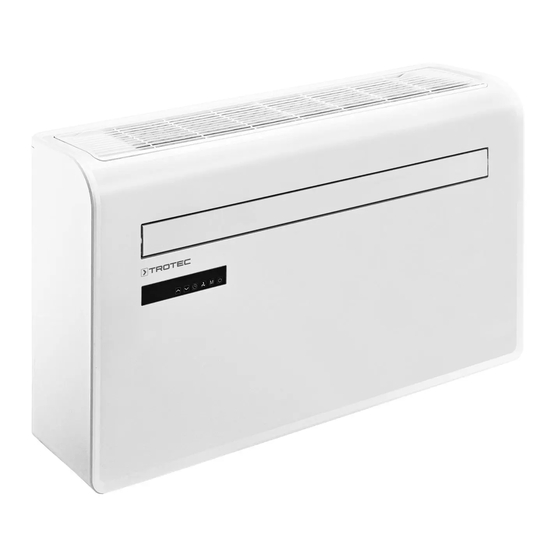

In addition, the device comes with a WiFi app control with additional functions. Designation Air inlet (with air filter) Air outlet with adjustable ventilation flap Control panel Wall mountings Air inlet Condensation drain Air outlet Remote control monobloc air conditioner without external unit PAC-W 2600 SH... -
Page 7: Transport And Storage
• with a cover to protect it from invasive dust, if necessary • Place no further devices or objects on top of the device to prevent it from being damaged. • Remove batteries from the remote control. monobloc air conditioner without external unit PAC-W 2600 SH... - Page 8 • Keep air inlets and outlets as well as the exhaust air hose The device must be installed on a wall facing the connection free. outside of the building. • Make sure that no curtains or other objects interfere with the air flow. monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 9 10. Insert the inner fixing ring of the ventilation cover on the inside of the ventilation opening. 11. Then fold the outer ventilation cover in half. monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 10 Prior to initial start-up, insert batteries in the remote control. external cover in position. Connecting the power cable • Insert the mains plug into a properly fused mains socket. 14. Secure the chains and cut off excess chain links. monobloc air conditioner without external unit PAC-W 2600 SH...
-
Page 11: Operation
Flashes temporarily for as long as cold air protection is required • Heating Night mode LED Illuminated when night mode is activated Fan speed LEDs Fan speed indication On / Off button Switching the device on or off monobloc air conditioner without external unit PAC-W 2600 SH... - Page 12 ð The cooling LED (10) or heating LED (13) and sleep LED (14) are illuminated. 3. In order to switch the night mode off, press the sleep button (27). ð The sleep LED (14) turns off. ð The selected operating mode remains active. monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 13 1. Press the timer button (19) to activate the timer. 2. Press the decrease value (20) or increase value button (21) All settings can also be made via the Trotec Assistent App. The to select the desired number of hours until automatic settings of the timer functions that are operated via the app are switch-on.
-
Page 14: Errors And Faults
Proceed as follows to establish a WiFi connection: ü The device is now in standby mode. • Check the position of the ventilation flaps. They should be 1. Download the Trotec Assistent App and open it on a opened to the maximum. smartphone. - Page 15 Software error of the mainboard Sensor on suction pipe error Water-splash motor error Sensor on discharge pipe error Fan feedback fault Temperature sensor error (outdoor) Water-full protection Fan motor error (outdoor) monobloc air conditioner without external unit PAC-W 2600 SH...
-
Page 16: Maintenance
12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... monobloc air conditioner without external unit PAC-W 2600 SH... - Page 17 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. monobloc air conditioner without external unit PAC-W 2600 SH...
-
Page 18: Technical Annex
• Store the device according to the Transport and storage other objects: chapter. top: 20 cm sides: 10 cm front: 10 cm Weight 38 kg Remote control battery Type LR03 / AAA – 1.5 V Wifi frequency band 2.4 GHz monobloc air conditioner without external unit PAC-W 2600 SH... - Page 19 Circuit diagram monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 20 Overview and list of spare parts Note: The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. monobloc air conditioner without external unit PAC-W 2600 SH...
- Page 21 Plastic sealed DC brushless motor Drain pipe Electronic expansion valve coil Evaporator assembly Chassis stents Electronic expansion valve Water pans Rubber feet Electronic expansion valve nozzles 2 Air supply wind turbines Water management card monobloc air conditioner without external unit PAC-W 2600 SH...
-
Page 22: Disposal
Trotec GmbH hereby declares that the radio system type (PAC-W 2600 SH – Wifi module) complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://hub.trotec.com/?id=44836 monobloc air conditioner without external unit PAC-W 2600 SH... - Page 23 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
