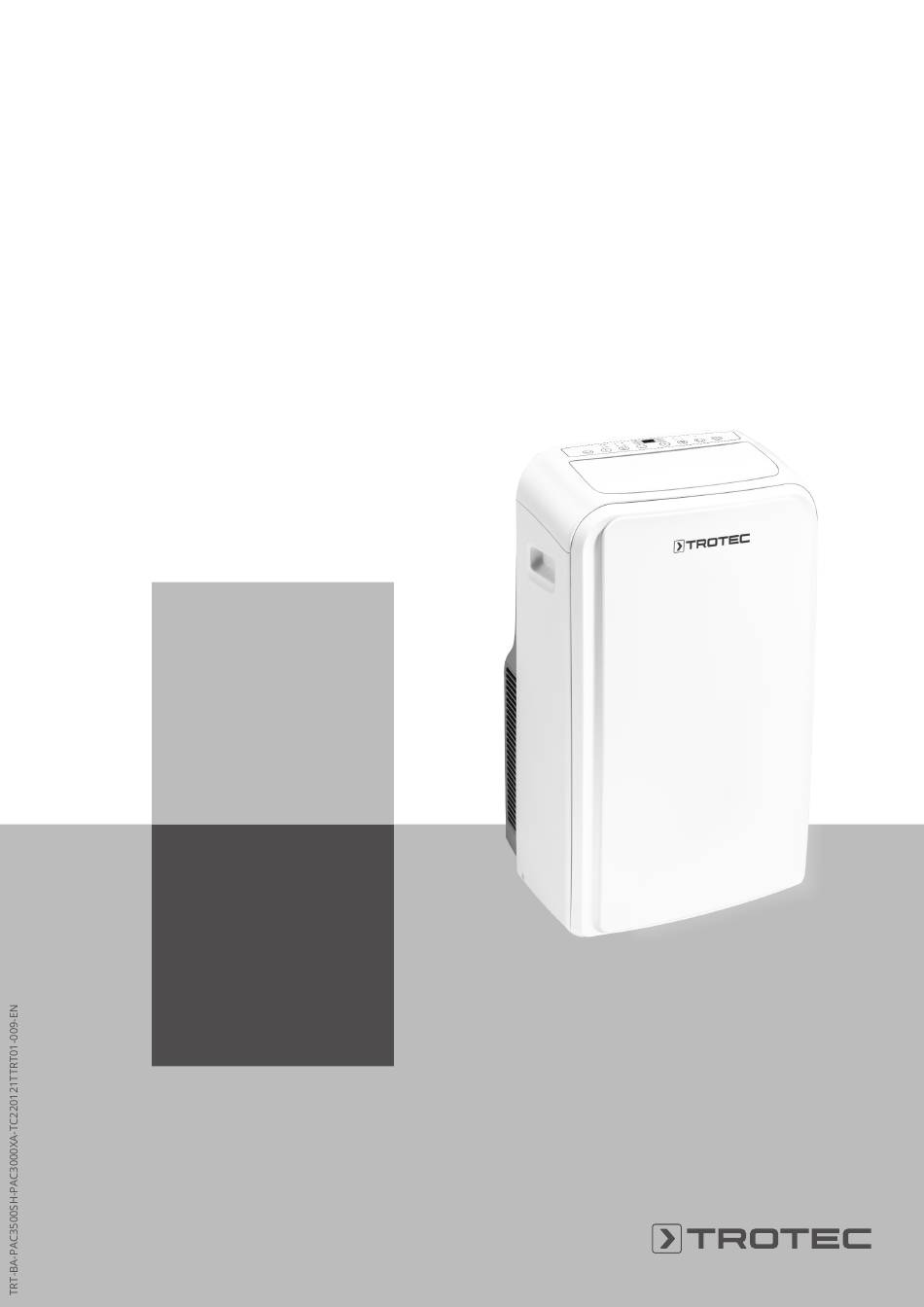

  • Page 1 PAC 3500 SH / PAC 3000 X A+ INSTRUCTIONS LOCAL AIR CONDITIONER...
  • Page 2 • Never insert any objects or limbs into the device. • Do not cover the device during operation. • Do not sit on the device. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 3 • Insert the batteries into the battery compartment according • Do not use any objects other than those authorised by the to the correct polarity. manufacturer to accelerate the defrosting process. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 4 Toute utilisation incorrecte ou non conforme entraîne L’EXTINCTION DE LA GARANTIE ! local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 5 The device is not a toy and does not belong in the hands of children. Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 6 Hose connection with rubber stopper (dehumidification mode) Exhaust air hose connection Hose connection with rubber stopper (heating mode – PAC 3500 SH) Power cable holder 10 Condensate outlet with sealing cap 11 Remote control local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 7 2. Completely remove the packaging. the air flow. 3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 8 Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. • Make sure that the air filter is installed before switching the device on. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 9 For installing the exhaust air hose please observe the following: This could cause a malfunction of the device. Connecting the power cable • Connect the mains plug to a properly secured socket. ≥ 30 cm local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 10 Switching the device on or off button • Heating mode (only PAC 3500 SH) 22 Sleep For switching night mode on or off • Fan only button 23 Fan speed Setting the fan speed button local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 11 Info If the device is operated in a very humid environment, the accumulating condensate must be discharged at regular intervals (see Condensate discharge). local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 12 • If the device is disconnected from the power supply, all settings for automatic switch-on are deleted. • Manually switching the device on disables the automatic switch-on function. • If you select 0.0 hours, the timer will be off. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 13 3. In order to switch the night mode off, press the Sleep button (22) once again. ð The sleep LED (20) turns off. ð The selected operating mode remains active. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 14 For increasing the target temperature indication standby mode button (17 °C to 30 °C) for cooling 25 Decrease value For reducing the target temperature button (17 °C to 30 °C) for cooling local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 15 The compressor may start up with a delay of 3 minutes, as it is provided with an internal protection against direct restart. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 16 The device is loud or vibrates: service. • Check whether the device is set up in a stable and upright position. Condensate is leaking: • Check the device for leaks. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 17 12. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ 13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 18 If the filter is heavily contaminated, clean it with warm water mixed with a neutral cleaning agent. 3. Allow the filter to dry completely. Do not insert a wet filter into the device! local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 19 If you do not intend to use the device for a considerable time: position a suitable collection container under the • Store the device according to the Transport and storage condensate outlet. chapter. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 20 (B): 50 cm 50 cm sides (C): 30 cm 30 cm front (D): 30 cm 30 cm Weight 33 kg 32 kg Remote control battery Type R03 / AAA – 1.5 V Type R03 / AAA – 1.5 V local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 21 PUMP UP FAN P3 P2 BLACK(OR BROWN) N o t e s： POWER OPTIONAL GREEN(OR Y/G) WHITE(OR BLUE) This symbol indicates the element is optional,the actual shape shall prevail local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 22 Overview of spare parts and spare parts list Note: The position numbers of the spare parts differ from those PAC 3500 SH describing the positions of other parts mentioned in this operating manual. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 23 Connecter, air exhaust duct Inside inlet air frame unit assembly Connecter, air exhaust duct 42.1 Indoor air inlet grille Remote controller 42.2 Inside filter Cover of Drain connector (outdoor) local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 24 Overview of spare parts and spare parts list Note: The position numbers of the spare parts differ from those PAC 3000 X A+ describing the positions of other parts mentioned in this operating manual. local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 25 39.1 Outside inlet air frame unit 13.2 Rear panel 39.2 Down filter Connector, air exhaust duct Inside filter Exhaust hose subassembly Indoor air inlet grille Connecter, air exhaust duct local air conditioner PAC 3500 SH / PAC 3000 X A+...
  • Page 26 Have the refrigerant (propane) disposed of appropriately and according to the national regulations by a company with the relevant certification (European Waste Catalogue 160504). local air conditioner PAC 3500 SH / PAC 3000 X A+...
