New England Arbors London Assembly Instructions

www.newenglandarbors.com
www.newenglandarbors.co.uk
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Arches (2) -
10747-1
2. Arch Rafters (5)
- 10756
3. Post Caps (4) -
10748-1
4. Left Posts (2) -
10749-1
5. Right Posts (2) -
10750-1
6. Side Panel Top Horizontal Rails (2) -
7. Side Panel Bent Vertical Spindles (4)
8. Side Panel Middle Straight Vertical Spindles (2)
9. Side Panel Middle Horizontal Rail (2)
10. Side Panel Bottom Horizontal Rail (2)
11. Ground Mounting Extensions (4) -
12. 1 1/4 in (32 mm) Self Auguring Screws (34) -
13. 5/8 in (16 mm) Self Auguring Screws (8) -

Tools You Will Need

• Cordless Drill
• Level
• Stool or Short Ladder
• Shovel
• Cement (For Installation)

Assembly Time

• Approximately 30 minutes (2 People)

General Information

Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10 ft. x 8 ft. (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.

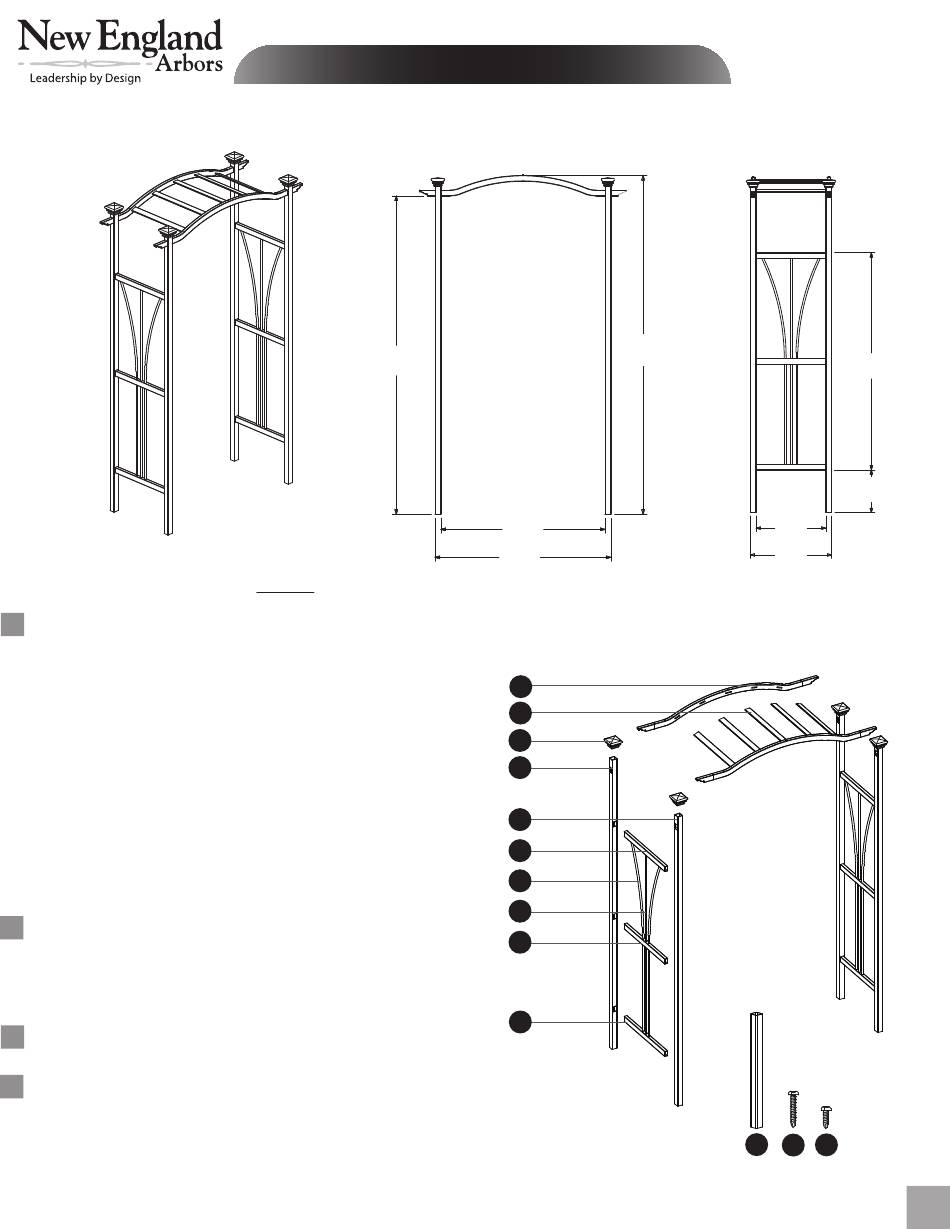

A S S E M B LY I N S T R U C T I O N S

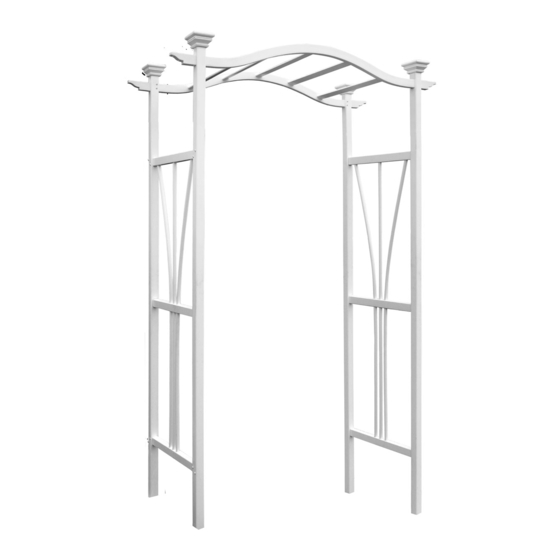

The London Arbor / Arch
78.5 in
(199 cm)
10751-1
Length 56.5 in. (144 cm) - 10752-1
Length 55.4 in. (141 cm) -10753-1
- 10754-1
10755-1
10845
20047
20016
83.5 in
(112 cm)
42 in
(107 cm)
45 in
(114 cm)
1
2
3
4
5
6
7
8
9
10
56 in
(142 cm)
8 in (20 cm)
18 in
(46 cm)
21 in
(53 cm)
11 12 13
Not to Scale
1
V3.2/072717
