Biotage V-10 Touch Quick Manual

Quick Guide UI336.v2
Biotage V-10 Touch Quick Guide
®
Success with Evaporation

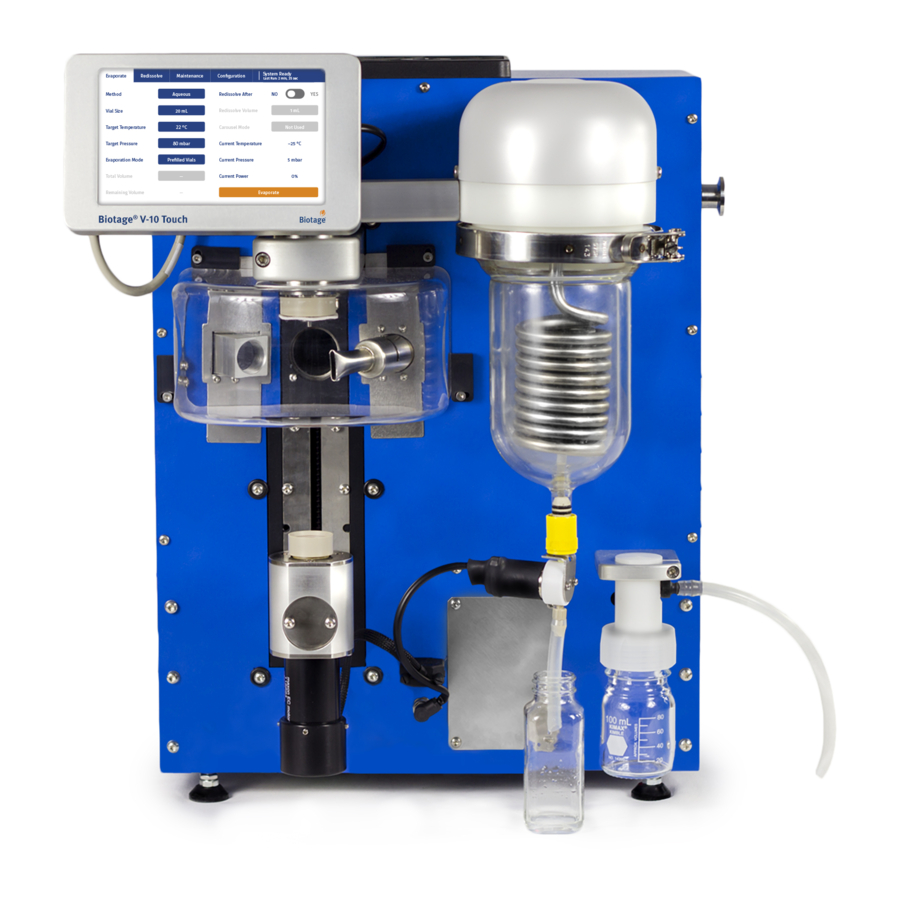

Biotage V-10 Touch is a solvent evaporator system for applications in organic and
®
inorganic chemistry. The evaporator is operated via its touch screen.
Set Up Your Vial

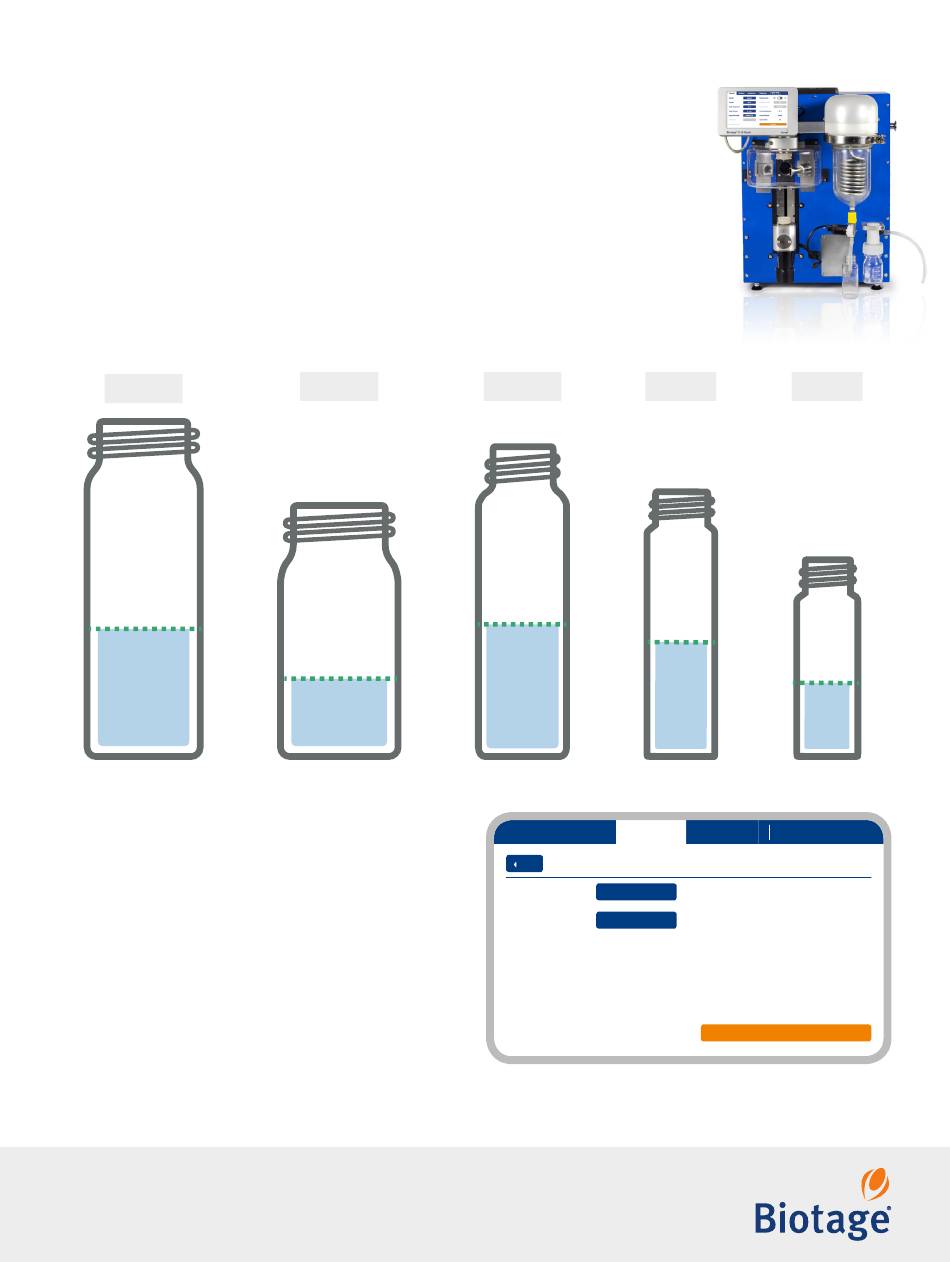

Shown in actual size, simply hold your prepared vial up to the
photo to check for proper filling.
30 mL Vial
29 mm
(12 mL)
Defrosting Condenser
As the condenser accumulates ice it becomes less efficient. If
ice has built up, a defrost operation must be performed. Do so
as often as required. After the defrost operation is completed,
the condenser will be drained. A drain will occur even if you
cancel the defrost operation before it is completed.
»
Select Maintenance from the menu bar
»
Press Defrost
»
Press the Defrost Time field and enter the defrost time
Cleaning
Clean the exterior of the system as often as required. If the
touch screen has been contaminated by chemicals, it must be
cleaned immediately. Please see Maintenance section in the
User Manual for further details.
© Biotage 2016
20 mL Vial
18 mm
(8 mL)
Biotage
16 mL Vial 8 mL Vial
30 mm
26 mm
(8 mL)
(4 mL)
Evaporate Redissolve Maintenance
Back
Defrost
Defrost Time 15 min
Drain Time 1 min
Remaining Time --
V-10 Touch Quick Guide | Page 1
®
4 mL Vial
17 mm
(2 mL)
System Ready
Configuration
Last Run: 2 min, 35 sec
Defrost
