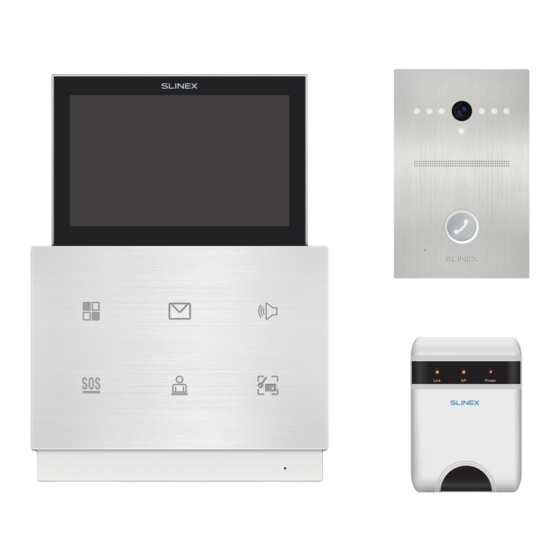

- Page 1 INNOVATION IP video intercom kit DIRECT with call redirection to the mobile app Link Power Zian XR-30IP VZ-50 User manual Thank you for the choice of our equipment { Design. Uniqueness. Innovation }...
-
Page 2: Table Of Contents
This manual can contain some inaccuracy or misprint. The owner reserves the right to 1.2 Speci cation..................................3 make corrections to the information described in the user manual and device package. 1.3 Description ..................................4 The last revision of this manual is available on www.slinex.com 2. Uma outdoor panel..................................5 Safety instructions 2.1 Package....................................5 Read and keep that manual. -
Page 3: Zian Indoor Monitor
INNOVATION { Design. Uniqueness. Innovations } DIRECT 1. Zian indoor monitor 1.3 Description 1.1 Package Zian indoor monitor − 1 pc. Wall mounting bracket − 1 pc. Connection wires − 7 pcs. Mounting screws and wall anchors − 1 pkg. 28 mm (1.1″) 1.2 Speci cation 185 mm (7.3″) -
Page 4: Uma Outdoor Panel
INNOVATION { Design. Uniqueness. Innovations } DIRECT 2. Uma outdoor panel 2.3 Description 2.1 Package Outdoor panel − 1 pc. Flush mounting box − 1 pc. Connection wires − 3 pcs. Mounting key, screws and wall anchors − 1 pkg. 2.2 Speci cation 28 mm (1.1″) 110 mm (4.3″) -
Page 5: Xr-30Ip Converter
INNOVATION { Design. Uniqueness. Innovations } DIRECT 3. XR-30IP converter 3.3 Description 3.1 Package XR-30IP converter – 1 pc. Power supply – 1 pc. Connection wires – 2 pcs. Mounting screws and nuts – 1 pkg. User manual – 1 pc. Link Power 22 mm (0.9″) -
Page 6: Description
INNOVATION { Design. Uniqueness. Innovations } DIRECT 4. VZ-50 adapter 4.3 Description 4.1 Package VZ-50 adapter – 1 pc. Connection wires – 3 pcs. 4.2 Speci cation 15 mm (0.59″) 42 mm (1.65″) XR-30IP connector Video Ground Audio Power Video system PAL/NTSC Zian indoor monitor connector Standby mode power consumption... -
Page 7: Installation
INNOVATION { Design. Uniqueness. Innovations } DIRECT Zian 5. Installation Diagram 2. Zian, Uma, XR-30IP and VZ-50 system interconnection. 5.1 Cable requirements Disconnect all power cables before devices installation. Devices can be connected with such cable types depends on the distance between indoor monitor and outdoor panel: Ground Video... - Page 8 11. Wired network setup includes next steps: 1) Enter «GooglePlay» (for Android) or «AppStore» (for iOS) and search for «Slinex» application, then install this application on your mobile device. 2) Connect mobile device to the local network, which is XR-30IP connected.
-
Page 9: Zian Operation
Note: Press «Unlock» button to open lock connected to the current For the iOS mobile devices, go to «Settings» → «Noti cations», then click «Slinex» icon and make sure that door panel all the noti cation are turned on: Allow noti cations;... -
Page 10: Outdoor Panel Image View
INNOVATION { Design. Uniqueness. Innovations } DIRECT 7.2 Outdoor panel image view 8. Limited warranty Standby mode Standby mode Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. Monitor will display Warranty period is 12 months from the moment of the product purchasing (warranty period could be Press «Monitor»...
