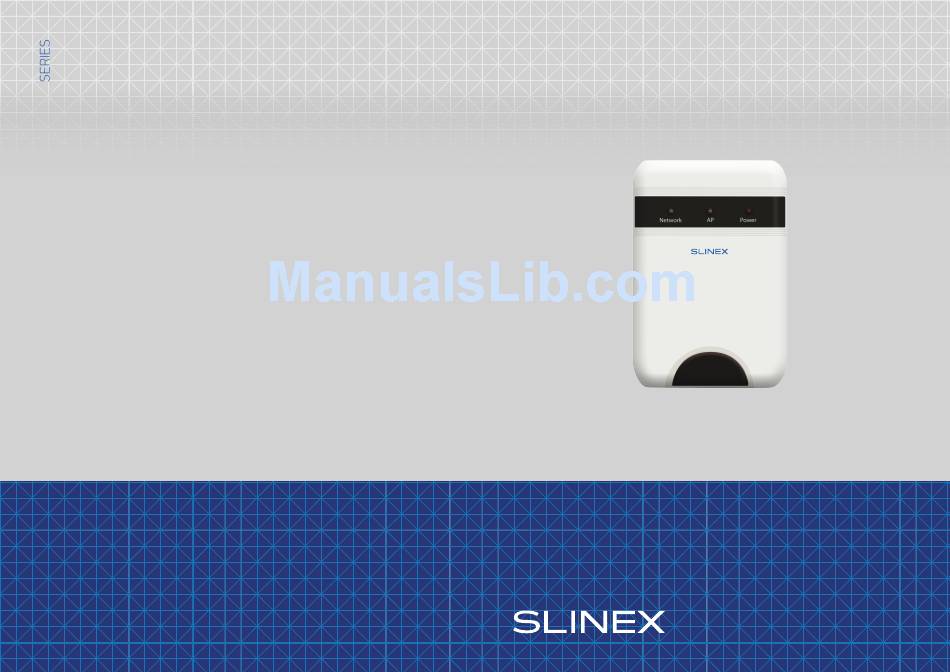

- Page 1 XR-30IP UNIQUE IP converter DIRECT User manual Thank you for the choice of our equipment { Design. Unique. Innovation }...
- Page 2 One door panel and door monitor can be connected to XR-30IP converter. It provides a possibility to use this converter in systems where door panel and monitor are already installed for more convenient communication with the visitors.
- Page 3 UNIQUE { Design. Unique. Innovation } DIRECT 1. Package 4. Description XR-30IP converter – 1 pc. Power supply – 1 pc. Connection wires – 2 pcs. Mounting screws and nuts – 1 pkg. User manual – 1 pc. 2. Speci cation...
- Page 4 Diagram 1. XR-30IP door panel and monitor connection. 5.1 Cable requirements Disconnect all power cables before device installation. XR-30IP connects into breakup between door monitor and door panel. Lock Lock power This device can be connected with such cable types depends on the distance between door monitor and...
- Page 5 6. Software Diagram 3. XR-30IP network interface connection by wireless method. 6.1 Wired network connection steps Use twisted pair CAT5 or CAT6 cable to connect XR-30IP converter to the local network according to the diagram on page 6. Router Wired network setup includes next steps: 1) Enter «GooglePlay»...
- Page 6 Wireless Wi-Fi network connection should be made according to Diagram 3. Wireless network setup includes next steps: 1) Enter «Google Play Market» (for Android) or «App Store» (for iOS) and search for «Slinex» application, then install this application on your mobile device.
- Page 7 UNIQUE { Design. Unique. Innovation } DIRECT Push to start talk Push an hold to with the visitor talk to the visitor...
- Page 8 For the iOS mobile devices, go to «Settings» → «Noti cations», then click «Slinex» icon and make sure that In the event a product has been discontinued, manufacturer shall either repair the product, o er to replace all the noti cation are turned on: it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current...
