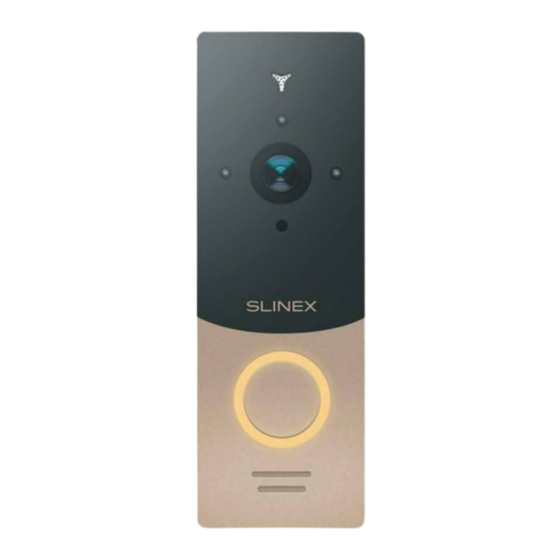

- Page 1 ML-20IP INNOVATION IP video door station DIRECT User manual Thank you for { Design. Uniqueness. Innovations } choosing our equipment...
-
Page 2: Table Of Contents
This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. 4. Installation......................................5 The last revision of this manual is available on www.slinex.com 4.1 Cable requirements..............................5 4.2 Schematic diagrams..............................5 Safety instructions 4.3 Unit mount ..................................7... -
Page 3: Package
INNOVATION { Design. Uniqueness. Innovations } DIRECT 1. Package 3. Description Video door station ML-20IP – 1 pc. Angle bracket – 1 pc. Surface mount bracket – 1pc. Rain shield – 1 pc. Flush mount bracket – 1 pc. Power supply – 1 pc. External Wi-Fi antenna –... -
Page 4: Installation
INNOVATION { Design. Uniqueness. Innovations } DIRECT 4. Installation Diagram 2. ML-20IP network wired connection by twisted pair cable 4.1 Cable requirerments Disconnect all power cables before device installation. This device can be connected with such cable types: ) Use 2- or 4-wire cable for the video door station power and electronic lock power Router Internet •... -
Page 5: Unit Mount
Full manual on «Cloud Call» application you can nd on www.slinex.com 5) Then x surface mount bracket over the angle bracket by two bolts from the kit. 6) Connect all communication wires and x the door station on the surface mount bracket by one bolt from 5.1 Creating new account... -
Page 6: Wireless Wi-Fi Network Connection Steps
INNOVATION { Design. Uniqueness. Innovations } DIRECT 5.3 Wireless Wi-Fi network connection steps 1) Connect mobile device into the Wi-Fi network you want to connect outdoor panel; 2) Disable 3G/4G internet connection on your mobile device; 3) Press «CONNECT NEW DEVICE» button, then choose «NEW» check box and press «CONFIRM» button; 4) On the outdoor panel enter into «Access point»... - Page 7 INNOVATION { Design. Uniqueness. Innovations } DIRECT 7) Fill in device information: 5.4 Operation Device UID: unique identi cation number of the device (already lled); Main bar Device bar Device Name: any name you like; Password: 888888 (by default); Share then press «CONFIRM»...
- Page 8 INNOVATION { Design. Uniqueness. Innovations } DIRECT 5.6 RTSP support. Full screen Image quality: mode HD or SD Th ML-20IP door station supports video streaming through the RTSP (Real Time Streaming Protocol). This function allows us to view or record video on the PC or NVR (Network Video Recorder). Speaker volume/ Take a Record...
- Page 9 INNOVATION { Design. Uniqueness. Innovations } DIRECT 6. Limited warranty Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. Warranty period is 12 months from the moment of the product purchasing (warranty period could be extended up to 24 months or more, depending on the local regulations).
