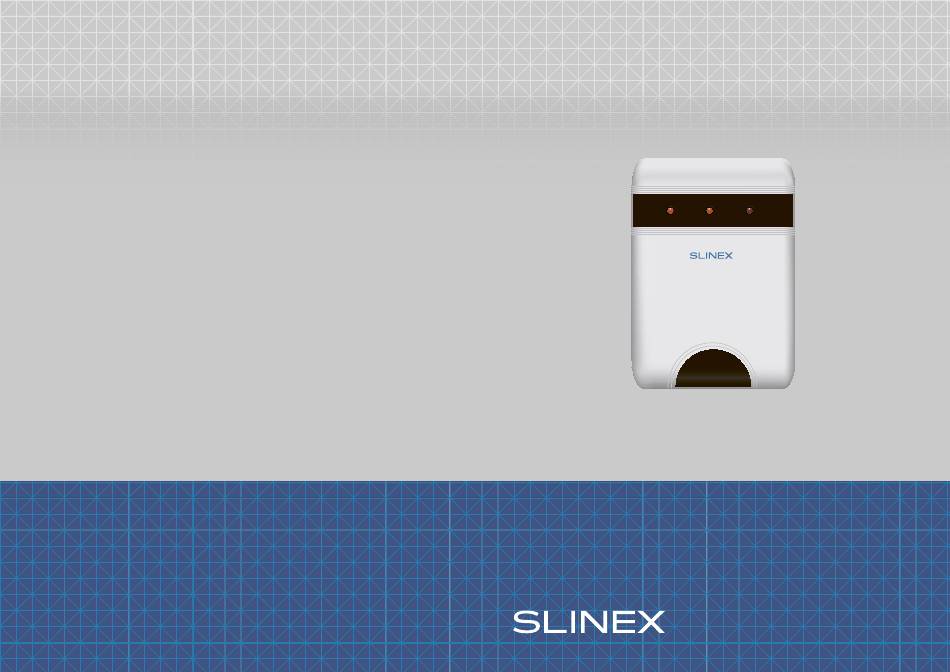

- Page 1 XR-30IP IP converter SERIES ACCESSORIES Link Power User manual Thank you for choosing our equipment { Design. Uniqueness. Innovations }...
-
Page 2: Table Of Contents
Document recording and copying is strictly denied without owner permission. One door panel and door monitor can be connected to XR-30IP converter. It provides a possibility to use this converter in systems where door panel and monitor are already installed for more convenient communication with the visitors. -
Page 3: Package
SERIES ACCESSORIES { Design. Uniqueness. Innovations } 1. Package 4. Description XR-30IP converter – 1 pc. Power supply – 1 pc. Connection wires – 2 pcs. Mounting screws and nuts – 1 pkg. User manual – 1 pc. Link Power 2. -
Page 4: Installation
Diagram 1. XR-30IP door panel and monitor connection. 5.1 Cable requirements Disconnect all power cables before device installation. XR-30IP connects into breakup between door monitor and door panel. Lock Lock power This device can be connected with such cable types depends on the distance between door monitor and... -
Page 5: Unit Mount
1) Mark and drill two halls in the wall. 2) Take two nuts from the kit and hammer them into the drilled halls. 3) Fix XR-30IP on the wall by the screws from the kit. 4) Connect all communication wires to the IP converter. -
Page 6: Wireless Wi-Fi Network Connection Steps
SERIES ACCESSORIES { Design. Uniqueness. Innovations } 6.3 Wireless Wi-Fi network connection steps 1) Connect mobile device into the Wi-Fi network you want to connect the monitor; 2) Disable 3G/4G internet connection on your mobile device; 3) Press «CONNECT NEW DEVICE» button, then choose «NEW» check box and press «CONFIRM» button; 4) On the converter enter into «Access point»... -
Page 7: Operation
SERIES ACCESSORIES { Design. Uniqueness. Innovations } 6.4 Operation 7) Fill in device information: Main bar Device bar Device UID: unique identi cation number of the device (already lled); Device Name: any name you like; Password: 888888 (by default); Share Tap on the device device with then press «CONFIRM»... -
Page 8: Noti Cation Messages
SERIES ACCESSORIES { Design. Uniqueness. Innovations } 7. Limited warranty Full screen Image quality: mode HD or SD Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety Speaker volume/ instructions described in that manual. Take a Record microphone...
