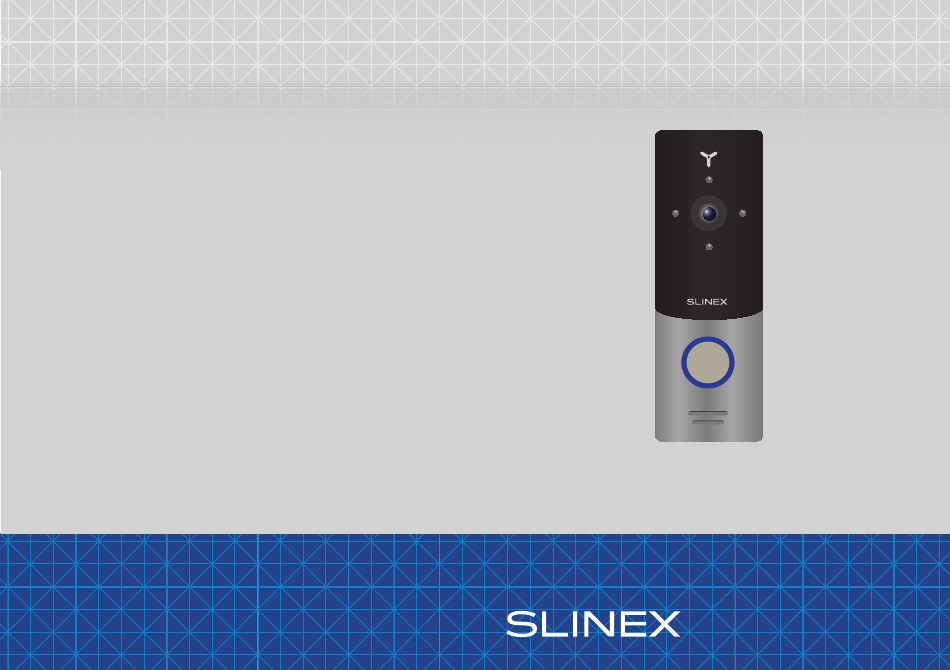

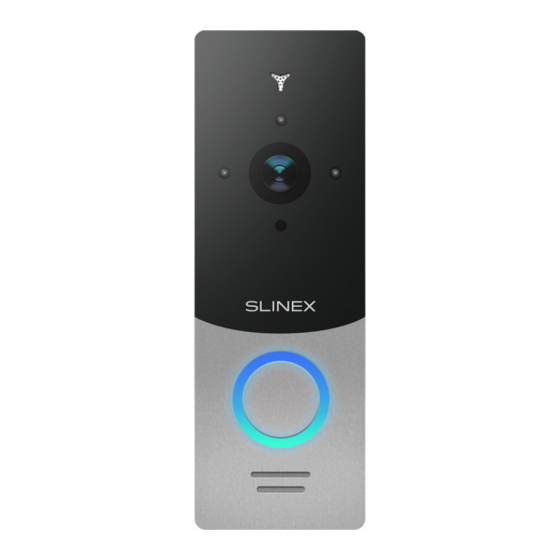

- Page 1 ML-20HR SERIES video door panel ACCESSORIES User manual Thank you for choosing our equipment { Design. Uniqueness. Innovations }...
- Page 2 This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in that user manual and device package. The last revision of this manual is available on www.slinex.com Rev. 2.0...
- Page 3 SERIES { Design. Uniqueness. Innovations } ACCESSORIES Table of contents 1. Package ML-20HR door panel − 1 pc. 1. Package ..........................4 Wall mounting bracket − 1 pc. 2. Speci cation .........................4 Angle bracket − 1 pc. 3. Description..........................6 Rainshield − 1 pc.
- Page 4 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 3. Description 24 mm 45 mm ML-20HR wire colors Power, +12 V Black Ground (GND) Microphone Yellow Video Video camera White Audio Night infrared backlight Call button Brown COM relay contact Speaker Blue...
- Page 5 Input Camera power 4) Fix angle bracket on the wall by two screws from the kit; (Red & White) ML-20HR 5) Fix wall mounting bracket on the angle bracket by two screws from the kit; Door 2 CCTV 2 Output...
- Page 6 SERIES { Design. Uniqueness. Innovations } ACCESSORIES 6. Video camera mode setting CVBS → AHD → CVI 7. Limited warranty Door panel video camera can work in three basic modes: analog (CVBS), AHD Manufacturer guarantees product normal functioning during the warranty and CVI (CVBS mode activated by default).
- Page 7 SERIES { Design. Uniqueness. Innovations } ACCESSORIES not cover under warranty, any damages or losses of any kind whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with determining the source of system problems or removing, servicing or installing products.
