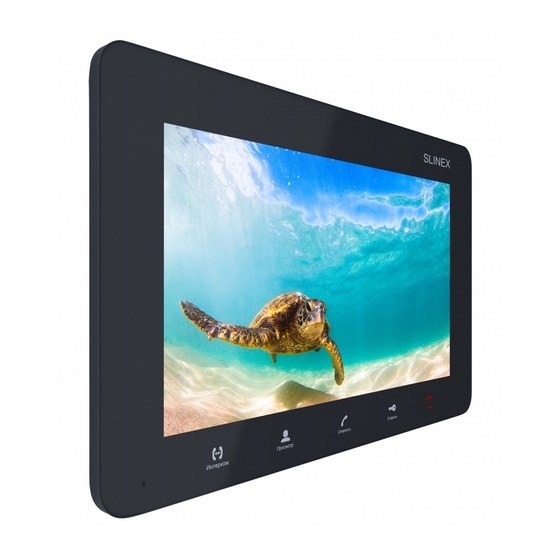

- Page 1 SM-07M UNIQUE 7” video door phone DIRECT User manual Thank you for the { Design. Uniqueness. Innovation } choice of our equipment...
- Page 2 This manual can contain some inaccuracy or misprint. The owner reserves the right to 3. Description....................................4 make corrections to the information described in the user manual and device package. 4. Installation....................................5 The last revision of this manual is available on www.slinex.com 4.1 Cable requirements..............................5 Safety instructions 4.2 Schematic diagrams..............................6 Read and keep that manual.
- Page 3 UNIQUE DIRECT { Design. Uniqueness. Innovation } 1. Package 3. Description SM-07M door monitor − 1 pc. Wall mounting bracket − 1 pc. Connection wires − 6 pcs. Mounting screws and nuts − 1 pkg. User manual − 1 pc. 2.
- Page 4 UNIQUE DIRECT { Design. Uniqueness. Innovation } 4.2 Schematic diagrams 4. Installation SM-07M door panels, cameras and locks connection. CCTV power 4.1 Cable requirements supply Disconnect all power cables before device installation. +12 V This device can be connected with such cable types depends on the distance between door monitor and door panel: CCTV 1 Video...
- Page 5 UNIQUE DIRECT { Design. Uniqueness. Innovation } 4.3 Unit mount 5. Operation 1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line. 5.1 Incoming call 2) Mark and drill four halls in the wall. Standby mode 3) Take four nuts from the kit and hammer them into the drilled halls.
- Page 6 UNIQUE DIRECT { Design. Uniqueness. Innovation } Notes: 5.2 Door panel and camera image view 1) If only one door panel connected to the monitor then you can escape monitoring mode by pressing «Monitor» button one more time. (all other sources of video signal should be disabled in the monitor Standby mode settings).
- Page 7 UNIQUE DIRECT { Design. Uniqueness. Innovation } 6.1 Melody settings 5.4 Intercom Enter monitor settings in the way like it described on the previous page: Two monitors connected into one system are used. Press «Intercom» Melody starts button to start Ring select Standby mode ringing...
- Page 8 UNIQUE DIRECT { Design. Uniqueness. Innovation } 7. Limited warranty 6.4 System settings Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. Unlock time Mode Master Warranty period is 12 months from the moment of the product purchasing (warranty period could be Door 2 extended up to 24 months or more, depending on the local regulations).
