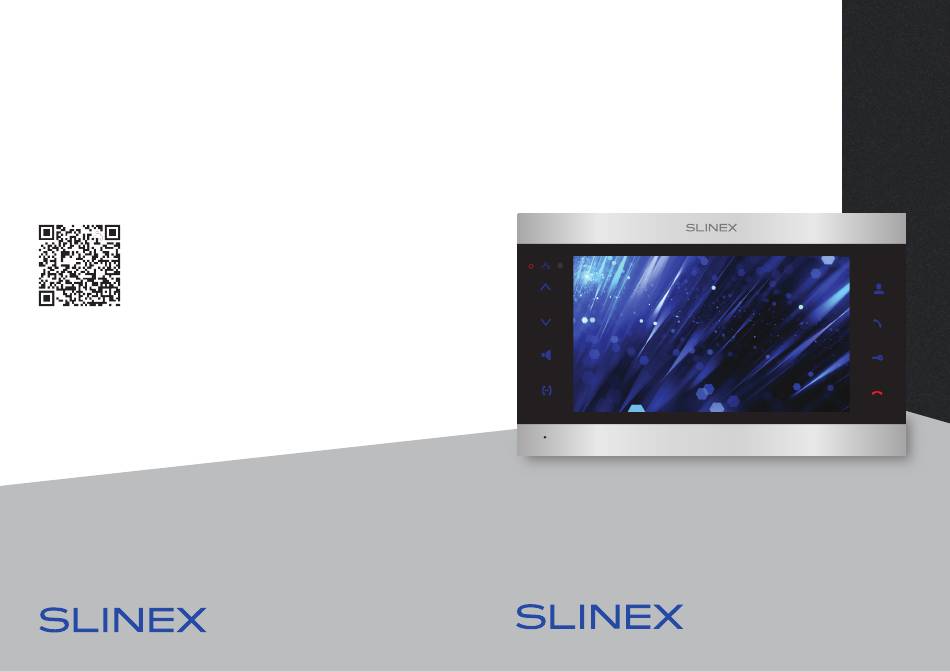

- Page 1 Design. Uniqueness. Innovations Design. Uniqueness. Innovations SL-10IPT HD 10” video intercom with touch screen Technical support Thank you for User manual choosing our equipment...
-
Page 2: Table Of Contents
This manual can contain some inaccuracy or misprint. The owner reserves the right to 3. Description..................................... make corrections to the information described in the user manual and device package. 4. Installation....................................The last revision of this manual is available on www.slinex.com 4.1. Cable requirements............................. 4.2. Schematic diagrams............................Safety instructions 4.3. -
Page 3: Package
SL-10IPT HD 3. Description 1. Package SL-10IPT HD outdoor monitor − 1 pc. Wall mounting bracket − 1 pc. RJ-45 connector − 1 pc. Connection wires − 1 pkg. Mounting screws and nuts − 1 pkg. User manual − 1 pc. -
Page 4: Installation
4.2. Schematic diagrams 4.1. Cable requirements Diagram 1. SL-10IPT HD, outdoor panels and cameras connection. Disconnect all power cables before device installation. able type that is used for device connection depends on the distance between the last indoor monitor in... -
Page 5: Unit Mount
SL-10IPT HD Diagram 2. SL-10IPT HD and Sonik 7 system connection. 4.3. Unit mount 1) Take the surface mount bracket from the kit and place it on 150-160 cm height. 2) Mark and drill four halls in the wall. 3) Take four anchors from the kit and hammer them into the drilled halls. -
Page 6: Operation
SL-10IPT HD 5.2 Door panel and camera image monitoring 5. Operation Standby mode 5.1 Incoming call Standby mode Press «Monitor» Monitor will show button on the the image from the monitor rst door panel Visitor presses call button Visitor presses call button... -
Page 7: Incoming Call Redirection
SL-10IPT HD Notes: 5.4 Intercom If several monitors are connected into one system, the user can view the image from outdoor panels Two monitors connected into one system are used. using any monitor inside this system. The image will be transferred from the «Master» monitor outdoor panels to the «Slave»... -
Page 8: Tool Bar
SL-10IPT HD 6.2 Tool bar 1. Click left mouse button on icon on the tool bar to enter main settings Click right mouse button in standby or monitoring mode or swipe any direction across the touch screen to con guration menu. - Page 9 SL-10IPT HD Main menu has following structure: Network → Network → DHCP enable – IP address receiving type (dynamic if this option enabled) System → General → System time – current date and time → IP address – device IP address →...
- Page 10 SL-10IPT HD Settings → Network → Net service → Wi-Fi → SD info – SD card info Advanced → SD manage – format or recover SD card User can connect monitor to the local network in two ways: wired or wireless Wi-Fi connection. We →...
- Page 11 SL-10IPT HD Press «Add» button to search for corresponding records in the video archive and adding them to the Record backup list. Press «Remove» button to reset the backup list; Record Backup 4) Mark the records in the list to add them into the backup file;...
-
Page 12: Playback
SL-10IPT HD 6.2.2. Playback 6.2.3. Manual snapshot/video recording Swipe any direction across the screen to enable the tool bar, then press icon to enter playback There two types of recording in the monitor – manual recording or schedule-based recording (including motion detection). -
Page 13: Video Signal Type
SL-10IPT HD Protocol – IP camera data exchange protocol; Remote device. Stream – Main or sub stream; Added device Device address– camera IP address; Port – port number; Channel IP address Protocol Edit Delete Connection User name – IP camera login user name;... -
Page 14: Network Connection Settings
SL-10IPT HD 7.3. Network connection settings 7.2. Network security settings Monitor remote access can be carried out through the Internet or local network connection. Client Make following steps to perform browser setup for the monitor remote access: computer IP address must use the same network segment with the monitor. In global network the only Open Internet Explorer browser and press «Tools»... -
Page 15: Installing Browser Plugin
SL-10IPT HD Web interface main page has following buttons and panels: 2) Set appropriate IP address from the current network segment, subnet mask and gateway in the monitor settings (Con guration → Network → Basic). In the current example IP address can be set as 192.168.1. -
Page 16: Playback
SL-10IPT HD Right panel has two bookmarks: «Image» and «other». «Image» bookmark: – brightness setting; – contrast setting; – color setting; – color temperature setting; – restore default settings; Default «Other» bookmark: – monitor restart; Reboot – change web interface aspect ratio from 3:4 to 16:9 and vice versa. - Page 17 SL-10IPT HD 7.5.2. System log Press «System log» bookmark on the top of web interface main page. Here you can check system and alarm events log: Alarm settings (Device con guration → Alarm) Press «Alarm» icon in «Device con guration» bookmark menu to enter alarm settings. Here you can see two icons: •...
-
Page 18: Device Con Guration
SL-10IPT HD Device con guration → Alarm → Video motion System settings (Device con guration → System) Press «System» icon in «Device con guration» bookmark menu to enter system settings. Here you can see eight icons: • General – date and time, language, overwriting, input signal type and screensaver settings;... - Page 19 SL-10IPT HD Device con guration → System → Network Device con guration → System → General Device con guration → System → Net service Device con guration → System → Encode...
- Page 20 SL-10IPT HD Device con guration → System → GUI display Device con guration → System → Door service → Basic Device con guration → System → Digital channels Device con guration → System → Door service → Ring...
- Page 21 SL-10IPT HD Device con guration → System → Channel type Device con guration → Advanced → SD manage Advanced settings (Device con guration → Advanced) Press «Advanced» icon in «Device con guration» bookmark menu to enter advanced settings. Here you can see six icons: •...
- Page 22 SL-10IPT HD Device con guration → Advanced → Account Device con guration → Advanced → Defualt Device con guration → Advanced → Upgrade Device con guration → Advanced → Auto maintain...
- Page 23 SL-10IPT HD Device information (Device con guration → Info) Device con guration → Info → Log Press «Info» icon in «Device con guration» bookmark menu to enter device information menu. Here you can see three icons: • SD info – SD card status, capacity and free space;...
-
Page 24: Local Con Guration
Local con guration → Con gurtion manager → Normal setting Below you can nd basic steps how to add new device to «Cloud Call» application. Full manual on «Cloud Call» application you can nd on www.slinex.com 8.1 Creating new account 1) Start «Cloud Call»... -
Page 25: Operation
SL-10IPT HD 8.3 Operation Main bar Device bar Share Tap on the device device with image to start other monitoring account Disable Talk with monitoring the visitor Hang on 5) Tap on UID in the left column, corresponding to the monitor sticker or press «QR CodeScan» button... -
Page 26: Noti Cation Messages
SL-10IPT HD 8.5. Sharing with other devices Full screen Image quality: mode HD or SD The account, device was added for the first time, is master account. This account has master permissions and can change all the settings. If several mobile phones are going to be used with the same device then... -
Page 27: Limited Warranty
SL-10IPT HD 9. Limited warranty Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. Warranty period is 12 months from the moment of the product purchasing (warranty period could be extended up to 24 months or more, depending on the local regulations).
