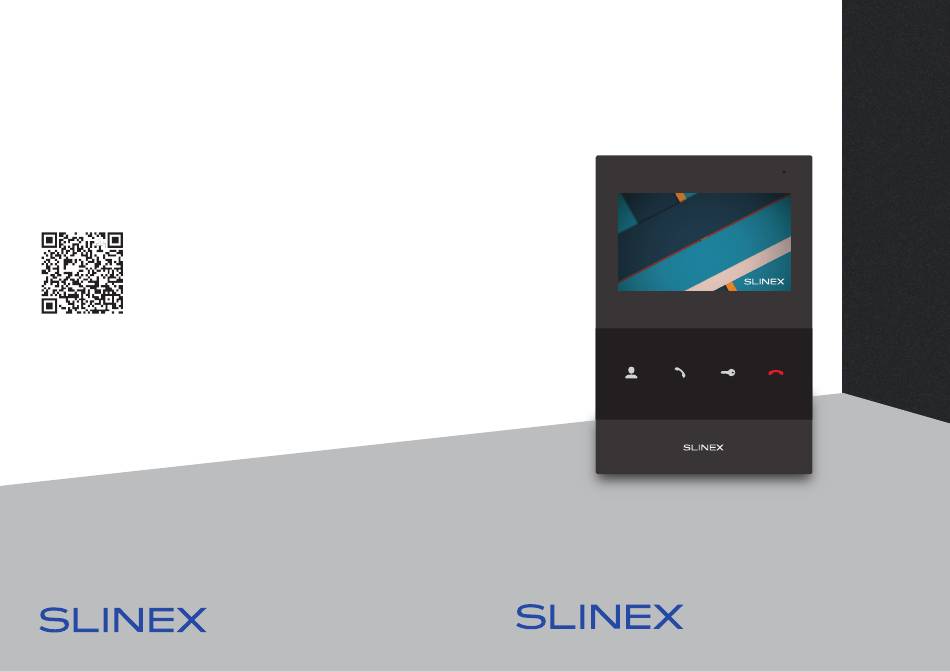

- Page 1 Design. Uniqueness. Innovations Design. Uniqueness. Innovations SQ-04M 4” video intercom Technical support User manual Thank you for choosing our equipment...
-
Page 2: Table Of Contents
This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. 3. Description..................................... The last revision of this manual is available on www.slinex.com 4. Installation....................................4.1. Cable requirements............................. -
Page 3: Package
SQ-04M 3. Description 1. Package SQ-04M indoor monitor − 1 pc. Wall mounting bracket − 1 pc. Connection wires − 1 pkg. Mounting screws and nuts − 1 pkg. User manual − 1 pc. 2. Speci cation 119 mm Display Power switch «Monitor»... -
Page 4: Cable Requirements
4.2. Schematic diagrams 4.1. Cable requirements Diagram 1. SQ-04M door panels, cameras, locks and TV connection. Disconnect all power cables before device installation. able type that is used for device connection depends on the distance between the last indoor monitor in... -
Page 5: Unit Mount
SQ-04M 4.3. Unit mount Diagram 2. SQ-04M system connection. 1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line. 2) Mark and drill four halls in the wall. 3) Take four nuts from the kit and hammer them into the drilled halls. -
Page 6: Operation
SQ-04M 5. Operation 5.2. Door panel and camera image view 5.1. Incoming call Standby mode Standby mode Monitor will display Press «Monitor» the image from the button on the rst door panel Visitor presses call button Visitor presses call button monitor (monitoring time –... -
Page 7: Incoming Call Redirection
SQ-04M Notes: 5.4. Intercom 1) If several monitors are connected into one system, user can view the image from the outdoor panels Two monitors connected into one system are used. and cameras on any monitor inside this system. The image will be transferred from the «Master»... -
Page 8: Main Menu
SQ-04M Release date − date of software release; 6.1. Main menu Format SD − micro SD card formatting. Please format microSD card before use it. Recommended to use microSD cards of the 6-th class and above; Format flash − internal memory formatting;... -
Page 9: Ring Settings
SQ-04M Main menu Software version: 3.1.0.1 Main menu Release date: 2020-12-23 Door 1 Door 2 Format SD Ring System Outdoor panel melody: Format flash Update Backup pictures Reboot Ring select Information 6.3. Ring settings Press «Ring» icon in the main menu to enter melody and volume settings. -
Page 10: Alarm Settings
SQ-04M Record mode: «Snapshot» – take snapshot while incoming call or manually; CAM1 − «On» or «O », include or exclude first CCTV camera from the monitoring list; «Record» – record video while incoming call or manually; CAM2 − «On» or «O », include or exclude second CCTV camera from the monitoring list;... -
Page 11: Image Parameters Setting
SQ-04M Software motion detector can observe and detect motion without any external sensors using any camera image changes with the time. Camera power that is used for motion detection should be constantly on to let the monitor observe image changes and detect it. - Page 12 SQ-04M Every video source has its own image settings: Press «Record files» or «Snapshot files» icon to enter snapshots or records playback menu then choose the Brightness – parameter range from 0 to 50, 25 used by default; le to play by moving joystick up or down.
-
Page 13: Limited Warranty
SQ-04M 7. Manual and automatic recording 9. Limited warranty User can take manual snapshots or record video during monitoring outdoor panel or CCTV camera. Manufacturer guarantees product normal functioning during the warranty period if the user keeps all Press joystick on the right side of the monitor to start manual recording then press joystick safety instructions described in that manual.
