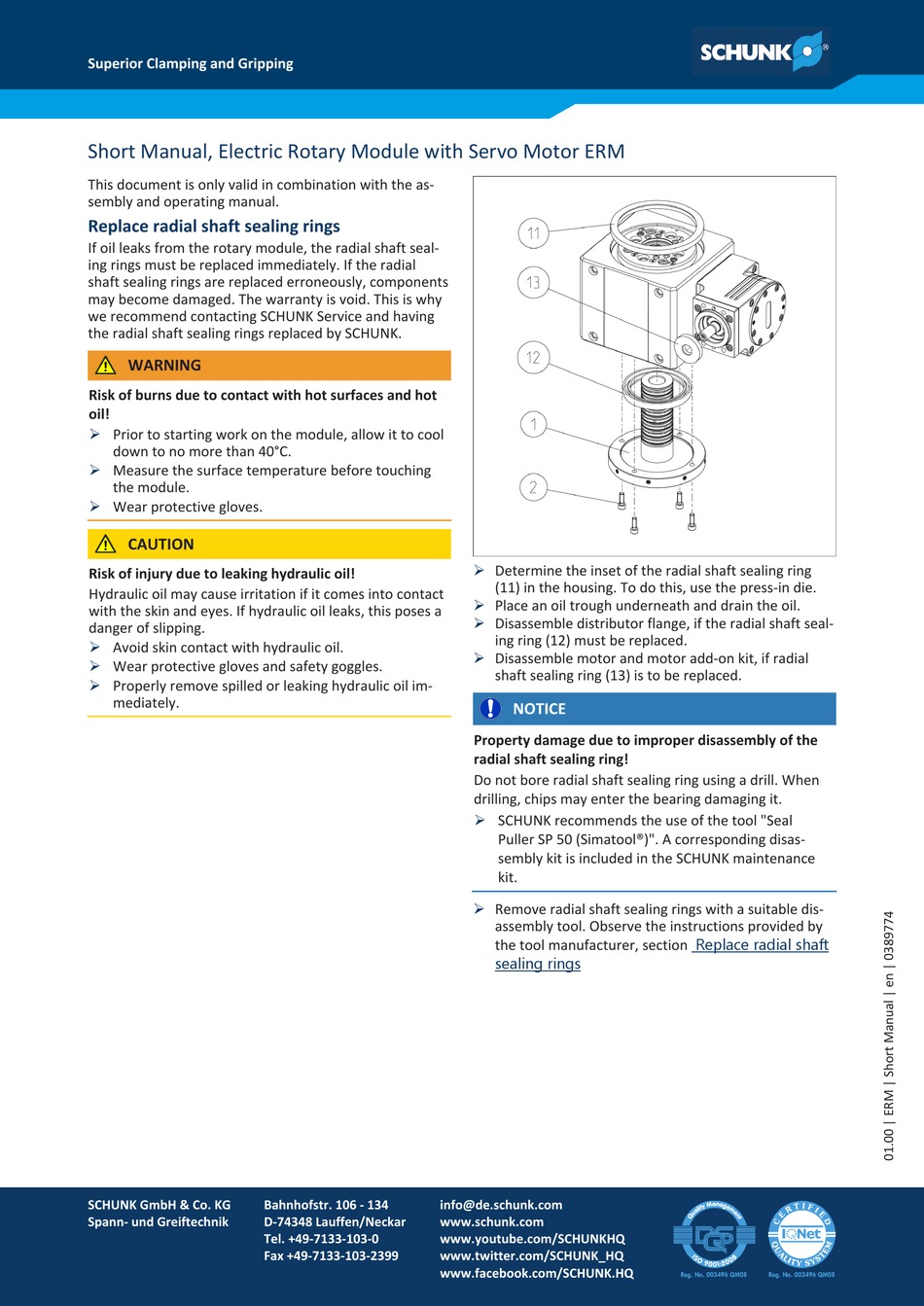

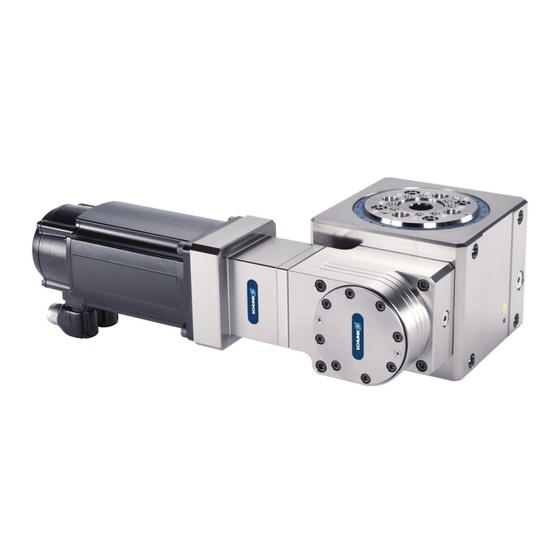

Short Manual, Electric Rotary Module with Servo Motor ERM
This document is only valid in combination with the as-
sembly and operating manual.
Replace radial shaft sealing rings
If oil leaks from the rotary module, the radial shaft seal-
ing rings must be replaced immediately. If the radial
shaft sealing rings are replaced erroneously, components
may become damaged. The warranty is void. This is why
we recommend contacting SCHUNK Service and having
the radial shaft sealing rings replaced by SCHUNK.
WARNING
Risk of burns due to contact with hot surfaces and hot
oil!
Ø
Prior to starting work on the module, allow it to cool
down to no more than 40°C.
Ø
Measure the surface temperature before touching
the module.
Ø
Wear protective gloves.
CAUTION
Risk of injury due to leaking hydraulic oil!
Hydraulic oil may cause irritation if it comes into contact
with the skin and eyes. If hydraulic oil leaks, this poses a
danger of slipping.
Ø
Avoid skin contact with hydraulic oil.
Ø
Wear protective gloves and safety goggles.
Ø
Properly remove spilled or leaking hydraulic oil im-
mediately.
SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 - 134
D-74348 Lauffen/Neckar
Tel. +49-7133-103-0
Fax +49-7133-103-2399
Ø
Determine the inset of the radial shaft sealing ring
(11) in the housing. To do this, use the press-in die.
Ø
Place an oil trough underneath and drain the oil.
Ø
Disassemble distributor flange, if the radial shaft seal-
ing ring (12) must be replaced.
Ø
Disassemble motor and motor add-on kit, if radial
shaft sealing ring (13) is to be replaced.
NOTICE
Property damage due to improper disassembly of the
radial shaft sealing ring!
Do not bore radial shaft sealing ring using a drill. When
drilling, chips may enter the bearing damaging it.
Ø
SCHUNK recommends the use of the tool "Seal
Puller SP 50 (Simatool®)". A corresponding disas-
sembly kit is included in the SCHUNK maintenance
kit.
Ø
Remove radial shaft sealing rings with a suitable dis-
assembly tool. Observe the instructions provided by
the tool manufacturer, section
sealing rings
info@de.schunk.com
www.schunk.com
www.youtube.com/SCHUNKHQ
www.twitter.com/SCHUNK_HQ
www.facebook.com/SCHUNK.HQ
