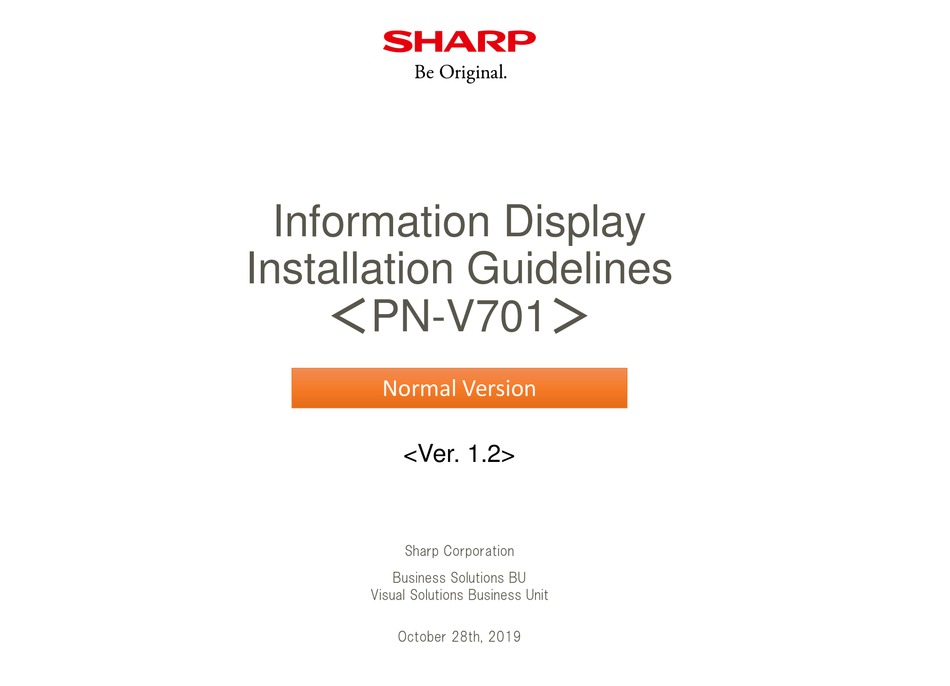

- Page 1 Information Display Installation Guidelines ＜PN-V701＞ Normal Version <Ver. 1.2> Sharp Corporation Business Solutions BU Visual Solutions Business Unit October 28th, 2019...
-
Page 2: Table Of Contents
3.5. Precautions for unpacking 5.4. HDBaseT Receiver Board(PN-ZB03H) … P31-34 … P69-74 3.6. Precautions in installing and handling 5.5. Installation tool … P35 3.7. Attachment precautions … P36-38 3.8. Precautions on stand installation Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 3: Overall Precautions
1. Overall precautions Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 4: Procedures Of Installation
1.1 Procedures of installation (Please thoroughly observe these recommendations) 1 We recommend that the following procedures are entrusted to Sharp sales subsidiaries or dealers/contractors trained by Sharp. Make enough Check worker’s working space clothes and their before working on. belongings. - Page 5 LCD screen. apply pressure to the top, display, be sure to hold it with the bottom, left and right of the carrying handles. Do not hold any frame. other parts. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 6 Tape materials Ref. You can check the PN-V701’s panel status (color, brightness, damage, or existence or nonexistence of bright point/black point, light leakage, floating) in accordance with the following procedure. Note that you can’t check all the features of PN-V701 with the following procedure.
-
Page 7: Overall Precautions
-We will not take any responsibility for any failure, damage, loss, etc. which arise from particular installation (high-ceiling mounting etc.) and/or installation by other companies than Sharp. Prior to the installation, examine the potential problems caused by the installation location and installation method, and operate within the appropriate environment. -
Page 8: Design Precautions
2. Design precautions Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 9: Precautions For Temperature And Clearance Space
Heat on LCD surface When the temperature on the surface of the LCD screen is too high, it will break down or uniformity issue will occur. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 10 (Follow the installation conditions for peripheral devices as well.) Surface Consult us. Note: Inquire us when you install displays in an environment where surroundings are not opened such as in-wall installation. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 11 This model has a fan. In landscape installation, the fan is rotated when the temperature is above 30℃. It isn’t rotated in portrait installation. User menu does not have settings to turn ON/OFF the fan or to control the rotation speed. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 12 - If it is difficult to secure spaces or if the surrounding temperature goes under 0 ℃ or beyond 40 ℃, take some measures, such as installing the air-conditioner to control the surrounding temperature to be around 0 ℃ to 40 ℃. Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 13: Precautions For Sunlight
Utilizing the shade of the building Installing the display back to the place without direct sunlight Setting a sun-shade e.g. LCD screen darkening e.g. LCD screen darkening Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 14: Countermeasures Against Dust
*To maintain the quality of the casing, regular maintenance is needed. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 15: Position Of Fan
2.4.Position of fan DO NOT cover the fan cover area for replacing the fan. Do NOT cover this area for replacing of cooling Cover removal fan. Fan-cover is attached firmly with screws. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 16: Reflected Glare
When you use air flow fan, sufficient examination is needed before installation. Guard Panel Secure space A space of as least 3cm is required for natural air flow. Light Light LCD surface temperature must be below 60℃. Flow Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 17: Precautions For Dew Condensation, Water Drops, And Salt Damage
DO NOT set the display in the place where may be affected by sulfur(e.g. hot spring or volcano). - Precaution for organic gas or flammable gas: DO NOT set the display in the place where may be affected by organic gas or flammable gas. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 18: Vibration/Afterglow/Expansion Precautions
Turn off the backlight and display the preventing afterglow patterns in a power supply standby mode or signal standby mode. Ask SHARP Sales Department about the detailed operation method. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 19: Power Supply Precautions
Power Supply and Voltage Circuit breaker - PN-V701 is designed to be used under commercial 100V-240V power supply, but shortage of power supply may occur in wall video installation. - Arrange plural circuit and level power consumption in each circuit. -
Page 20: Connecting Devices
-When you use light conversion cable to extend the transmission distance, EDID may not be read accurately. Not reading EDID accurately, displays cannot display correctly. Check the image quality beforehand when using these devices. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 21 -Normally :up to 3m -DisplayPort video signal(MST) : up to 2m The displays are connected by commercially available 4K-compatible cables. *MST: MultiStream DisplayPort IN OUT ・DisplayPort ・HDMI ・DVI-D DisplayPort ・D-Sub15P DisplayPort ・HD-BaseT(OP) <4 daisy-chained displays> Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 22: Precautions For Display Dimensions
(for PN-ZR02) Handles conceal the holes in a new display. Four holes Discontinued from for installation tools production in Fan cover January 2018 <Weight> Approx. 37.0kg VESA holes x 4 Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 23: Precautions For Adjacent Installation
0.72mm or more and for short- length is 0.4 mm or more. (recommend more than 1mm) Note: If the space between displays is small, the weight is loaded to LCD panel by heat expansion. It may cause a white spot, unclear display images, or failures. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 24 Attach the blind tape on the rear. Keep the display ambient temperature in the range of 0℃ to 40℃. Secure a space at the bottom of the displays to intake cold air. before after Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 25: Inclined Orientation
・Consult us beforehand when installing the display in the inclined orientation even under 20 degrees. × × Over 20° Over 20° Under 20° Under 20° Vertical orientation is Do not incline over 20 degrees. most recommended. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 26: Installation Precautions
3. Installation precautions Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 27: Major Failure Modes Due To Mishandling
3.1.Major failure modes due to mishandling Light leakage due to Broken panel Line defect deformation of a bezel SHARP SHARP Not display when Blurred Belt-shaped defect a power switch is turned on Display abnormally Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 28: Precautions For Carrying
- Do not reuse the packaging materials. <Packing size> × Wide(mm) Length(mm) Thickness(mm) Weight(kg)(approx.) 1,865 1,100 57.0 Do not carry the display Carry the display with a wheeled cart with 2 or more people. in vertical orientation. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 29: Prohibitions In Storage And Transfer In A Packaged Form
3.3.Prohibitions in storage and transfer in a packaged form ■DO NOT STACK ■DO NOT DROP ■DO NOT APPLY SHOCK ■DO NOT STEP ■DO NOT STORE ■DO NOT ■DO NOT PUT IN ■DO NOT ON SLOPE TOP LOAD PORTRAIT OVERTURN ORIENTATION Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 30: Installation Flow
6. Remove the protective 5. Install 8. Turn on (completion) 7. Combine film and corner protective materials Note: Keep the packing materials till the Repacking, Repairing completion of installation. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 31: Precautions For Unpacking
Remove the packages Remove 4 joints attached on the bottom on the top of the product of the box and lift up the box . and take the product out of the bag. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 32: Precautions In Installing And Handling
Protective film This may cause product When removing, detach the damage and failures. film carefully to avoid damaging the LCD. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 33 ⚫ Failures may be caused by lifting up the display lying on the floor by using the edge of the LCD screen side as a supporting point. Screen Screen ⚫ Carefully hold up the display before moving or carrying it. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 34 × display in inclined state. × 2. Remove the protective film slowly toward the LCD screen side so that the bezel parts won’t come off. × ＯＫ ＮＧ Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 35 However, it won’t guarantee against failures. Protective Film Corner Protective Materials Remain the corner protective materials attached until Completion of installation just before the final step of combining displays. Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 36: Attachment Precautions
VESA compliant screw holes Hole for mounting bracket (7.5 mm or below in diameter) 固定用ネジ(M6) Screw (M6) 固定ボス Fixing boss 取付金具 Mounting bracket Rear cover of display ディスプレイ Rear cover of display 背面キャビネット Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 37: Precautions On Stand Installation
Installation mode setting on *OSD (portrait or landscape) Set installation orientation on OSD OSD setting procedure:[MONITOR] – [LANDSCAPE/PORTRAIT] - Portrait mode: [portrait] - Landscape mode: [landscape] (Default setting) * OSD – On Screen Display Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 38 It is designed for adjusting the installation location. Do not install it Floor stand with caster for the purpose of carrying displays. Stand Do not combine stands to install displays. It may cause × failures due to a collision between displays. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 39 Do not make displays collide with each other. × Collision with metal fittings Do not make displays collide with metal fittings. × Cable caught Do not make cables be caught between displays. Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 40: Precautions For Mounting On The Wall
Installation mode setting on OSD (portrait or landscape) Set installation orientation on OSD OSD setting procedure: [MONITOR] – [LANDSCAPE/PORTRAIT] Portrait mode: [portrait] Landscape mode: [landscape] (Default setting) Secure space behind Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 41 Pantograph type metal fittings Use the pulling wire when you want to put in displays. × Do not push displays directly. Pulling wire Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 42: Rotate Direction For Portrait Mounting
◆ In portrait orientation, change the [THERMAL SENSOR SETTING ] of OSD to [PORTRAIT]. If the setting remains landscape in portrait This Side Up Label orientation, the temperature sensor does not work properly. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 43: Inversion Scan Function
Progressive Progressive You need to set [PICTURE FLIP] to Scan Scan [ON] or prepare a scan converter as the image is turned upside-down in Inversion Inversion the inversion scan mode. scan scan Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 44: Precautions For Horizontal Installation
Even within the warranty period, the replacement of fan caused by failure is charged. - We don’t guarantee the display quality in horizontal installation. - This model does not support face down horizontal installation. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 45 - When you restore to vertical portrait/landscape installation, change to [VERTICAL]. - Do not try any other settings except for the above. - Do not change to [FACE DOWN] as this model supports only face-up in the horizontal installation. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 46 Upper part of the unit Lower part of the unit Wind velocity Wall more than 1.0m/S Secure space Wind velocity Cool air flow more than 20 cm more than 1.0m/S Floor Air flow Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 47: Precautions On Pc Installation
For instance, it is effective to install a ventilation fan to reduce overheating. • We recommend using a wireless mouse and keyboard to secure the PC operability. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 48: Maintenance & Checking Items
• Use a commercially available static electricity removal brush (dustproof brush) when dust attaches to the LCD surface. • Do not wipe with a damp cloth, dusty cloth, and chemical wiping cloth. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 49: Periodical Maintenance
Contact the dealer/reseller from which you purchased the main unit or our sales reps for the information of replacement parts. In addition to the regular maintenance, we recommend the Maintenance Contract of SHARP Business Solution. Contact the dealer from which you purchased the main unit or our sales reps for the information. -
Page 50: Color Adjustment
4. Color adjustment Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 51: Installation Scheme Flow
You may also get it from the main unit directly by DITwC. Installation Complete DITwC: Display Installation Tool with Calibration Utility Caribration by measuring Color’s aged deterioration device(5) Color adjustment after caribration(6) Installation Complete Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 52: Determine A Video Wall Layout By Ditwc
Acquiring measurement data using Recommended Layout], calculations result DITwC via LAN will appear by serial no. Layout Result (Figure) *DITwC… Display Installation Tool with Calibration Utility. Refer to DITwC manual for further information. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 53: Auto Color Adjustment By Ditwc
Refer to the Display Installation Tool manual for detailed information. Send adjusted value of “R/G/B Contrast ” and “Brightness Value” to each display simultaneously. *DITwC… Display Installation Tool with Calibration Utility Refer to DITwC manual for further information Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 54: Select Uniformity Mode
Equivalent to 500cd/㎡ Using a remote control unit. Uniformity [MENU]→[Picture]→[Uniformity] *1 SHARP Advanced Uniform Color Calibration Technology *2 DITwC… Display Installation Tool with Calibration Utility. Refer to DITwC manual for further information. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 55: Fine Color Adjustment With Ditwc
Then subtle color adjustment may be required. You can adjust it easily with this software. Hue and Saturation Adjustment RGB Contrast Adjustment [PN-V701 limited] *DITwC… Display Installation Tool with Calibration Utility Refer to DITwC manual for further information. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 56: Calibration With Measuring Devices
Adjustment PC time. A measuring device Adjustment PC LAN cable A measuring device *1 DITwC…Display Installation Tool with Calibration Utility *4 Can connect via also RS-232C Refer to DITwC manual for further information. Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 57: Color Adjusting After Calibration
* automatically adjusted.* *1 DITwC stands for Display Installation Tool with Calibration Utility, which is a Sharp’s dedicated application. *2 It can not be adjusted in a non-contact type measurement . *3 It can be adjusted in both contact type and non-contact type measurements . -
Page 58: Software Tool
<Sharp provides this software>* V701/V550A. It can not be used with PN-V60X series * For more information about this software, contact our sales reps or the dealer/reseller from which you purchased the main unit. Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 59 4.8.Software Tool 2 Figure Image Display Management Monitoring the operational status of display, Tool scheduling, mail setting, and security setting <Sharp provides this software> Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 60: Software Function Comparison
Measure the screen by optional measuring devices measuring device. White Balance Adjust white and gray Automatic Adjustment Adjust each color of RGBCMY and Color Matching Gray *1 Some of the command can be used Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 61 Register/edit individual IDP and Monitor Control(DMT) Groups Password & operate authority Password setting Monitoring Check status of each IDP Schedule setting for power on Schedule Mail / Monitoring settings Mail and monitoring setting Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 62: Optional Tool And Installation Tool
5. Optional tool and installation tool Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 63: A List Of Optional/Recommendation Tools Peripheral Devices
* 5 Displays can be wired or installed with the fittings stretched, however DO NOT leave it stretched or DO NOT do other work under it. Note: Contact the manufacturer directly for detailed information about the products except for those offered by SHARP. -
Page 64: Dimensions Of Peripheral Devices Packaging
/Portrait (only Japan) Control Kit ― PN-ZR02 SHARP 200mm x 140mm x 45mm 307g (Remote control unit + Receiving section) ― HDBaseT receiving board PN-ZB03H SHARP 196mm x 160mm x 55mm 320g Copyright © All rights reserved, SHARP CORPORATION Confidential... -
Page 65: Control Kit Pn-Zr02
5.3.Control Kit PN-ZR02 All of the displays of a video wall can be conveniently operated through one remote control unit by installing a remote control sensor box in one of the PN-V701 of a video wall. (Up to 25 units) Note: Connect all displays in daisy chain with RS232C cable, and attach the sensor box at the top of the display. -
Page 66: Hdbaset Receiver Board(Pn-Zb03H)
4096 x 2160 (30Hz) Copy Protection HDCP pass-through Transmission Distance Up to 328 feet/100m Input/Output Terminals HDBaseT x 1, LAN x 1 (10BASE-T/100BASE-TX) USB x 1 (USB 2.0) Power Supply From display main unit Copyright © All rights reserved, SHARP CORPORATION Confidential... - Page 67 PC or AV devices connecting to HDBaseT transmitter may affect operation or it may not work properly depending on the operating environment. ● Contact the manufacturer for further information about the devices listed above. ● The information above is subject to change without notice. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 68 Cat.6 or higher shielded cable network by connecting the LAN terminal on the PN- ZB03H to the network. (A display is also connected to the network.) Network (Internet, Share the network Intranet, etc.) through HDBaseT Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 69 Q：What kind of USB devices can be used? A：You can use USB mouse pad and USB keyboard compatible with HID class. When using USB devices, you need a transmitter compatible with HDBaseT 2.0. Copyright © All rights reserved, SHARP CORPORATION Confidential...
-
Page 70: Installation Tool
- This installation handle is to improve the efficiency of installation. Use it as necessary. Installation eyebolt For a crane to lift the PN-V701 up to a high location - It is inserted into holes on the top of the display, enabling lifting (UKOG-1006MPZ1) the PN-V701 up by using a crane. - Page 71 5.5.Installation tool 1 (Attachment place) Attachment place of installation tool Installation handle Installation eyebolt Portrait install Installation handle Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 72 Use a sticker. (Attach a sticker to the handle part and the side of the rear cover.) Handle part Note: Contact the dealer from which you purchased the main unit or our sales reps if you need above tools. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 73 Thickness: - After installation, no need to detach the protection spacer. 0.5mm Note: Contact the dealer from which you purchased the main unit or our sales reps if you need above tools. Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 74 On the service hall of the rear. (The LCD surface is on the front.) surface Approx. 204mm from the bottom on the rear side (The LCD surface is on the front). Approx. 204mm Copyright © All rights reserved, SHARP CORPORATION Confidential...
- Page 75 *The conventional pipe-type stand will be change to this type. (Both compatible) Note: Contact the dealer from which you purchased the main unit or our sales reps if you need above tools. Copyright © All rights reserved, SHARP CORPORATION Confidential...
