PN-V701
LCD MONITOR
OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Sharp PN-V701

Summary of Contents for Sharp PN-V701

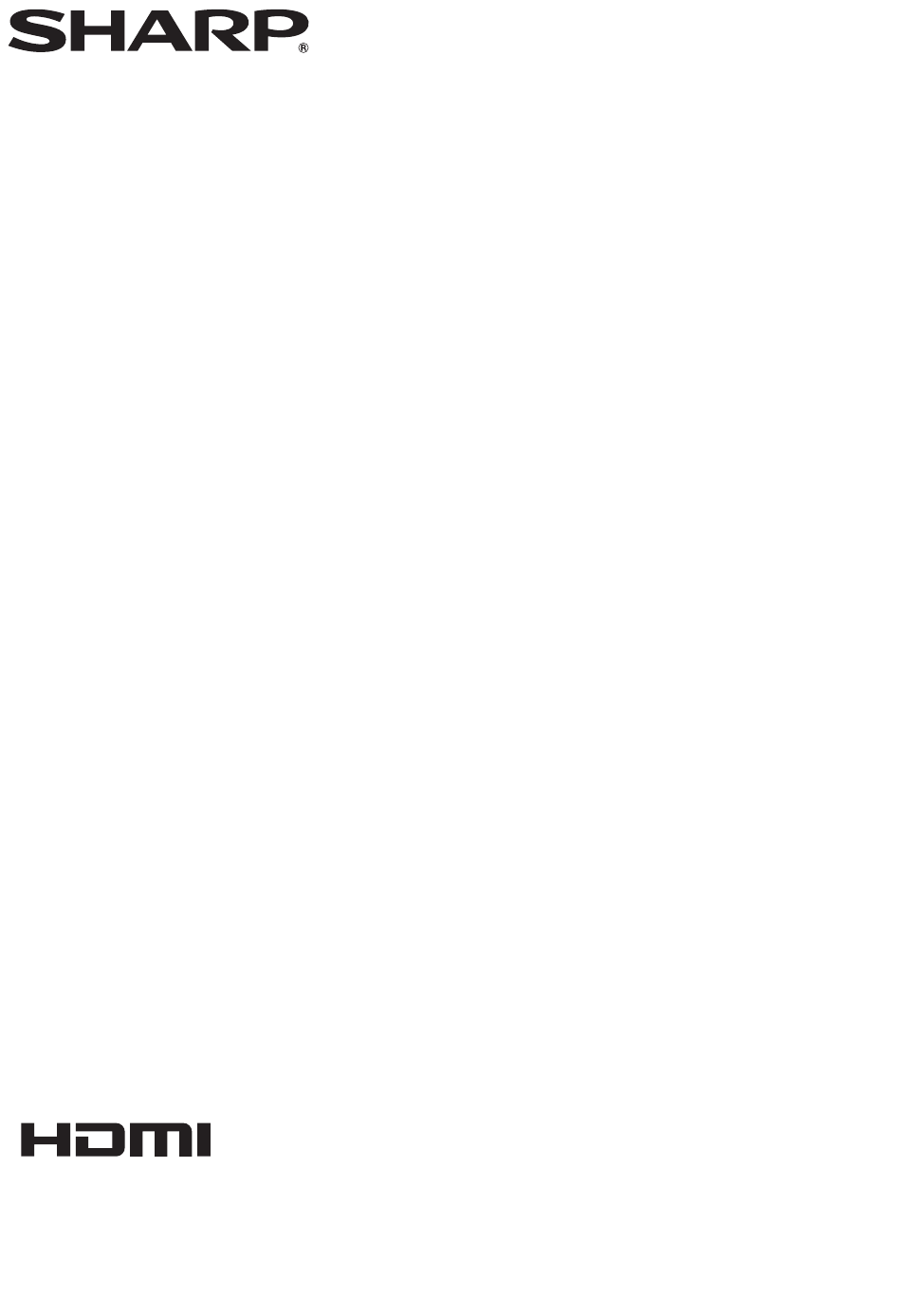

  • Page 1 PN-V701 LCD MONITOR OPERATION MANUAL...
  • Page 2 Batteries are collected at points of sale. Return is free of charge. If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility.

  • Page 3: Important Information

    IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the CAUTION presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of RISK OF ELECTRIC sufficient magnitude to constitute a risk of electric...

  • Page 4: Dear Sharp Customer

    DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled.
  • Page 5 SAFETY PRECAUTIONS (Continued) 19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below: •...

  • Page 6: Tips And Safety Instructions

    Please contact an authorized SHARP servicing dealer or service center for assistance. ● The fan in this product has a limited lifetime. ● Please contact an authorized SHARP servicing dealer or service center for assistance with fan replacement.

  • Page 7: Mounting Precautions

    • Mounting the monitor on the wall requires special expertise degrees to the right. and the work must be performed by an authorized SHARP - Set the PORTRAIT/LANDSCAPE INSTALL on the dealer. You should never attempt to perform any of this MONITOR menu to PORTRAIT.

  • Page 8: Table Of Contents

     Remote control sensor box mounting hole concealing sticker: 2 * The remote control unit is supplied with the PN-ZR02 control kit (optional). * SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection!

  • Page 9: Part Names

    Offering this 10 11 attachment location is not a guarantee that future compatible hardware attachments will be released. Caution • Consult your SHARP dealer for attachment/detachment of optional parts. • Do not block the fan cover.
  • Page 10 Part Names n R emote control unit (Supplied with the PN-ZR02 (optional)) 1. Signal transmitter 2. Operation buttons (See pages 20 and 21.) n R emote control sensor box (Supplied with the PN-ZR02 (optional)) 1. Remote control sensor 2. Connection cable 3.

  • Page 11: Connecting Peripheral Equipment

    Connecting Peripheral Equipment 11 12 1. DisplayPort output terminal Caution • The video of the current input mode can be output to an • Be sure to turn off the main power switch and disconnect external device. the plug from the power outlet before connecting/ •...
  • Page 12 Connecting Peripheral Equipment 5. DVI-D input terminal • Use a commercially available signal cable (DVI-D 24 pin). 6. D-sub input terminal • Set D-SUB of INPUT SELECT on the SETUP menu according to the device to be connected. 7. Audio input terminal •...

  • Page 13: Multiple Monitor Connection

    Connecting Peripheral Equipment Multiple monitor connection nConnection with RS-232 cable If you connect the monitor in a daisy chain using RS-232 The monitors can be aligned and used as a large screen. cables, settings are copied from the primary (main unit) to the [Example] secondary (expansion unit) and operation from the primary Remote control sensor box...
  • Page 14 Connecting Peripheral Equipment n M ounting the control kit (optional) on the 4. Insert the remote control sensor box connection cable into the control kit terminal. monitor If performing operation of the monitor with the remote control unit, the PN-ZR02 control kit (optional) is required. Remote control •...

  • Page 15: Connecting The Power Cord

    Connecting the Power Cord Caution • Use only the power cord supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the power outlet. AC input terminal Main power switch For power...

  • Page 16: Binding Cables

    Binding Cables The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp. Insert the cable clamp into the cable clamp attachment on the rear of the monitor and fasten the cables. Cable Cable clamp attachment...

  • Page 17: Preparing The Remote Control Unit

    Preparing the Remote Control Unit Installing the batteries Remote control operation range 1. Place your finger on the part marked with the ▲, and The operation range of the PN-ZR02 (optional) remote control unit is approx. 23 feet (7 m) from the remote control sensor, then pull the cover off.

  • Page 18: Turning Power On/Off

    Turning Power On/Off Turning power on/off Caution • Turn on the monitor first before turning on the computer or Press the POWER button to turn the power ON/OFF. playback device. You can also turn the power ON/OFF by pressing the •...

  • Page 19: Disabling Power On/Off Operations

    30.) screen appears when the power is turned on, the internal battery may be exhausted. Please contact an authorized SHARP servicing dealer or service center for assistance with battery replacement. • Estimated service life of the internal battery: About 5...

  • Page 20: Basic Operation

    Basic Operation When performing operation of multiple monitors with the 4. MODE (Color mode selection) remote control unit, first set the remote control unit to the Each time you press this button, the color mode changes in appropriate remote control mode (see page 23). the following order: STD (Standard) →...
  • Page 21 BRIGHT VOLUME ID No. 15. PIP/PbyP REMOTE No. Each time you press the button, PIP MODES switches in the MODEL PN-V701 VERSION ×.×.××.× following order: OFF → PIP → PbyP → PbyP2 → OFF. xxxxxxxx STATUS 0000-000000-00-0000 16. BRIGHT +/- (Brightness adjustment)
  • Page 22 Basic Operation nSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE Displays image so it fills the entire screen. ZOOM 1 The image is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.

  • Page 23: Remote Control Mode

    Remote Control Mode With the remote control unit it’s possible to perform operation ALL MONITORS of... Performs operation of all primary/secondary monitors. • The primary monitor will be displayed on the menu of the primary. ALL [EXPAND ITEM:OFF] • Monitors with a specified ID No. * When it receives signals from the remote control unit, •...

  • Page 24: Menu Items

    Menu Items Displaying the menu screen TIPS • The menu will differ depending on the input mode. Video adjustment and settings of various functions are • The menu screen will close automatically if no operation is enabled. This section describes how to use the menu items. performed for about 15 seconds.

  • Page 25: Menu Item Details

    Menu Items Menu item details The menu will differ depending on the input mode. nSCREEN You can move the menu screen display position each time the INFORMATION button is pressed. AUTO (D-SUB[RGB]) The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted. Pressing the ENTER button performs adjustment.
  • Page 26 Menu Items nPICTURE You can move the menu screen display position each time the INFORMATION button is pressed. BRIGHT Adjusts the backlight brightness. CONTRAST Adjusts the difference between the bright and dark portions of the image. BLACK LEVEL Adjusts the entire brightness of the video signals. TINT Adjusts the hue.
  • Page 27 Menu Items ADVANCED AUTO (D-SUB[RGB]) The ANALOG GAIN and ANALOG OFFSET are automatically adjusted. Pressing the ENTER button performs adjustment. ANALOG GAIN (D-SUB[RGB]) Adjusts the bright portions of the video input signal. ANALOG OFFSET (D-SUB[RGB]) Adjusts the dark portions of the video input signal. Reduce the image noise.
  • Page 28 Menu Items nSETUP DATE/TIME SETTING Set the date and time. Press the button to select the date and time, and press the button to change the numerical values. Set the date in “Day/Month/Year” order. Set the time on a 24-hour basis. (Factory default) DATE/TIME FORMAT Sets the date/time display format.
  • Page 29 Menu Items COMMUNICATION SETTING RS-232C/LAN SELECT Selects the method with which to control the monitor from the computer. BAUD RATE Selects the communication speed used for RS-232C communication. LAN SETUP Configures the settings to control the monitor from the computer via LAN. (See page 51.) AUTO ASSIGN FIXED IP ADDR.
  • Page 30 Menu Items nMONITOR PORTRAIT/LANDSCAPE INSTALL LANDSCAPE ..Landscape orientation PORTRAIT ..Portrait orientation ROTATE 180° If video is upside down when the monitor is installed in portrait orientation, you can rotate the video 180 degrees. Interlaced signals may not be displayed properly. INVERSE SCAN INVERSE SCAN Normally this is set to OFF.
  • Page 31 Menu Items nMULTI/PIP MULTI ENLARGE (See page 34.) Sets whether or not to use the enlarge function. ADVANCED (ENLARGE) ENLARGE H / ENLARGE V ..Sets the number of screen splits (number of monitors) in the horizontal/vertical direction used for the enlargement. ENLARGE-POS ..
  • Page 32 Menu Items nOTHERS SCREEN MOTION PATTERN Residual images are reduced by moving the screen. OFF ....SCREEN MOTION function is disabled. PATTERN1 ..The whole screen moves vertically and horizontally. PATTERN2 ..A black screen spreads from the bottom of the screen and then shrinks to the bottom of the screen. If the monitor is installed in the portrait orientation, a black screen spreads from the left end of the screen and then shrinks to the left end of the screen.
  • Page 33 Menu Items TIPS • When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST, TINT, COLORS, GAMMA, PRESET, USER, COPY TO USER, FLESH TONE, C.M.S. and ADJUST UNIFORMITY cannot be set. • If COLOR MODE is set to sRGB, the following items cannot be set. PRESET, USER, COPY TO USER, and GAMMA •...
  • Page 34 Menu Items nDual screen display nEnlarge You can display two screens simultaneously. • You can align several monitors and integrate them into a Set this function with PIP MODES of PIP/PbyP in the MULTI/ single large screen to display. PIP menu. •...
  • Page 35 Menu Items nZOOM2 SPECIAL SETTING (3) DAY OF THE WEEK Specifies the day of the week to execute the SCHEDULE. If you connect a laptop computer with any of the following 0:ONLY ONCE screen resolutions and black bands appear around the screen, Executes the SCHEDULE once on the specified day.

  • Page 36: Adjustments For Computer Screen Display

    Menu Items nAbout remote control numbers Adjustments for computer screen If there is another monitor nearby, you can change the remote display control number to prevent the other monitor from being operated by the remote control unit. nAutomatic adjustment Set the same number in the monitor and in the remote control When you use the D-SUB[RGB] to display a computer screen unit.

  • Page 37: Initialization (Reset)/Functional Restriction Setting (Function)

    Initialization (Reset)/Functional Restriction Setting (FUNCTION) You can return the settings to their factory-preset values and OSD DISPLAY restrict operations. Shows/hides the menu, modes and messages. The FUNCTION and REMOTE CONTROL MODE 1. If using the remote control unit: screens cannot be hidden. Press the FUNCTION button, and then press the MENU ON 1 ....

  • Page 38: Controlling The Monitor With A Computer (Rs-232C)

    Controlling the Monitor with a computer (RS-232C) Communication conditions You can control this monitor from a computer via RS-232C (COM port) on the computer. You can also connect multiple monitors via a daisy chain by Set the RS-232C communication settings on the computer to using a computer.
  • Page 39 Controlling the Monitor with a computer (RS-232C) nResponse code format nCommunication interval When a command has been executed correctly • After OK or ERR is returned, you must send the following commands. Return code To set a timeout for the command response, specify 10 , 0A seconds or longer.
  • Page 40 Controlling the Monitor with a computer (RS-232C) nCommands for ID control IDLK ..The parameter of this command sets the ID number of the monitor. The monitor is subject to all The command examples shown on this page assume the subsequent commands. following connection and ID number set up.

  • Page 41: Setting Of The Gamma User Data

    Controlling the Monitor with a computer (RS-232C) nRepeater control Setting of the GAMMA user data This system has a function to allow setting of multiple nTo transfer the GAMMA user data monitors connected in a daisy chain using a single command. This function is called repeater control.

  • Page 42: Rs-232C Command Table

    Controlling the Monitor with a computer (RS-232C) RS-232C command table How to read the command table Command: Command field (See page 38.) Direction: W When the “Parameter” is set in the parameter field (see page 38), the command functions as described under “Control/Response Contents”.
  • Page 43 Controlling the Monitor with a computer (RS-232C) SCREEN menu Function Command Direction Parameter Reply Control/Response contents AUTO ASNC When the input mode is D-SUB[RGB]. CLOCK CLCK 0-1200 0-1200 When the input mode is D-SUB[RGB]. Varies depending on the signal. PHASE PHSE 0-63 0-63 When the input mode is D-SUB[RGB].
  • Page 44 Controlling the Monitor with a computer (RS-232C) PICTURE menu Function Command Direction Parameter Reply Control/Response contents BRIGHT VLMP 0-31 0-31 CONTRAST CONT 0-60 0-60 BLACK LEVEL BLVL 0-60 0-60 TINT TINT 0-60 0-60 COLORS COLR 0-60 0-60 SHARPNESS SHRP 0-24 0-24 COLOR COLOR MODE...
  • Page 45 Controlling the Monitor with a computer (RS-232C) Function Command Direction Parameter Reply Control/Response contents AGIN When the input mode is D-SUB[RGB]. ADVANCED AUTO ANGA 0-127 0-127 When the input mode is D-SUB[RGB]. ANALOG GAIN ANOF 0-127 0-127 When the input mode is D-SUB[RGB]. ANALOG OFFSET ○...
  • Page 46 Controlling the Monitor with a computer (RS-232C) Function Command Direction Parameter Reply Control/Response contents DisplayPort SETTING HIGH-FREQUENCY DPHG 0-31 0-31 GAIN LOW-FREQUENCY DPLG 0-31 0-31 GAIN FILTER SETTING DPFL 0-15 0-15 OFFSET DPOF 0-15 0-15 RESET DPRS AUDIO SELECT HDMI1 ASHP 0-1 0: HDMI, 1: AUDIO AH2P...
  • Page 47 Controlling the Monitor with a computer (RS-232C) MONITOR menu Function Command Direction Parameter Reply Control/Response contents PORTRAIT/LANDSCAPE INSTALL STDR 0: LANDSCAPE, 1: PORTRAIT ROTATE 180°/PICTURE FLIP PFIL 0, 2, 3 0, 2, 3 0: ROTATE 180° is set to OFF. PICTURE FLIP is set to OFF. 2: ROTATE 180°...
  • Page 48 Controlling the Monitor with a computer (RS-232C) MULTI/PIP menu Function Command Direction Parameter Reply Control/Response contents ENLARGE ENLG 0-1 0: OFF, 1: ON ENLARGE MODE EMAG 1-4 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5 EMHV 12(21)-55 12(21)-55 1 x 2 (2 x 1) to 5 x 5 (“m x n”...
  • Page 49 Controlling the Monitor with a computer (RS-232C) Function Command Direction Parameter Reply Control/Response contents PIP MODES MWIN 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2 PIP SIZE MPSZ 1-64 1-64 PIP POS THE LONGEST MHPS 0-100 DIRECTION 0-100 THE SHORTEST MVPS 0-100 DIRECTION...
  • Page 50 Controlling the Monitor with a computer (RS-232C) Initialization/Functional Restriction Setting (FUNCTION) menu Function Command Direction Parameter Reply Control/Response contents ALL RESET RSET 0: ALL RESET 1, 1: ALL RESET 2 ● ADJUSTMENT LOCK ALCK 0-2 0: OFF, 1:ON1, 2:ON2 ADJUSTMENT LOCK TARGET ALTG 0-2 0: REMOTE CONTROL, 1: MONITOR BUTTONS, 2: BOTH OSD DISPLAY...

  • Page 51: Controlling The Monitor With A Computer (Lan)

    Controlling the Monitor with a computer (LAN) Settings to connect to a LAN Your monitor can be connected to a LAN allowing you to control it from a computer on the LAN. You can also configure the monitor to send e-mail notification Set the monitor’s IP address and subnet mask to match the when it has a problem.
  • Page 52 Controlling the Monitor with a computer (LAN) nTo set from a computer 7. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set When the monitor is connected to a computer, LAN settings as follows.

  • Page 53: Controlling With A Computer

    Controlling the Monitor with a computer (LAN) Controlling with a computer 6. Click on “LAN SETUP” under NETWORK. nBasic operation You use the web browser on a computer on the LAN to control the monitor. 1. Launch the web browser on the computer. 2.
  • Page 54 Controlling the Monitor with a computer (LAN) nINFORMATION nADJUSTMENT Information about this monitor appears. You can adjust these settings which are also available on the monitor’s menu. • SCREEN (See page 25.) • PICTURE (See pages 26 to 27.) • PICTURE (ADVANCED) (See page 27.) •...
  • Page 55 Controlling the Monitor with a computer (LAN) nNETWORK (LAN SETUP) nNETWORK (SECURITY) This screen allows you to set the settings necessary when the This screen allows you to specify the security-related settings. monitor is connected to a LAN. USER NAME / PASSWORD DHCP CLIENT Sets up a user name and password to restrict access to this If your LAN has a DHCP server and you wish to obtain an...
  • Page 56 Controlling the Monitor with a computer (LAN) nNETWORK (GENERAL) nMAIL (ORIGINATOR) This screen allows you to specify the general LAN settings. This screen allows you to configure the e-mail sent periodically or when the monitor has an error. The settings depend on the configuration of your LAN. Ask your LAN administrator for details.
  • Page 57 Controlling the Monitor with a computer (LAN) nMAIL (RECIPIENT) nMAIL (PERIODICAL) This screen allows you to specify the recipients of the e-mail When PERIODICAL for CONDITION of MAIL (RECIPIENT) is sent periodically or when the monitor has an error. checked, set the date and time to send the mail. RECIPIENT E-MAIL ADDRESSES DAY OF THE WEEK Specify the e-mail addresses to send error notification e-mail...
  • Page 58 Controlling the Monitor with a computer (LAN) nSNMP Caution You can configure settings related to SNMP. • After you set SNMP, click [Switch the main power of monitor off and on now.] or turn off the monitor and then turn it on again with the main power switch. When the monitor restarts, wait about 30 seconds and then start the next operation.
  • Page 59 Controlling the Monitor with a computer (LAN) nCrestron Connected Info Display the Crestron Connected Control Menu. Control Menu 1. Display below information. • D isplay Name • Mac Address • R esolution 1. Operate below functions. 2. Display below status. • P ower..Turn the power ON/OFF. • M ute ...Turns off the volume temporarily.

  • Page 60: [Advanced Operation] Command-Based Control

    Controlling the Monitor with a computer (LAN) [Advanced operation] Command-based control You can control the monitor using RS-232C commands (see page 42) via terminal software and other appropriate applications. In order to use this function, enable a connection to the monitor through the web browser.

  • Page 61: Troubleshooting

    • Hardware has a problem. Turn off the monitor and request • Is the sound muted? repair from your SHARP dealer. • Make sure the volume is not set to minimum. (When STATUS ALERT is set to OSD & LED. This varies •...
  • Page 62 Internal temperature rises quickly if the vents on the monitor are blocked. - Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust.

  • Page 63: Specifications

    When POWER SAVE MODE is set to ON. When POWER SAVE MODE is set to OFF: 1.0 W As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice.
  • Page 64 When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 65 Specifications nCompatible signal timing (PC) Digital Analog Screen resolution Hsync Vsync Dot frequency (D-sub) DVI-D HDMI DisplayPort VESA 640 × 480 31.5kHz 60Hz 25.175MHz 37.9kHz 72Hz 31.5MHz 37.5kHz 75Hz 31.5MHz 800 × 600 35.1kHz 56Hz 36.0MHz 37.9kHz 60Hz 40.0MHz 48.1kHz 72Hz 50.0MHz 46.9kHz...
  • Page 66 Specifications nCompatible signal timing (AV) Screen resolution Frequency HDMI Component 1920 × 1080p 24Hz 50Hz 59.94Hz 60Hz 1920 × 1080i 50Hz 59.94Hz 60Hz 1280 × 720p 50Hz 59.94Hz 60Hz 720 × 576p 50Hz 720 × 480p 59.94Hz 60Hz 640 × 480p(VGA) 59.94Hz 60Hz 720(1440) ×...
  • Page 67 Specifications nHDMI input terminal pins nD-sub input terminal pins (HDMI Connector) (Mini D-sub 15 pin) Function Function Function Function TMDS data 2+ TMDS clock shield Red video signal input TMDS data 2 shield 12 TMDS clock- Green video signal input 10 GND TMDS data 2- 13 CEC...
  • Page 68 Specifications nDisplayPort output terminal pins nRS-232C output terminal pins (DisplayPort 20 pin) (D-sub 9 pin) Function Function Function Function MainLane 0+ N.C. N.C. 12 MainLane 3- Received data N.C. MainLane 0- 13 Gnd Transmitted data N.C. MainLane 1+ 14 Gnd N.C.

  • Page 69: Mounting Precautions (For Sharp Dealers And Service Engineers)

    Mounting Precautions (For SHARP dealers and service engineers) • When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people. • Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
  • Page 70 PN-V701 Me EN17F(1)
