Hardware

This section describes the F5529 LaunchPad hardware.
Figure 7 shows the LaunchPad, with its important features and configuration controls. These controls are
described in this section.
Integrated USB hub and
USB-based power supply
RESET button, for
the target device
Button that invokes the
USB bootstrap loader,
for firmware updates
SLAU533B – September 2013 – Revised June 2014
Submit Documentation Feedback
Develop your own USB
applications and emulate,
using a single USB cable!
Pushbuttons and LEDs,
for user interface

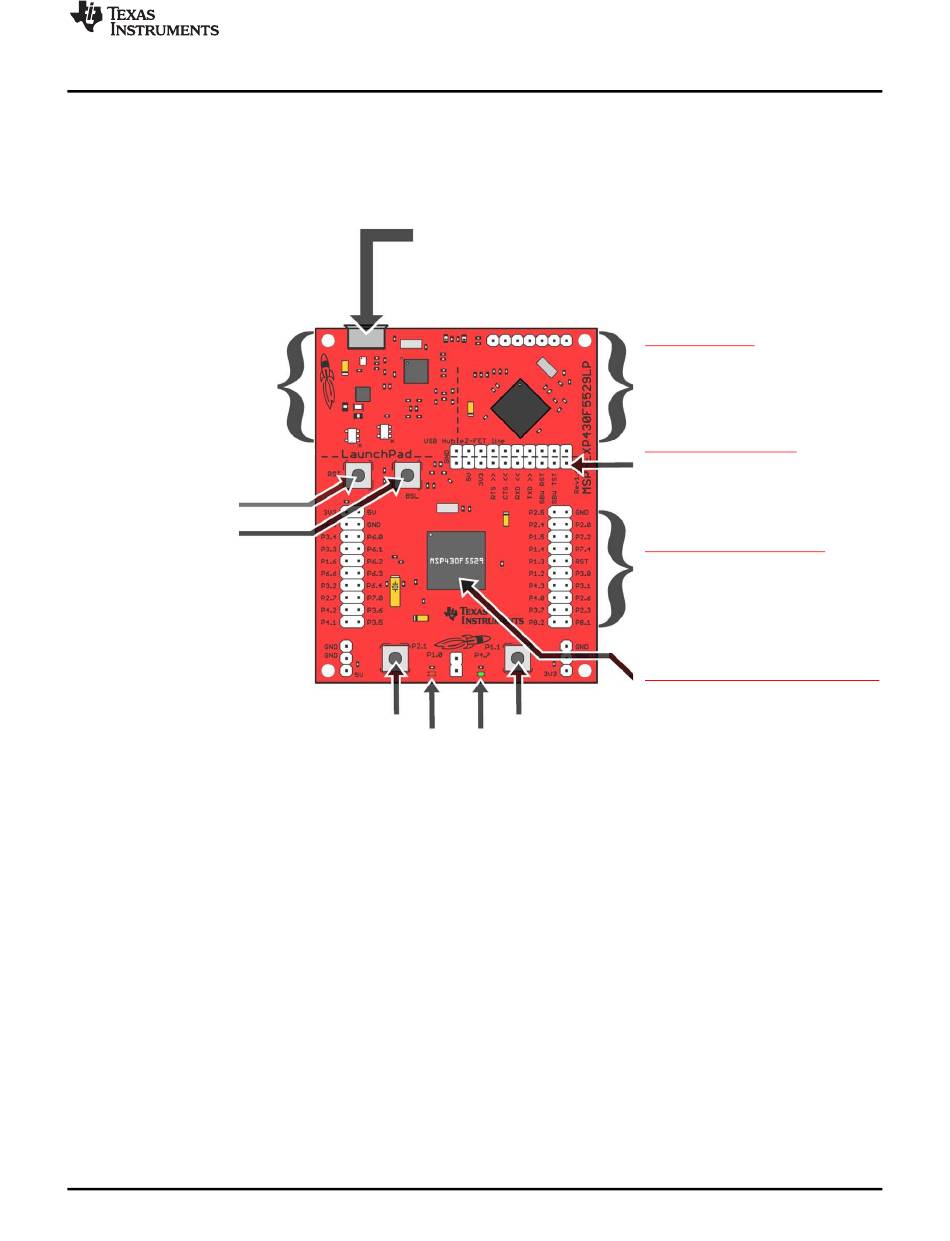

Figure 7. EVM Features and Controls
MSP-EXP430F5529LP LaunchPad™ Development Kit User's Guide
Copyright © 2013–2014, Texas Instruments Incorporated
Hardware
eZ-FET emulator
· Open-source
· Works with almost any
MSP430 target
Isolation Jumper Block
· Connect to other targets
· Allow more accurate power
measurement
40-pin BoosterPack header
· Compatible with 20-pin and
40-pin BoosterPacks
· Now allows BoosterPacks
with more functionality
MSP430F5529 USB Microcontroller
· 128KB flash, 8KB RAM
· Full-speed USB
· ADC
· 5 timers
· 4 serial interfaces (SPI, UART, I C)
· Analog comparator
· Much more !
