Features of the eZ-FET lite:
• USB debugging and programming interface
• No need to install a driver on the host Windows or Linux PC – it loads silently
• Application ("backchannel UART") virtual COM port connection with the host, over USB, up to 1 Mbaud
• LEDs for visual feedback
• Field-updateable firmware
• Supports almost all MSP430 devices
Hardware and software requirements
• PC with Windows or Linux
• MSP430.DLL 3.3.0.6 or higher
The eZ-FET lite's LEDs provide feedback to the user about the emulator's status (see
behavior is similar to that of the MSP-FET430UIF emulator.
Green LED
(Power)
OFF
ON
ON
ON
OFF
Alternating green and red blinking
2.2.3 Integrated Full-Speed USB Hub
The F5529 LaunchPad requires only one USB connection to the host, thanks to an integrated USB hub
(see Figure 11). The emulator and the target device share one USB cable and can be used
simultaneously. This simplifies the development setup.
SLAU533B – September 2013 – Revised June 2014
Submit Documentation Feedback
Table 2. eZ-FET lite LED Feedback Behavior
Red LED
(Mode)
eZ-FET lite is not connected to the PC. eZ-FET lite is not ready (for example, after an
OFF
update). Disconnect the LaunchPad from the PC and reconnect it.
eZ-FET lite is connected and ready, but the. eZ-FET lite interface has not been opened by
OFF
IDE.
ON eZ-FET lite interface is used by IDE, but no data transfer is taking place.
Blinking eZ-FET lite is in action: data transfer between eZ-FET lite and IDE is taking place.
A severe ERROR has occurred; disconnect and reconnect the eZ-FET lite. If this does not
ON
resolve the error, send for repair.
A critical update is running on the eZ-FET lite. Do not interfere with it during this time.
Wait until it is finished.
Target
F5529

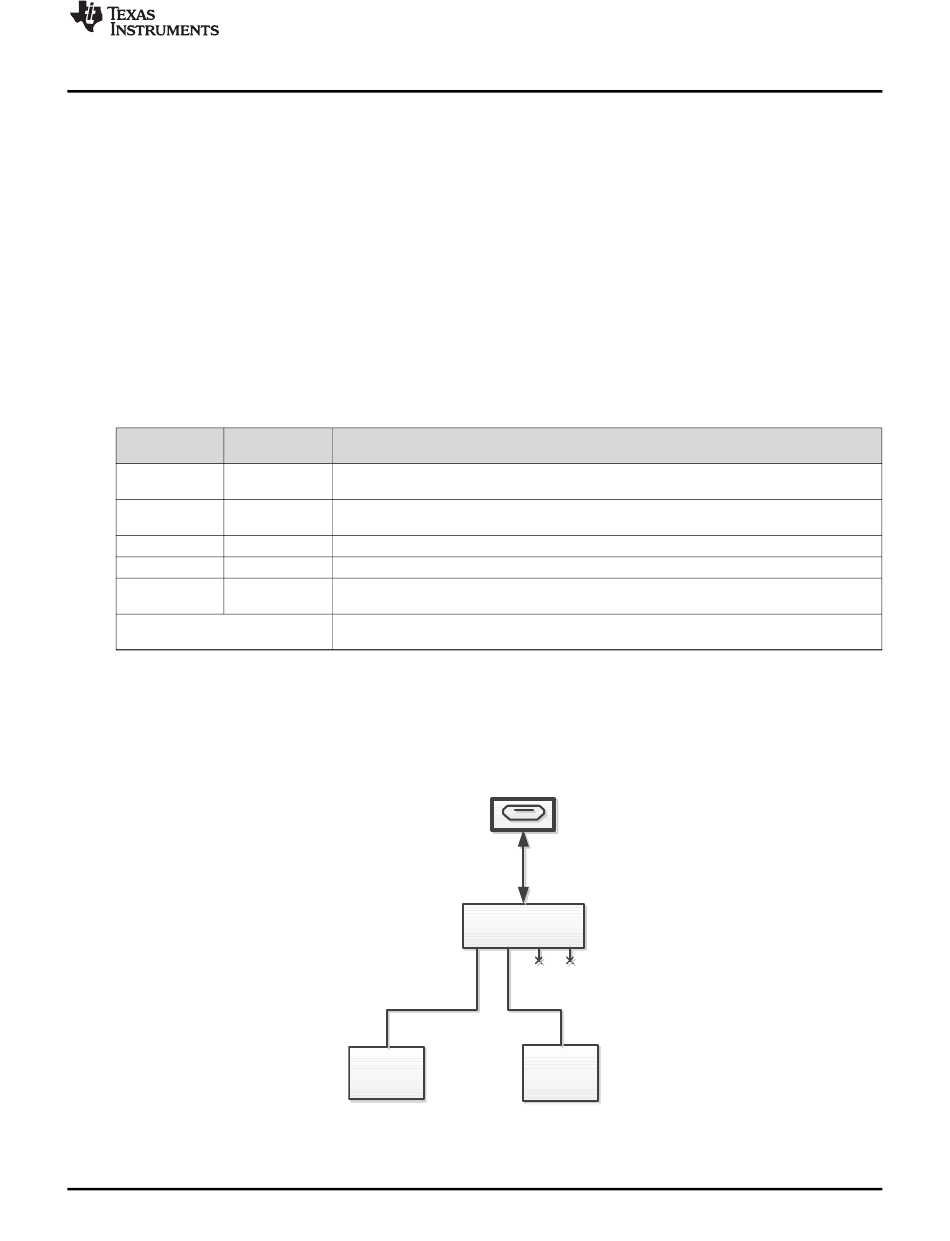

Figure 11. On-Board USB Bus Path
Copyright © 2013–2014, Texas Instruments Incorporated
Description
USB Connector
TUSB2046
Full-Speed USB Hub
eZ-FET lite
Emulator
MSP-EXP430F5529LP LaunchPad™ Development Kit User's Guide
Hardware
Table 2). This
