Öhlins SD 154 Mounting Instructions

Öhlins SD 154 Mounting Instructions

Steering damper kit for ducati monster s4

Advertisement

Quick Links

7
Make sure that all bolts are tightened
8
Make a set up of the damper. recommended click
position is 10 - 12 from closed.
NOTE!
Make sure that all bolts are tightened to the
correct torque and that nothing fouls or restricts
movement of the steering damper when it is being
fully compressed or extended.
9
Continue your work according to the Owners
Manual, section Adjustments.
WARNING!
To prevent danger, study and make certain that
you fully understand the following information
before handling the steering damper. The
manufacturer cannot be held responsible for
damage to property or personal injury that may
result from improper handling.
Take care not to scratch the contact surface of
the piston rod of the cylinder; oil could othervise
leak out.
Set-up data
Recommended set-up 10-12 clicks from closed
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
www.ohlins.com
Notes
Mounting Instructions
Mounting instructions Öhlins steering damper kit
SD 154 for

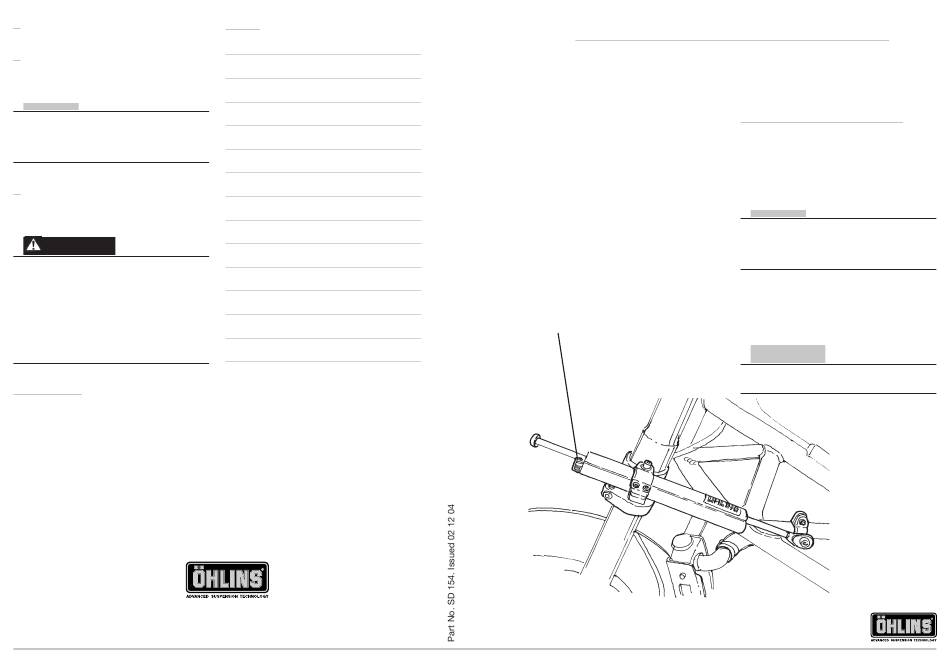

Damping adjuster
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
Ducati Monster S4

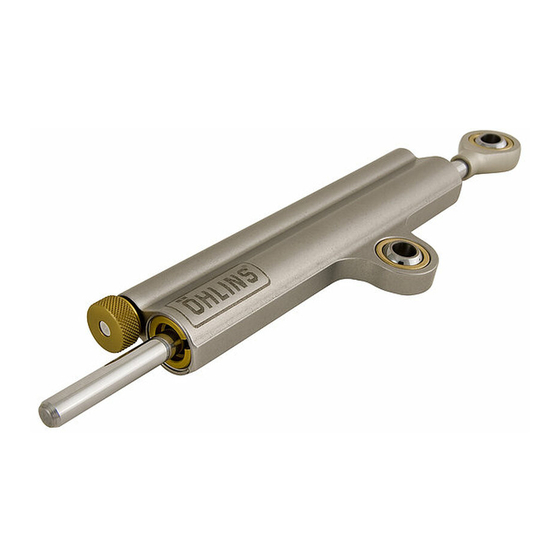

Öhlins steering damper R&T
Your Öhlins steering damper R&T features the
followinging adjuster:
The adjustment knob has 16 different positions
and counts in number of clicks from maximum
hard position.
NOTE!
When delivered the Öhlins steering damper is
dialed to recommended setting for the specific
brand and make of the motorcycle. If you have
changed the settings follow the instruction below:
The adjusters have a normal right hand thread.
Turn clockwise to fully closed (pos. zero [0]). Turn
counter clockwise to open and count the clicks
until you reach the recommended number of
clicks. See Setup data at last page.
CAUTION!
Do not use too much force, delicate sealing
surfaces can be damaged. Use fingers only.
