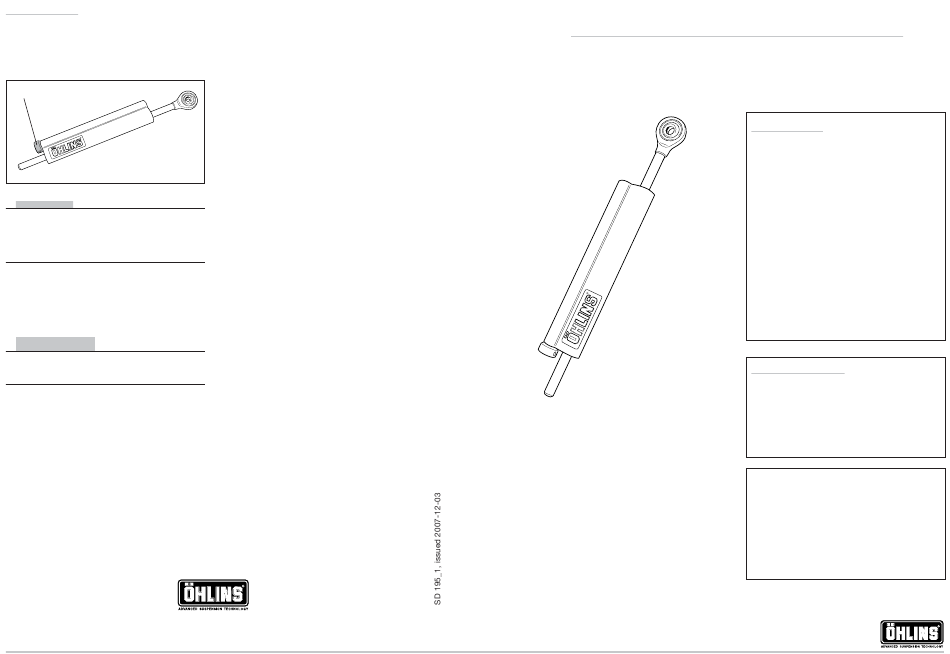

Öhlins SD195 Mounting Instruction

Adjustments

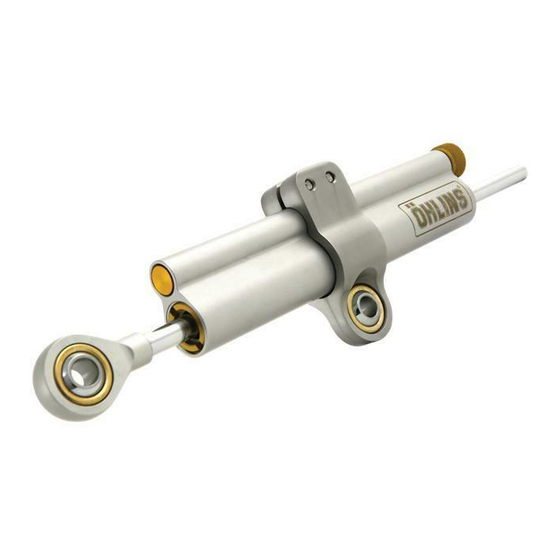

This Öhlins steering damper features an
adjustment knob with appoximately 16 positions
and counts in number of clicks from maximum
hard to soft.
Adjuster knob
NOTE!
When delivered, the Öhlins steering damper is
dialed to recommended settings for the specifi c
brand and make of the motorcycle. If you have
changed the settings, reset according to the
following:
The adjusters have a normal right hand thread.
Turn clockwise to fully closed, position 0 (zero)
clicks. Turn counter clockwise to open. Count
the clicks until you reach the recommended
number. See set-up data in this manual.
CAUTION!
Do not use force, delicate sealing surfaces can
be damaged. The adjuster should only be hand
tightened.
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
www.ohlins.com
Mounting Instruction
Öhlins steering damper kit SD195
for Yamaha R6
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.

Kit Contents

Before installing the steering damper, please
check the contents of the kit. If anything is
missing, please contact your Öhlins dealer.
Part number
Steering damper, stroke 63 02260-10 (1)
Frame bracket assembly 02232-51 (1)
Shims 01430-14 (10)
Bracket assembly SD 02230-08 (1)
Sleeve (6/14/15) 02239-01 (1)
Tefl on spacer 02259-01 (1)
Screw (MC6S 6 x 100) 01046-47 (1)
Triple clamp bracket 02270-34 (1)
Sleeve (8/13.5/12.5) 02238-06 (1)
Screw (M6SF 8 x 45) 00432-05 (1)
Screw (K6S 8 x 20) 05404-02 (1)
Washer 00426-04 (1)
Öhlins sticker 00192-01 (2)
Öhlins sticker 00194-10 (2)
Öhlins Owner's manual (1)

Before Installing

Öhlins Racing AB cannot be held responsible
for any damage to the steering damper or
vehicle, or injury to persons, if the instruc-
tions for fitting and main tenance are not
followed exactly. Similarly, the warranty will
become null and void if the instructions are
not adhered to.
Öhlins products are subject to continuous
improvement and development. Conse-
quently, although these instructions include
the most up-to-date information available
at the time of printing, there may be minor
differences between your steering damper
and this manual. Please consult your Öhlins
dealer if you have any questions regarding
the contents of this manual.
