Öhlins SD 047 Mounting Instruction

Öhlins SD 047 Mounting Instruction

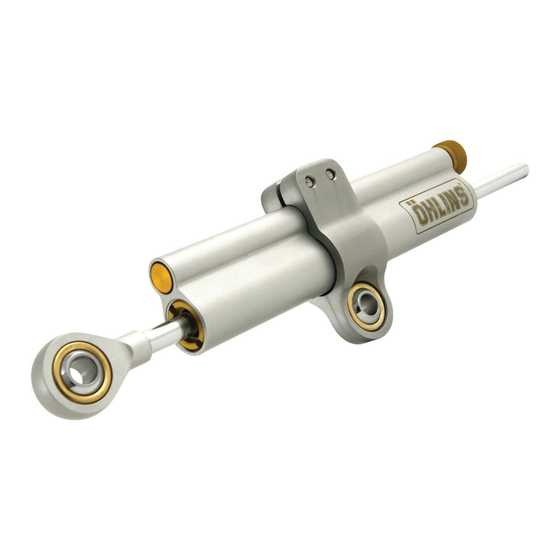

Steering damper for yamaha r1/mt10

Advertisement

Quick Links

Note!
1
Please note that there can be small differences
between your product and the images in
these instructions.
Note!
1
Please note that during storage and transport,
especially at high ambient temperature, some
of the oil and grease used for assembly may
leak and stain the packaging. This will not cause
damage to the product, wipe off the excessive
oil or grease with a cloth.

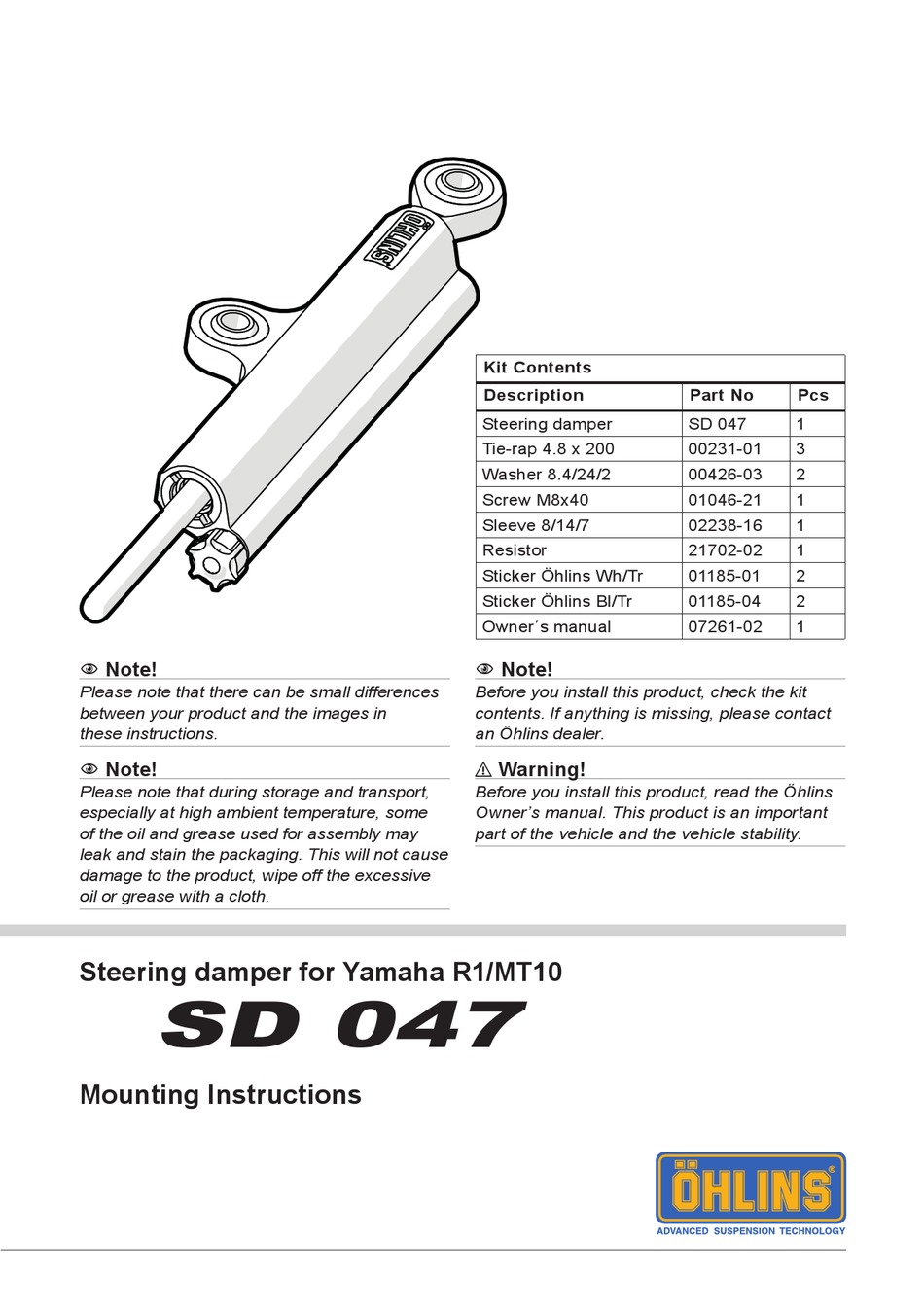

Steering damper for Yamaha R1/MT10
SD 047
Mounting Instructions
Kit Contents
Description
Steering damper
Tie-rap 4.8 x 200
Washer 8.4/24/2
Screw M8x40
Sleeve 8/14/7
Resistor
Sticker Öhlins Wh/Tr
Sticker Öhlins Bl/Tr
Owner´s manual
Note!
1
Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.
Warning!
Before you install this product, read the Öhlins
Owner's manual. This product is an important
part of the vehicle and the vehicle stability.
Part No
Pcs
SD 047
1
00231-01
3
00426-03
2
01046-21
1
02238-16
1
21702-02
1
01185-01
2
01185-04
2
07261-02
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SD 047 and is the answer not in the manual?

Questions and answers

Summary of Contents for Öhlins SD 047

  • Page 1 Kit Contents Description Part No Steering damper SD 047 Tie-rap 4.8 x 200 00231-01 Washer 8.4/24/2 00426-03 Screw M8x40 01046-21 Sleeve 8/14/7 02238-16 Resistor 21702-02 Sticker Öhlins Wh/Tr 01185-01 Sticker Öhlins Bl/Tr 01185-04 Owner´s manual 07261-02 Note! Note! Please note that there can be small differences...
  • Page 2 MOUNTING INSTRUCTIONS ⚠ Warning! We strongly recommend to let an Öhlins dealer install this product. ⚠ Warning! If you work with a lifted vehicle, make sure that it is safely supported to prevent it from tipping over. Note! When you work with this product, see the vehicle service manual for vehicle specific procedures and important data.
  • Page 3 MOUNTING INSTRUCTIONS Instruction for MT10: Remove Right hand side “air intake cover” and wiring cover. Follow original steering damper wiring to connector and disconnect it. Connect the Ohlins Resistor (21702-02), supplied in this kit. Attach the resistor with tie-raps provided. Remove the original steering damper.
  • Page 4 MOUNTING INSTRUCTIONS Common instruction Install to the frame Install the Öhlins steering damper to the frame bracket. Install in this order: 1. Original screw 2. Washer (00426-03) 3. Original washer 4. Ball joint 5. Original rubber/steel washer (rubber egde facing down) 6.
  • Page 5 MOUNTING INSTRUCTIONS This page intentionally left blank...
  • Page 6 MOUNTING INSTRUCTIONS This page intentionally left blank...
  • Page 7 MOUNTING INSTRUCTIONS This page intentionally left blank...
  • Page 8 ADJUSTMENTS ⚠ Warning! Before you ride/drive, always make sure that the setup is according to the recommended setup data. Read about adjustments and setting up in the Öhlins Owner’s Manual before you make any adjustments. Contact an Öhlins dealer if you have any questions about setting up.
