Öhlins SD 064 Mounting Instructions

Steering damper for bmw s1000rr

Advertisement

Quick Links

otee!
1
Please note that there can be small differences
between your product and the images in
these instructions.
otee!
1
Please note that during storage and transport,
especially at high ambient temperature, some
of the oil and grease used for assembly may
leak and stain the packaging. This will not cause
damage to the product, wipe off the excessive
oil or grease with a cloth.
Steering damper for BMW S1000RR
SD 064
Mounting Instructions

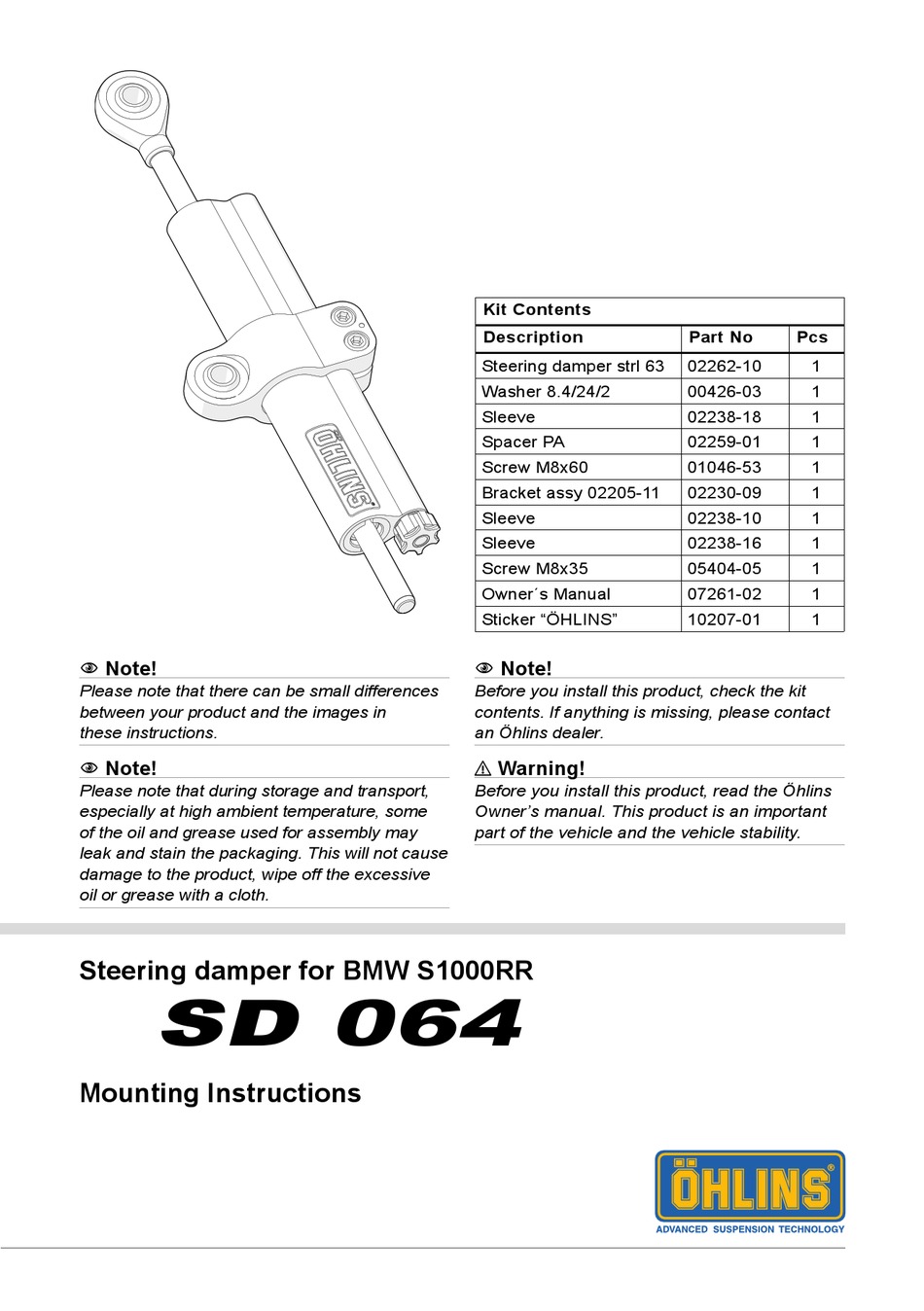

Kit Contents
Description
Steering damper strl 63
Washer 8.4/24/2
Sleeve
Spacer PA
Screw M8x60
Bracket assy 02205-11
Sleeve
Sleeve
Screw M8x35
Owner´s Manual
Sticker "ÖHLINS"
otee!
1
Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.
Warninge!
Before you install this product, read the Öhlins
Owner's manual. This product is an important
part of the vehicle and the vehicle stability.
Part
o
Pcs
02262-10
1
00426-03
1
02238-18
1
02259-01
1
01046-53
1
02230-09
1
02238-10
1
02238-16
1
05404-05
1
07261-02
1
10207-01
1
