Steering damper brackets kit for Yamaha R25/R3
- To be used with SD 000 -
SD 053
Mounting Instructions

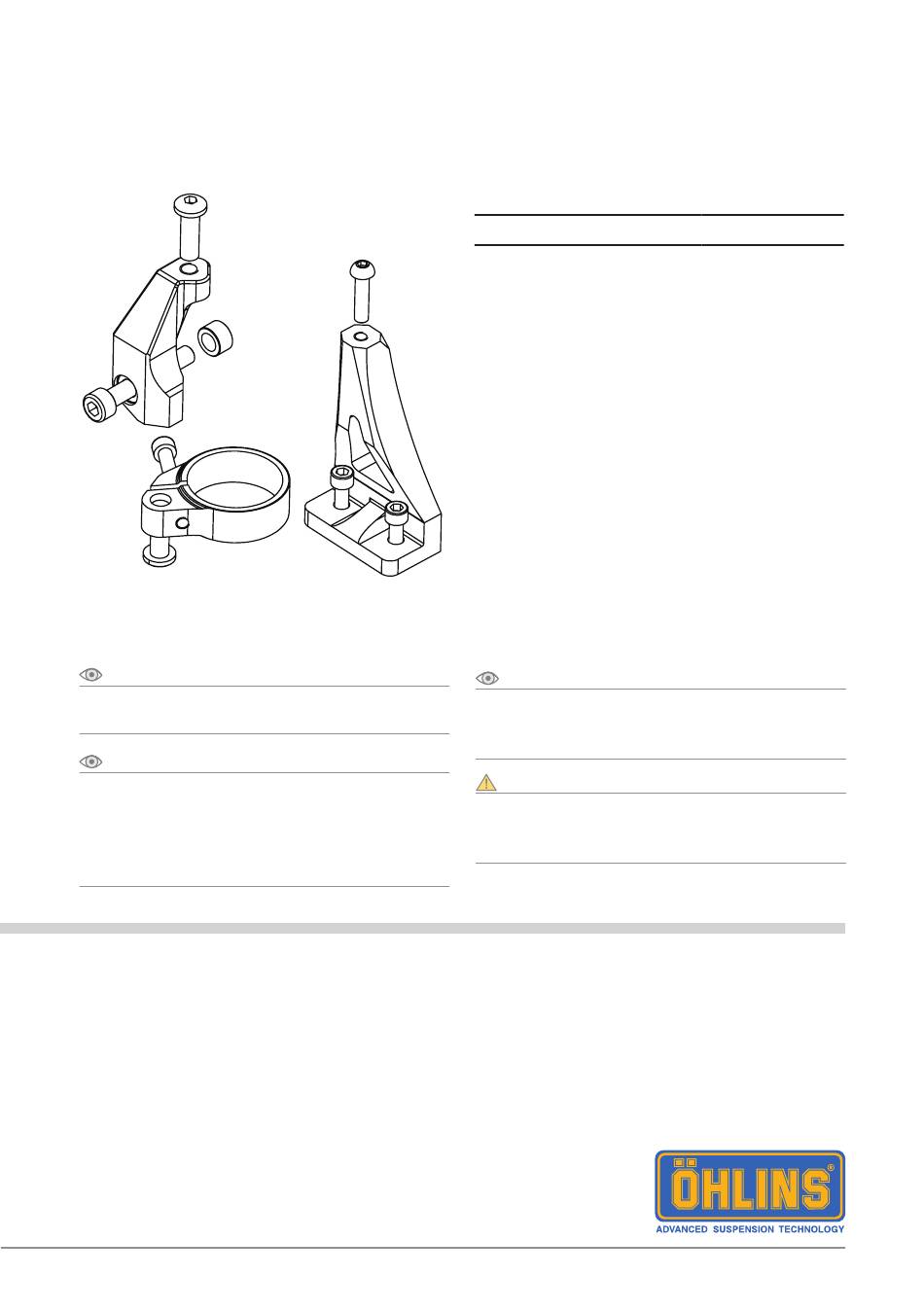

Kit Contents
Description
Bracket-frame
Bracket-triple clamp
Clamp-fork leg
Sleeve 6/14/15
Sleeve 8.5/13.5-14
Spacer 18/13.3/1.5
Washer 6.4/18/1.6
Screw M6x25
Screw M8x25
Screw M6x20
Screw M6x25
Screw M8x50
Note!
Before installing this product, check the contents of
the kit. If anything is missing, please check an Öhlins
dealer.
Warning!
Before installing this product, read the Öhlins Owner's
Manual. This product is an important part of your vehicle
and will affect the stability.
Part No
Pcs
02272-25
1
02270-38
1
02235-20
1
02239-01
1
61123-10
1
02259-01
1
00426-04
1
05404-06
1
05404-14
2
01046-16
2
01046-17
1
01046-25
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Öhlins SD 053
Summary of Contents for Öhlins SD 053
- Page 1 This is in no way detrimental to the product, wipe off the excessive oil/grease with a cloth. Steering damper brackets kit for Yamaha R25/R3 - To be used with SD 000 - SD 053 Mounting Instructions...
- Page 2 MOUNTING INSTRUCTIONS Note! Warning! Before mounting this product clean the vehicle It is advisable to have an Öhlins dealer install this thoroughly. product. Note! Warning! When working on this product, always see the Vehicle If working on a raised vehicle, ensure it is securely Service Manual for vehicle specific procedures and supported so that it will not tip over.
- Page 3 MOUNTING INSTRUCTIONS Remove the fairing by removing the 2 screws. Remove the front seat, by removing the 2 screws.
- Page 4 MOUNTING INSTRUCTIONS Remove the fuel tank cover, by removing the 5 screws 1, 2 (including another side) and 3, which is in front of the fuel tank. Remove the screws 1,2,3,4 (wheel axle ) in order to remove the wheel, caliper and the front mud guard.
- Page 5 MOUNTING INSTRUCTIONS Loosen the handlebar and triple clamp screws in order to slide down the left fork leg.
- Page 6 MOUNTING INSTRUCTIONS Install the clamp fork leg(02235-20) (don’t tighten yet) to the left-front fork, then lift the left-front fork to the initial position.Tighten the bottom triple clamp at torque value as specified on service manual. Assy the brackets and steering damper according to diagram P1 Adjust the steering damper by letting it slide in its bracket assembly so that the steering...
- Page 7 MOUNTING INSTRUCTIONS Tighten the bolt to the correct torque Screw 05404-06 Screw M6 7 Nm Screw Screw M8 15 Nm 05404-14 Washer 00426-04 Spacer 02259-01 Sleeve Sleeve 61123-10 02239-01 Bracket, triple clamp 02270-38 Bracket, frame Screw 02272-25 01046-25 Clamp, fork leg 02235-20 Screw 01046-17...
- Page 8 RECOMMENDED SETTING FOR SD 000 Warning! Before riding, always make sure that the basic settings made by Öhlins are according to recommended Adjuster Set-up Data. Read about adjustments and setting up Knob in the Öhlins Owner’s Manual before you make any adjustments.
