Mounting instructions
SUR 3A00, 4A00, 3A01, 4A01, 3A02, 4A02
SUBARU Impreza WRX, Rear
Shock absorber models
Left Rear Gravel
SUR 3A00
Right Rear Gravel
SUR 4A00
Left Rear Tarmac, rough
SUR 3A01
Right Rear Tarmac, rough
SUR 4A01
Left Front, Tarmac, smooth
SUR 3A02
Right Front, Tarmac, smooth
SUR 4A02
Compression
adjuster
Spring
preload
adjuster
Rebound adjuster

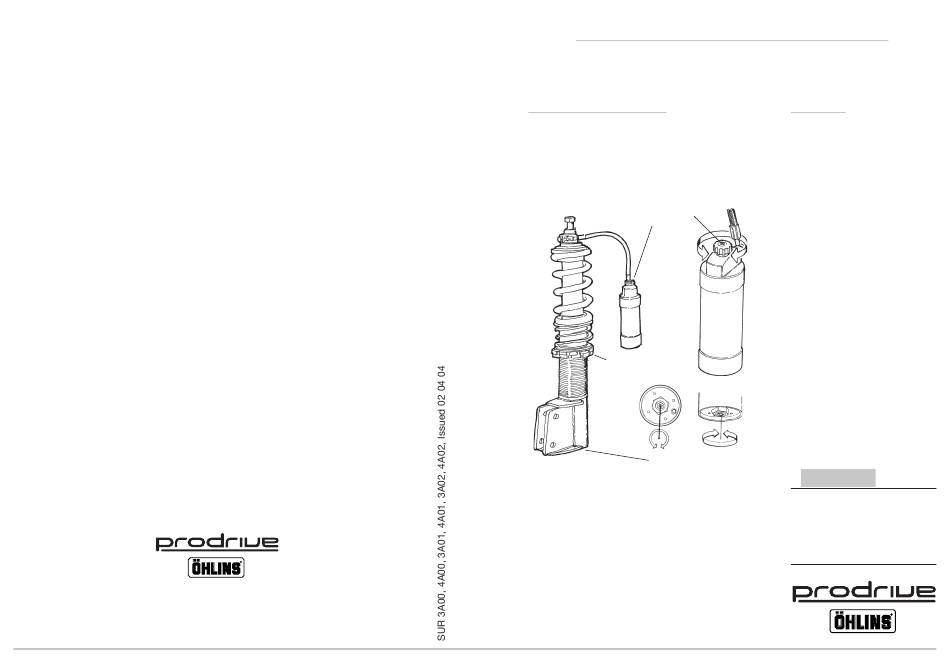

Adjusters
Your Öhlins shock absorber type
46 HRC features the following
adjusters:
Compression damping
Adjuster knob at the top of the
reservoir.
Rebound damping
Adjuster screw (3 mm allen key)
at the bottom of the damper body
Spring preload
Adjustment rings under the
spring. Adjustments are made
with C-spanners.
When delivered the shock
absorber is dialled in to Öhlins
recommended settings. If you
have "played" with the adjusters,
please check the settings.
The adjusters have a normal
right-hand thread. Click position
zero (0) is when the adjusters are
turned clockwise to fully closed.
The first click you feel, when you
turn it counter clockwise (to
open) is (1) and so on.
CAUTION!
Using too much force when
closing the adjuster will destroy
vital sealing surfaces. Use no tools
to the adjusters, simply your fin-
gers and a 3 mm allen key to the
rebound.
