Öhlins SD 168 Mounting Instructions

7
Tighten the bolts to correct torque. – M5 screws
5 Nm, M6 screw 10 Nm.
NOTE!
Make sure that all bolts are tightened to the correct
torque and that nothing fouls or restricts movement
of the steering damper when the suspension is
being fully compressed or extended.
Notes
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
www.ohlins.com
8
Continue your work according to the Owners
Manual, section Adjustments.
Set-up data
Recommended set-up 10 - 12 clicks from closed
Mounting Instructions

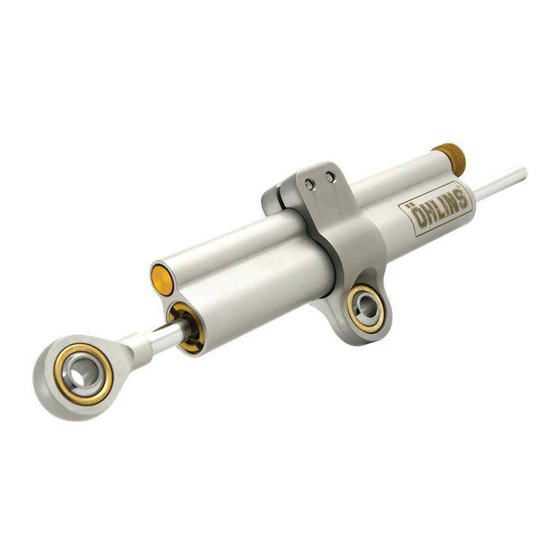

Öhlins steering damper kit
SD 168 for Ducati 999

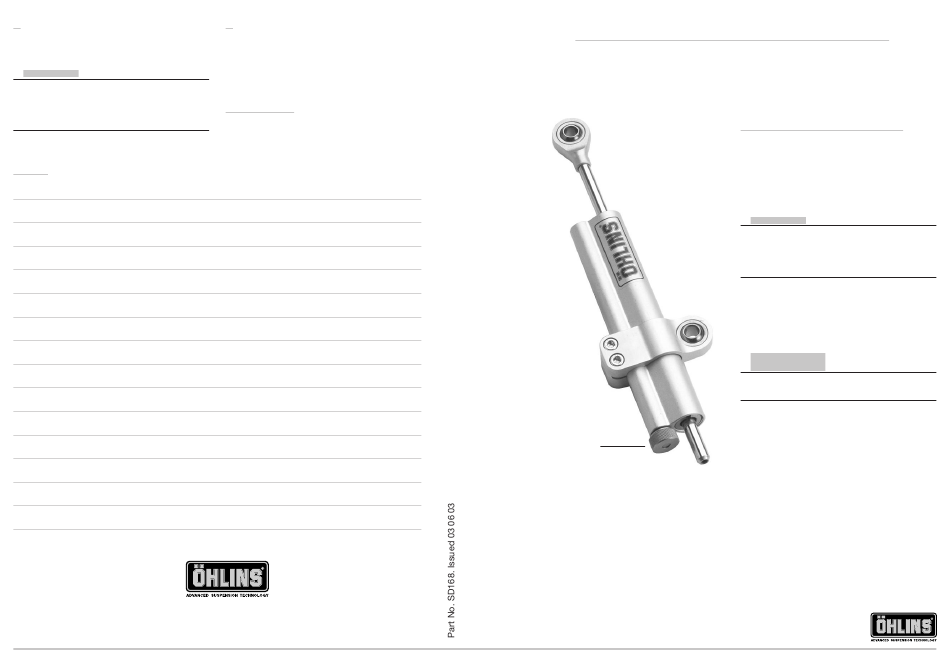

Adjuster
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
Öhlins steering damper R&T
Your Öhlins steering damper R&T features the
following adjuster:
The adjustment knob has 16 different positions
and counts in number of clicks from maximum
hard position.
NOTE!
When delivered the Öhlins steering damper is
dialed to recommended setting for the specific
brand and make of the motorcycle. If you have
changed the settings follow the instruction below:
The adjusters have a normal right hand thread.
Turn clockwise to fully closed (pos. zero [0]). Turn
counter clockwise to open and count the clicks
until you reach the recommended number of
clicks. See Setup data at last page.
CAUTION!
Do not use too much force, delicate sealing
surfaces can be damaged. Use fingers only.
