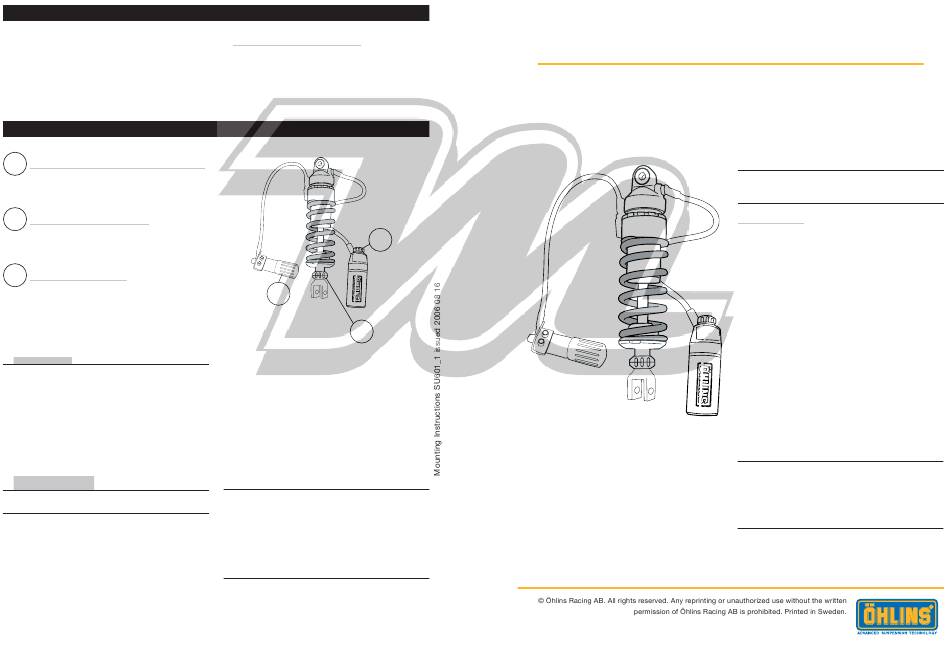

Öhlins SU601 Mounting Instructions

S E T-U P DATA
Shock absorber length 306 mm
Stroke 64 mm
A D J U S T ME NTS
1 Hydraulic spring preload adjuster
Turn the knob on the hydraulic adjuster
clockwise to set the spring preload. Turn
counter clockwise to release it.
2 Compression damping
Adjust by turning the knob on the reservoir.
Turn clockwise to increase damping, turn
counter clockwise to decrease it.
3 Rebound damping
Turn the wheel on the piston shaft above
the end bracket.
Read more about setting the shock absorber in
your Öhlins Owner's Manual.
NOTE!
When delivered the Öhlins shock absorber is
dialed to recommended settings for the spe-
cifi c brand and make of the vehicle. If you have
changed the setting, reset according to the
following:
The adjusters have a normal right hand thread.
Turn clockwise to fully closed. Turn counter
clockwise to open and count the clicks until you
reach the recommended number.
CAUTION!
Do not use force, delicate sealing surfaces can
be damaged. Handtighten only.
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
www.ohlins.com
Recommended settings:
Rebound adjustment 12 clicks
Compression adjustment 10 clicks
Spring preload 14 mm
2
1
3
Öhlins products are subject to continuous
improvement and development. Therefore,
although these instructions include the most
up-to-date information available at the time of
printing, there may be minor differences between
your product and this manual. Please consult
your Öhlins dealer if you have any questions
regarding the contents of the manual.
Mounting Instructions
Shock absorber SU601
for GSF 1200 Bandit
Before installing this product, check the contents
of the kit listed below. If anything is missing,
please contact your Öhlins dealer.
Kit Contents
Part no.
Shock absorber SU601
Screw 00429-11
Nut 00430-01
Rubber mount 00230-01
Hose clamp 00643-02
Tie wrap 00231-01
Öhlins Sticker 00192-01
Memo Notes Sticker 01180-01
Öhlins Owner's Manual 07241-02
Before installing
Öhlins Racing AB cannot be held responsible for
any damage to shock absorber or the vehicle, or
injury to persons, if the instructions for install-
ing and maintenance are not followed exactly.
Similarly, the warranty will become null and void
if the instructions are not adhered to.
Pcs.
1
1
1
2
2
4
2
1
1
