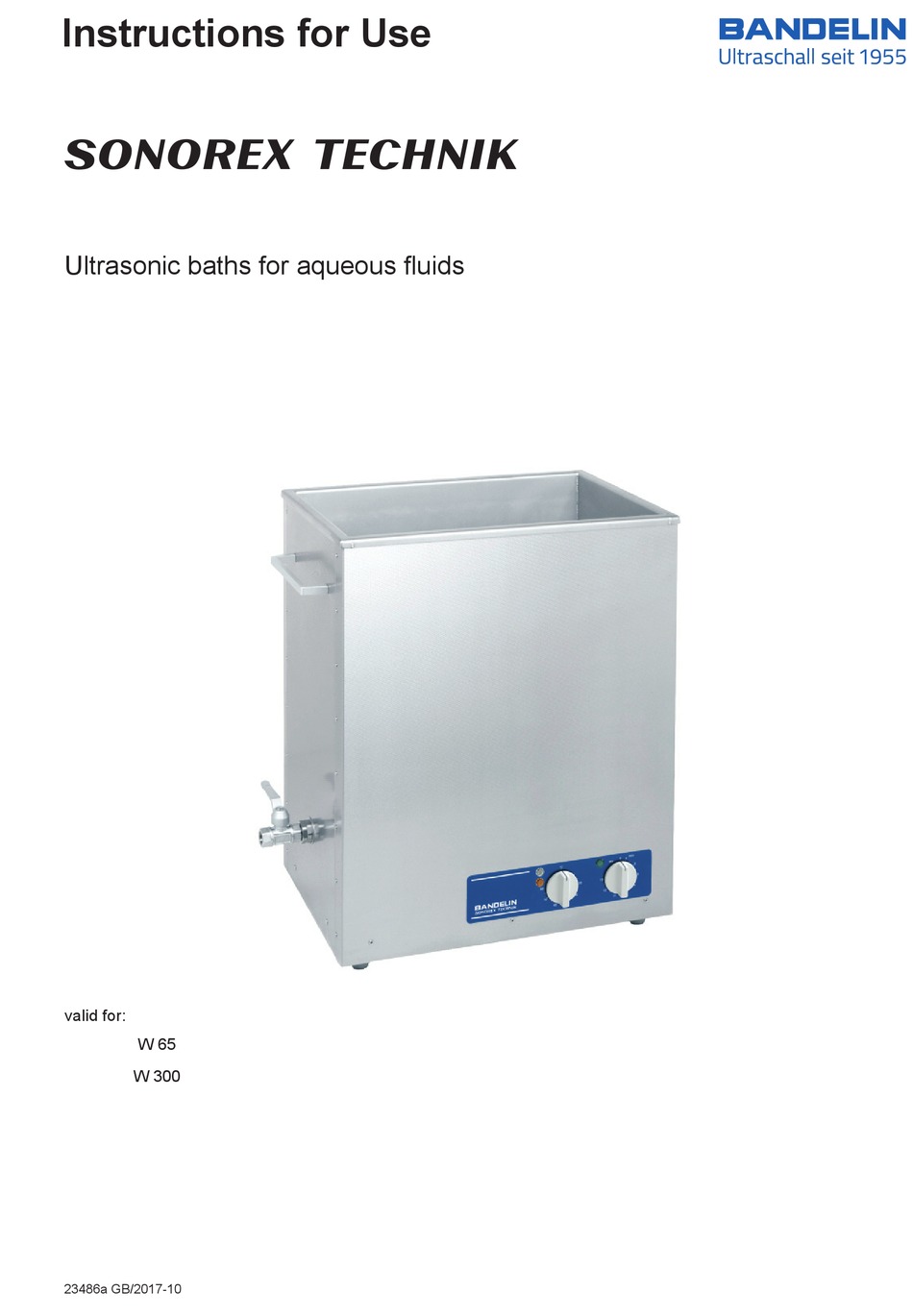

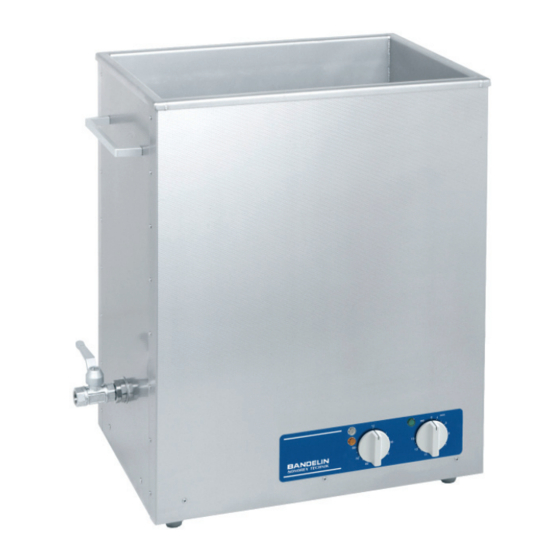

- Page 1 Instructions for Use Ultrasonic baths for aqueous fl uids valid for: W 65 W 300 23486a GB/2017-10...
- Page 2 Copyright & limit of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German-language original is the binding version of this document. Any differences in the translation are not binding and have no legal effect.
- Page 3 Identifi es instructions that must be followed in the described Instructions sequence. 23486a GB/2017-10 3 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Instructions for use .....................15 General use ........................16 Further information .....................19 4.3.1 Degassing ........................19 4.3.2 Disposal of sonication fl uids ..................19 4 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 Taking the unit out of service ..................28 Key words - not applicable - ....................28 Informative appendices Decontamination - sample copy 23486a GB/2017-10 5 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Product Description
• Outlet with 3-way ball valve (7) for easy draining/fi lling of the bath fl uid SONOREX TECHNIK W 300 6 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Mode Of Operation
A declaration of conformity can be requested from the manufacturer by providing the serial number. 23486a GB/2017-10 7 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Technical Data, General
It is suitable for use in facilities and areas which are directly connected to a public low- voltage supply network, e.g. medical laboratory facilities. 8 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Tank Size W 65
* In order to improve the effect, the ultrasound is modulated, resulting in a 4-fold ultrasonic nominal output value as ultrasonic peak power. 23486a GB/2017-10 9 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 10: Warning And Safety Precautions
• Repairs must only be conducted by authorised skilled personnel or by the manufacturer. • Defective parts may only be replaced with original SONOREX parts. 10 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 11: Preparation
Set up the ultrasonic bath in a dry room. Assemble the ball valve, hose sockets and hose included in the delivery, as follows: 23486a GB/2017-10 11 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 12: Start-Up
(maximum of 1 to 2 seconds), a hissing noise should be heard. Set to "0" once again. Hang accessories in the ultrasonic bath and place lid on top. 12 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Operation
The timer only works if mains voltage is present. 23486a GB/2017-10 13 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 14: Heating
For this purpose, the objects are placed in a basket and hung inside the tank which is fi lled with bath fl uid. Sonication fl uid 14 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: Instructions For Use
• In order to save time during use, the bath fl uid may be preheated during degassing. 1 MILLNER, R.: Wissenspeicher Ultraschalltechnik, Fachbuchverlag publishing house, Leipzig 1987 23486a GB/2017-10 15 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: General Use
Turn on the ultrasound with the turning knob and sonicate for 30 min for degassing, see chapter 3.1.1. 16 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 17 Place lid on top. Using the turning knob, set the desired sonication time, see chapter 3.1.1. 23486a GB/2017-10 17 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 18 After emptying the oscillating tank, rinse it thoroughly. Wipe dry with a soft cloth. For additional care instructions, see chapter 5. 18 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 19: Further Information
In every case, the statutory provisions and regulations of municipal wastewater plants must be adhered to. Information is provided by municipal wastewater plants as well as by environmental agencies. 23486a GB/2017-10 19 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Maintenance And Cleaning
• Wipe down only the exterior of the housing with a damp cloth and leave to dry or wipe dry. 20 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Warehousing / Storage
Ordinary aluminium foil is used to conduct the test. Next, a comparison is made with previously-generated foils, if applicable. Detailed information available upon request. 23486a GB/2017-10 21 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 22: Inspection Of The Fl Oat Switch For The W 300
Strong erosion marks appear at the tank bottom lead to loss of power Any malfunctions must be communicated in writing to the manufacturer. 22 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 23: Customer Service
The form can be downloaded from the Internet as a PDF fi le: www.bandelin.com - Downloads ... A sample copy can be found in the appendix. 23486a GB/2017-10 23 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 24: Exchanging Fuses
Turn the bath upright and reconnect the mains plug. The ultrasonic bath is ready for operation once again. 24 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 25: Accessories
WK 300 S 8348 interior dimensions 930 × 460 × 90 mm (L×W×H) Optional accessories - not applicable - 23486a GB/2017-10 25 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 26: Chemical Preparations - Recommendations
25 l ing, polishing and lapping with corrosion protection, 200 l residue, etc. mildly acidic, pH 3.0 (1%) application 5% 26 / 32 23486a GB/2017-10 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 27 200 l may become corroded. alkaline, pH 11.9 (1%) residues, etc. application 0.1-10 % 23486a GB/2017-10 27 / 32 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 28: Consumable Materials - Not Applicable
If the ultrasound no longer works, it must be appropriately disposed of. Some electrical components are considered to be toxic waste. Key words - not applicable - BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com... - Page 30 Decontamination - sample copy Certifi cate of Decontamination ! ! ! CAUTION ! ! ! This form must be visibly affi xed to the outside of the package! This "Certifi cate of Decontamination" is intended to protect the occupational health and safety of our employees pursuant to the German Protection against Infection Act and trade association accident prevention regulations.
- Page 31 Certifi cate of Decontamination ! ! ! CAUTION ! ! ! This form must be visibly affi xed to the outside of the package! Legally binding statement I/We hereby declare that the device and accessories contained in this package have been cleaned and/or disinfected pursuant to current laws and regulations and that the information provided in this declaration is correct and complete: Company /...
- Page 32 Note: The user instructions in this and other languages, as well as further information, can be found on the enclosed CD.
