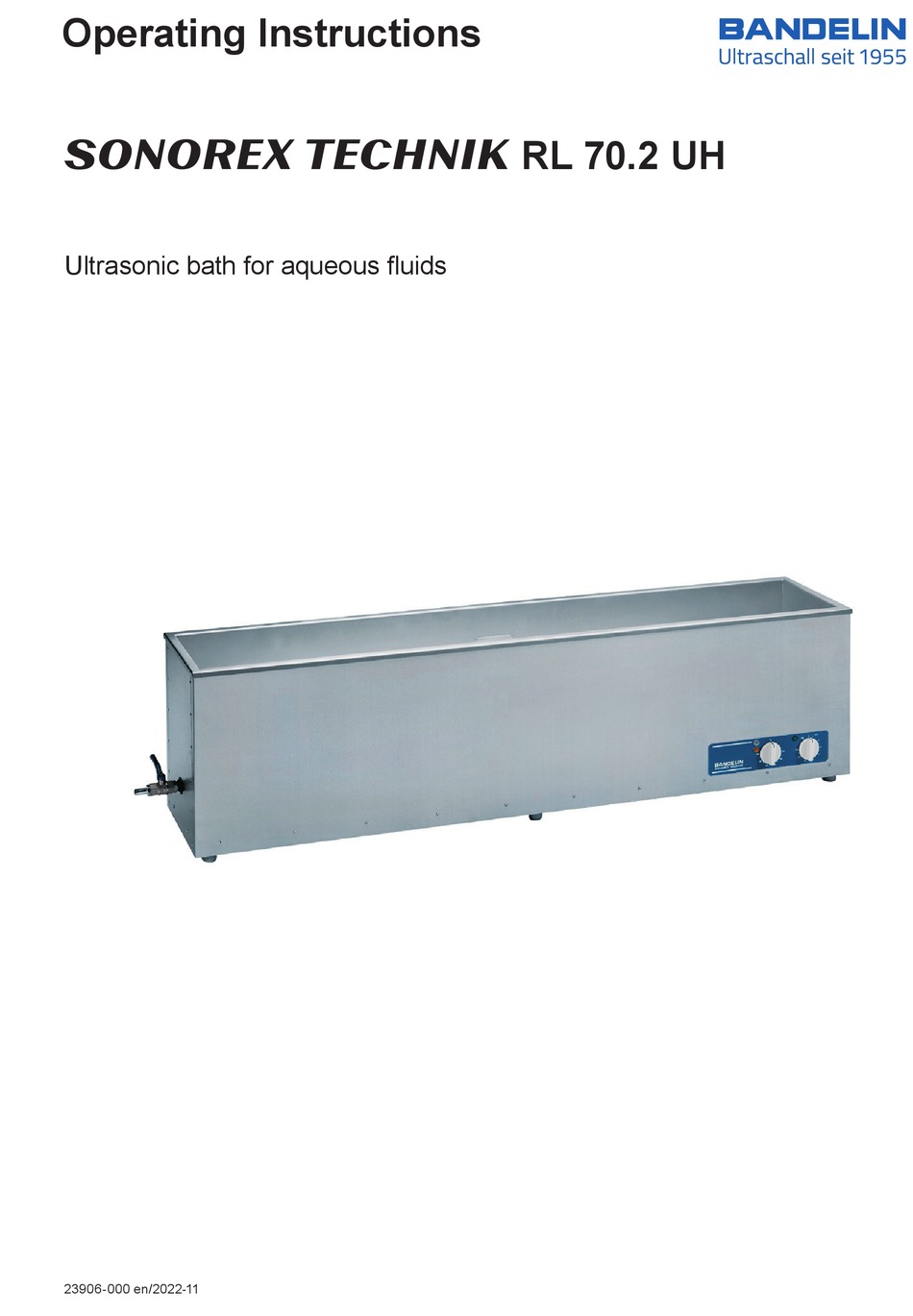

- Page 1 Operating Instructions 3 4 RL 70.2 UH Ultrasonic bath for aqueous fl uids 23906-000 en/2022-11...
- Page 2 Copyright & limitation of liability This document may not be reproduced, whether in full or in part, without the prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter "BANDELIN". The German language original is the binding version of this document. Any diff erences in the translation are not binding and have no legal eff...
- Page 3 Identifi es instructions that must be carried out in the described Instructions sequence. 23906-000 en/2022-11 3 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Instructions for use .....................14 General use ........................15 Further information .....................18 4.3.1 Degassing ........................18 4.3.2 Disposal of sonication liquids ..................18 4 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 Taking the unit out of service ..................27 Keyword index - not applicable - ..................27 Informative annexes Decontamination form - sample copy 23906-000 en/2022-11 5 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Product Description
• Rubber feet for safe positioning (6) • Outlet with ball valve (7) for easy draining of the bath liquid SONOREX TECHNIK RL 70.2 UH 6 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Mode Of Operation
A declaration of conformity can be requested from the manufacturer by providing the serial number. 23906-000 en/2022-11 7 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Technical Data
* In order to improve the eff ect, the ultrasound is modulated whereby the ultrasonic nominal power increases 4-fold as ultrasonic peak power. 8 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Warnings And Safety Instructions
• If the unit is passed on to others, the operating instructions with the safety instructions must also be handed over. 23906-000 en/2022-11 9 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 10 • Repairs must only be conducted by authorised skilled personnel or by the manufacturer. • Defective parts may only be replaced with original SONOREX parts. 10 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 11: Preparation
Hang accessories in the ultrasonic bath and place lid on top. Connect peripheral devices if required – see additional documentation. 23906-000 en/2022-11 11 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 12: Operation
The timer will only work if mains voltage is present. 12 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Heating
• The heating will automatically turn on every time that the bath temperature drops below the set temperature. Miscellaneous functions - not applicable - Device signals - not applicable - 23906-000 en/2022-11 13 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 14: Use
• Replace used sonication fl uids, do not refresh by adding more liquid. Notes - Inserting objects • Fully remove air bubbles from cavities (e.g. blind holes). 14 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: General Use
Fill carefully up to the fi lling level mark, avoid the formation of foam as much as possible. 1 MILLNER, R.: Wissenspeicher Ultraschalltechnik, Fachbuchverlag publishing house, Leipzig 1987 23906-000 en/2022-11 15 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 16 • For technical reasons, the ultrasonic eff ect is weaker on the outlet side. Do not place more heavily soiled objects in the basket over the outlet. 16 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 17 After emptying the oscillating tank, rinse it thoroughly. Then dry with a soft cloth. For further care instructions, see chapter 5. 23906-000 en/2022-11 17 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 18: Further Information
In every case, the statutory provisions and regulations of municipal wastewater plants are to be adhered to. Information is provided by municipal wastewater plants as well as by environmental agencies. 18 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 19: Maintenance And Cleaning
During long periods of non-use, the ultrasonic bath should be stored in a cool, dry location. The lid should be placed on top in order to protect the bath from outside contamination. 23906-000 en/2022-11 19 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Maintenance And Repair
Commercially-available aluminium foil is used to conduct the test. Next, a comparison is made with previously-generated foils, if applicable. Detailed information is available upon request. 20 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Troubleshooting
Repair service: Email: Tel.: +49-(0)-30 – 768 80 – 13 info@bandelin.com Fax: +49-(0)-30 – 76 88 02 00 13 23906-000 en/2022-11 21 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 22: Certifi Cate Of Decontamination
Turn the bath upright and reconnect the mains cable. The ultrasonic bath is ready once again for operation. 22 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 23: Accessories
2 units for the reception of up to 10 gate sawblades with a thickness of up to 5 mm 23906-000 en/2022-11 23 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 24: Chemical Preparations - Recommendations
• Do not ingest or inhale the agents and do not allow them to come into contact with the eyes or skin. • Specimens in powder form may only be used fully dissolved. 24 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 25 11.1 (1% in DI water) application 0.25-5% Dilute with DI water. 23906-000 en/2022-11 25 / 30 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 26 Not for light metals, tin, zinc. application 2-20% residues, etc. All TICKOPUR preparations may be used with submersion and wiping procedures. 26 / 30 23906-000 en/2022-11 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 27: Consumable Materials - Not Applicable
If the ultrasonic bath no longer works, it must be disposed of appropriately. Some electrical parts are subject to special waste legislation. Keyword index - not applicable - BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com... - Page 28 Decontamination form - sample copy Certifi cate of Decontamination ! ! ! CAUTION ! ! ! Attach this form in a clearly visible location on the outside of the packing! This "Certifi cate of Decontamination" is intended to protect the occupational health and safety of our employees pursuant to the German Protection against Infection Act and the trade association accident prevention regulations.
- Page 29 Certifi cate of Decontamination ! ! ! CAUTION ! ! ! Attach this form in a clearly visible location on the outside of the packing! Legally binding statement I/We hereby declare that the device and accessories contained in this package have been cleaned and/or disinfected pursuant to current laws and regulations and that the information provided in this declaration is correct and complete: Company /...
