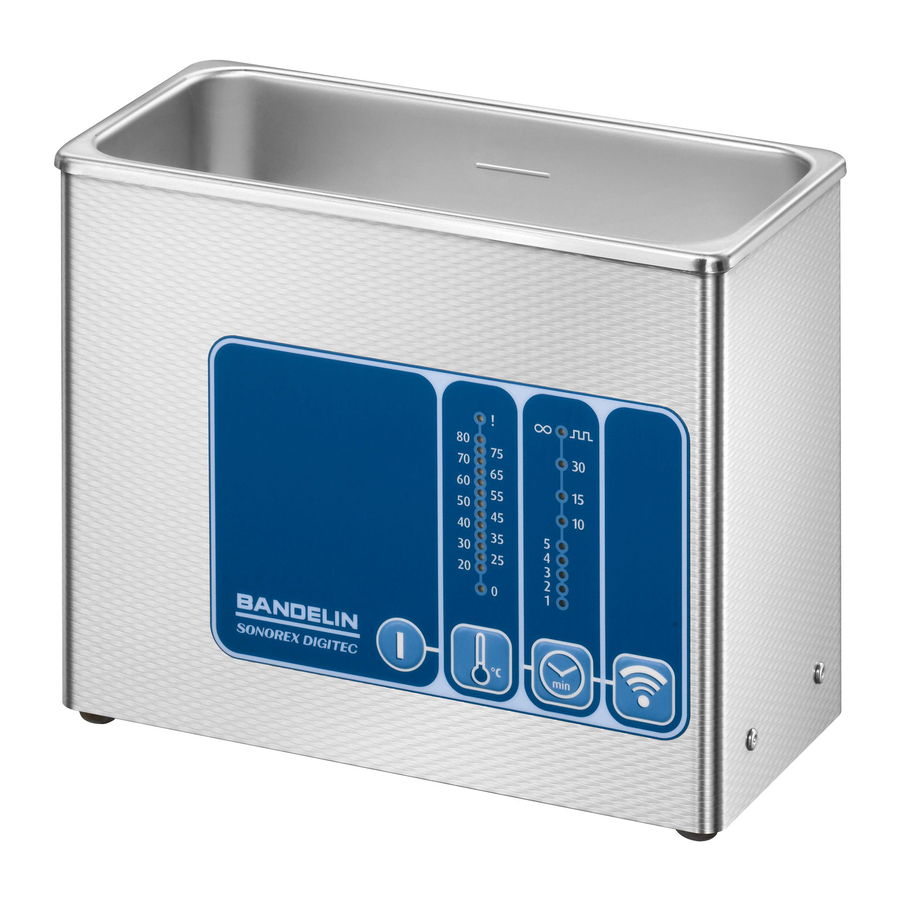

BANDELIN SONOREX DIGITEC DT 31 Operating Manual
High-performance ultrasonic baths
Hide thumbs
Also See for SONOREX DIGITEC DT 31:
- Operating instructions manual (44 pages) ,
- Operating manual (52 pages) ,
- User instructions (36 pages)
Table of Contents
Advertisement
Dokument: 1686-000
Sprache: GB
Version: 2021-03

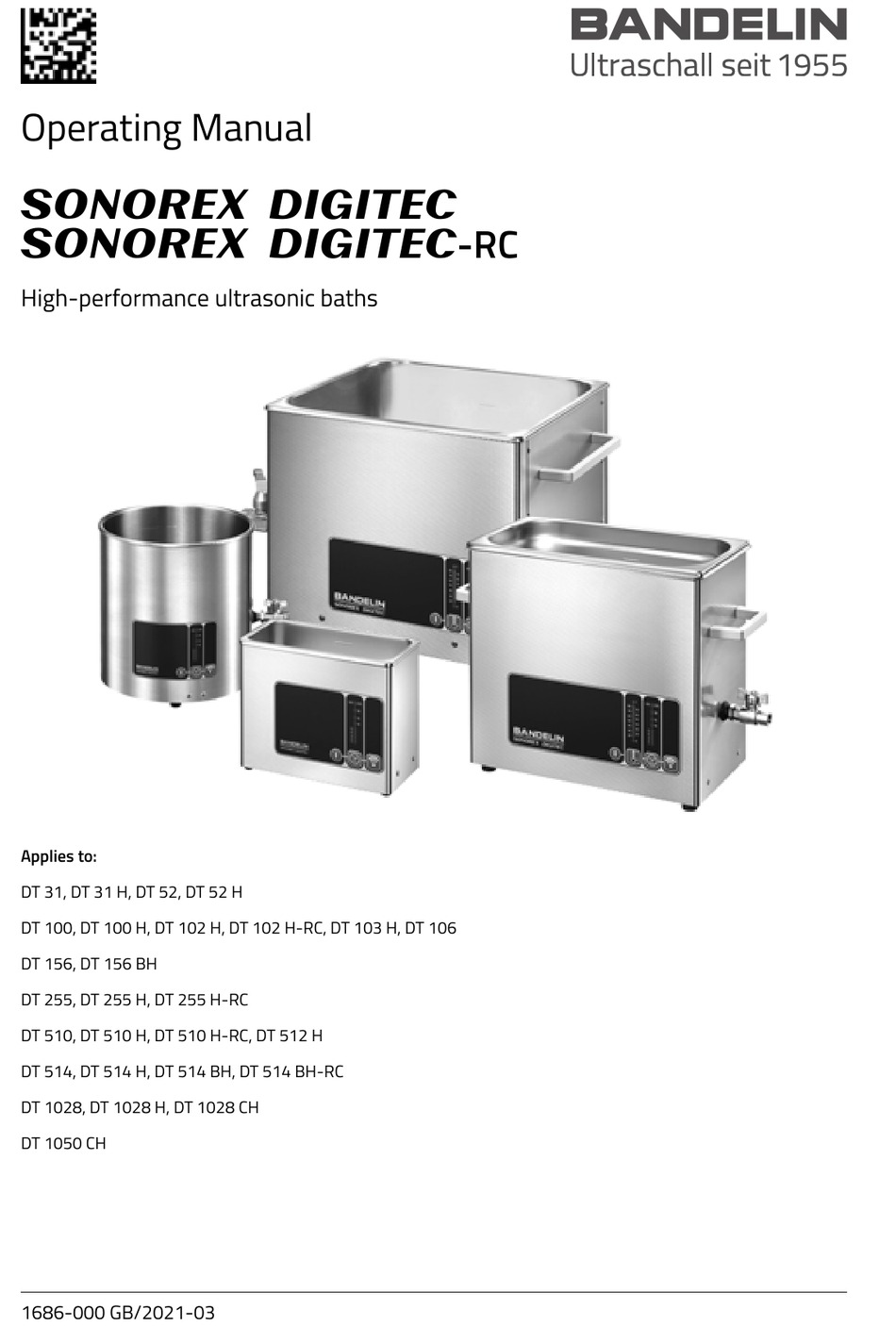

Operating Manual
3 D
3 D-RC
High-performance ultrasonic baths
Applies to:
DT 31, DT 31 H, DT 52, DT 52 H
DT 100, DT 100 H, DT 102 H, DT 102 H-RC, DT 103 H, DT 106
DT 156, DT 156 BH
DT 255, DT 255 H, DT 255 H-RC
DT 510, DT 510 H, DT 510 H-RC, DT 512 H
DT 514, DT 514 H, DT 514 BH, DT 514 BH-RC
DT 1028, DT 1028 H, DT 1028 CH
DT 1050 CH
1686-000 GB/2021-03
Advertisement
Table of Contents
Related Manuals for BANDELIN SONOREX DIGITEC DT 31
Summary of Contents for BANDELIN SONOREX DIGITEC DT 31
- Page 1 Dokument: 1686-000 Sprache: GB Version: 2021-03 Operating Manual 3 D-RC High-performance ultrasonic baths Applies to: DT 31, DT 31 H, DT 52, DT 52 H DT 100, DT 100 H, DT 102 H, DT 102 H-RC, DT 103 H, DT 106 DT 156, DT 156 BH DT 255, DT 255 H, DT 255 H-RC DT 510, DT 510 H, DT 510 H-RC, DT 512 H...
- Page 2 © 2021 1 2 GmbH & Co. KG, Heinrichstr. 3–4, 12207 Berlin, Germany Tel.: +49 30 76880-0, Fax: +49 30 7734699, info@bandelin.com Certified according to ISO 9001 and ISO 13485 2/52 1686-000 GB/2021-03...
-
Page 3: Table Of Contents
Table of contents Table of contents About this operating manual ........Safety . - Page 4 Table of contents Operation ............Direct and indirect sonication .
-
Page 5: About This Operating Manual
• If you pass on this ultrasonic bath, include this operating man- ual. • Contact your specialist dealer or BANDELIN if you have any questions that are not answered in this operating manual. You will find information on our service department in chapter 6.4 Repair. -
Page 6: Safety
Safety 2 Safety Using the ultrasonic bath The ultrasonic bath can used for the following applications: • Ultrasonic cleaning of objects of all shapes, types and sizes • Homogenisation, emulsification • Rapid degassing of liquids • Sonochemical applications, e.g. for radical generation or for improved material transport •... -
Page 7: Use In Medical Field
Safety Use in medical field The intended medical purpose of the ultrasonic bath is the cleaning of instruments. Ultrasonic cleaning is performed in the context of further steps required when reprocessing medical devices. Please observe the hygiene requirements as per the applicable regulations during this procedure. -
Page 8: Avoiding Cross-Contamination And Infections
Safety User group The ultrasonic bath may be used by persons who are qualified and trained for their work, e.g. in the reprocessing of instruments. Pregnancy is not a contraindication for operating the ultrasonic bath. Avoiding cross-contamination and infections If you use the ultrasonic bath in the medical field, clean and disin- fect the surfaces of the ultrasonic bath on a regular basis with at least a bactericidal, yeasticidal and, to a limited extent, virucidal surface disinfection agent to avoid cross-contamination. -
Page 9: Risk Of Electric Shock
Safety Risk of electric shock The ultrasonic bath is an electrical appliance. If safety rules are not observed, a life-threatening electric shock can result. • Protect the ultrasonic bath against moisture and liquids. Keep the surface and the controls clean and dry. •... -
Page 10: Risk Due To High Working Temperatures
Safety Risk due to high working temperatures The ultrasonic bath, the sonication fluid and the goods to be treated can become hot during operation. Touching them can lead to burns. The working temperature can be set to up to 80°C. Ultrasound heats the sonication fluid even without additional heat- ing. -
Page 11: Danger From Ultrasound
Safety Danger from ultrasound High ultrasonic levels like those reached in the ultrasonic bath destroy cell structures. If part of the body is immersed in the soni- cation fluid during operation, this can cause damage to skin and also damage to internal tissue. The periosteum of finger bones can be damaged. -
Page 12: Erosion Of The Ultrasonic Oscillating Tank
Safety During cleaning, water-polluting substances, e.g. oils or heavy- metal compounds, can contaminate the sonication fluid depending on the type of soiling. If the limit value for these substances is exceeded, the sonication fluid must be reprocessed or disposed of as special waste. -
Page 13: Avoiding Damage To The Ultrasonic Bath
Safety 2.12 Avoiding damage to the ultrasonic bath • Use aggressive agents exclusively in inset beakers or insert tubs. When working with aggressive agents, do not allow them to splash into the sonication fluid or onto the stainless steel sur- face. -
Page 14: Safety Stickers On The Ultrasonic Bath
Safety 2.14 Safety stickers on the ultrasonic bath • Observe all safety stickers on the ultrasonic bath. • Keep the safety stickers in legible condition. Do not remove them. Replace them once they are no longer legible. Contact our customer service about this. See chapter 6.4 Repair. 14/52 1686-000 GB/2021-03... -
Page 15: Design And Function
Design and function 3 Design and function Design Fig. 1 Overview of ultrasonic bath 1 Handles (depending on model) 2 Ultrasonic oscillating tank 3 Control panel 4 Filling level mark 5 Drain with ball valve (depending on model) 6 Housing 7 Device feet 15/52 1686-000 GB/2021-03... -
Page 16: Control Panel
Design and function Control panel Fig. 2 Controls for ultrasonic baths with heating Fig. 3 Controls for ultrasonic baths without heating 1 On/off button for switching the ultrasonic bath on and off 2 Button for setting the heating temperature with temperature scale 3 Button for setting the sonication time with time scale 4 Start/stop button for ultrasound Function... -
Page 17: Remote Control
Design and function SONOREX ultrasonic baths use SweepTec®, a technology in which the ultrasonic frequency varies frequently around the working fre- quency. The optimum working frequency depends on the load, fill- ing level, temperature and type of sonication fluid. The working frequency can differ greatly from the nominal frequency. -
Page 18: Preparation For Operation
Preparation for operation 4 Preparation for operation Requirements for setup location The setup location for the ultrasonic bath must meet the following conditions: • The setup surface must be horizontal, solid and dry. • The load-bearing capacity must be sufficient for the ultrasonic bath with the sonication fluid. -
Page 19: Performing A Function Test
Preparation for operation Performing a function test Requirement • The ultrasonic bath has adapted to the climatic conditions at the setup location for at least 2 hours. Procedure 1. Insert the mains plug for the ultrasonic bath into an earthed mains socket. -
Page 20: Operation
Operation 5 Operation Direct and indirect sonication Objects can be sonicated directly or indirectly in the ultrasonic bath. Direct sonication is the standard process. The objects to be soni- cated are placed in the ultrasonic oscillating tank using suitable accessories, e.g. a basket. There, they are in direct contact with the sonication fluid in the tank. -
Page 21: Sonication Fluid
The ultrasound agent used must foster cavitation and be biode- gradable, easy to dispose of, material-compatible and long-lasting. BANDELIN recommends ultrasound agents from the TICKOPUR, TICKOMED and STAMMOPUR product ranges from DR. H. STAMM GmbH. -
Page 22: Sonication Time
Operation Sonication time NOTICE Risk of damage to the goods to be treated Excessively long sonication can damage the surface of the goods to be treated. – Select a short sonication time where possible. The ideal sonication time depends on several factors: •... - Page 23 Operation NOTICE If you use an agent in powder form, do not pour it directly into the ultrasonic oscillating tank. – Mix agents in powder form in another container before you pour them into the ultrasonic oscillating tank. – Only pour the agent into the ultrasonic oscillating tank once it has dissolved completely.
-
Page 24: Switching Sonication On And Off
Operation Switching sonication on and off Requirements • The ultrasonic oscillating tank has been filled. • The mains plug has been connected to an earthed mains socket. Procedure 1. If available, place the lid on the ultrasonic bath. 2. Press the on/off button to switch on the ultrasonic bath. 3. -
Page 25: Switching The Heating On And Off
Operation Switching the heating on and off Concerns the following ultrasonic baths: • DT 31 H, DT 52 H, • DT 100 H, DT 102 H, DT 102 H-RC, DT 103 H, • DT 156 BH, • DT 255 H, DT 255 H-RC, •... -
Page 26: Avoiding Retardation Of Boiling
Operation Procedure 1. Press the button for setting the temperature repeatedly until the required temperature between 20 and 80°C is displayed. » The target temperature is indicated by a continuously lit yel- low LED. 2. To switch off the heating, hold down the button for setting the heating temperature for at least 2 seconds. -
Page 27: Degassing The Sonication Fluid - Degas
Operation Degassing the sonication fluid – DEGAS Sonication fluid that has been freshly filled or left in the ultrasonic oscillating tank for a long period must be degassed before use. Degassing the sonication fluid increases the effect of the ultra- sound. -
Page 28: Removing Goods To Be Treated
Operation • Remove air bubbles from cavities. Rotate the objects accord- ingly. Remove air bubbles under inset beakers. The ultrasound only works where the fluid is in contact with the goods to be treated or the inset beaker. • Position the side with greater soiling so it is facing downwards. Insert objects with joints (e.g. -
Page 29: Emptying The Ultrasonic Oscillating Tank
Operation 5.11 Emptying the ultrasonic oscillating tank WARNING Risk of electric shock – Disconnect the mains plug before lifting the ultrasonic bath. – Do not place the ultrasonic bath in a sink to empty it. – Make sure that fluid cannot get into the housing. CAUTION Hot sonication fluid and ultrasonic oscillating tank There is a risk of burns when you lift the ultrasonic bath. -
Page 30: Enabling And Blocking Continuous Operation
Operation 5.12 Enabling and blocking continuous operation The function can be blocked to prevent accidental activation of con- tinuous operation. Requirement • The mains plug is disconnected. Procedure Press and hold down the button for setting the sonication time. At the same time, insert the mains plug into an earthed mains socket. -
Page 31: Troubleshooting
Operation 5.13 Troubleshooting Fault Possible causes Remedy Ultrasonic effect too • Sonication fluid contains • Degas the sonication fluid. low, loud noises gases. See chapter 5.8 Degassing the sonication fluid – • There are too many goods DEGAS. to be treated in the ultra- •... -
Page 32: Maintenance
Maintenance 6 Maintenance Cleaning and care of the ultrasonic bath Cleaning the housing • Damp wipe the housing. Wipe it dry with a soft cloth. • Do not use any abrasive cleaning products, only care products without scouring additives. • If necessary, disinfect the housing with a suitable surface disin- fectant. -
Page 33: Checks
Maintenance Checks NOTICE Damage to the ultrasonic bath – Perform checks only on the filled ultrasonic bath. If one of the checks does not lead to the desired result, contact our service department. See chapter 6.4 Repair. Checking indicator lamps Requirement •... -
Page 34: Performing The Foil Test
Maintenance Checking ultrasonic effect Check the effect of the ultrasound upon commissioning and at reg- ular intervals. We recommend a check every 3 months. See chapter 6.3 Performing the foil test. Performing the foil test A foil test should be performed before the first use and at regular intervals, e.g. - Page 35 You can download a documentation template for documenting the test results via this link: https:/ /bandelin.com/folientest/ You will also find a video showing the application. Furthermore, the foil sheets can be archived in a suitable way (scan, photo, etc.). Then you will be able to compare the foil sheets whenever necessary.
- Page 36 7. The foil should be perforated, see illustration. Otherwise, we recommend having the device checked by the BANDELIN electronic GmbH & Co. KG ser- vice department: see chapter 6.4 Repair.
- Page 37 Maintenance You can order suitable foil test frames from BANDELIN electronic GmbH & Co. KG. The foil test frames are configured for a wide range of tank dimensions. Aluminium foil is additionally required to perform the test as it is not included in the delivery.
-
Page 38: Repair
Fill in the form and attach it to the outside of the packaging so it is clearly visible. The package will not be accepted without the completed form. Send the ultrasonic bath to the following address: BANDELIN electronic GmbH & Co. KG Heinrichstr. 3–4 12207 Berlin Germany... -
Page 39: Disposal
Disposal 7 Disposal WARNING Risk to health due to contaminated ultrasonic bath – Decontaminate the ultrasonic bath before disposal if it has come into contact with hazardous substances. – Also decontaminate accessories before disposal. Dispose of the ultrasonic bath properly as electronic scrap if it can no longer be used. -
Page 40: Technical Data
Technical data 8 Technical data Electrical data Operating voltage 230 V~ (± 10 %) 50/60 Hz Operating voltage (optional) 115 V~ (± 10 %) 50/60 Hz Protection class Degree of protection DIGITEC: IP 33 DIGITEC-RC: IP 23 Ultrasonic frequency 35 kHz Measuring accuracy of temperature sen- ±... - Page 41 Technical data Type Ultrasonic peak Heating Power Power output/ultra- output consumption consumption sonic nominal (230 V) (115 V) output DT 255 640/160 – DT 255 H 640/160 DT 255 H-RC 640/160 DT 510 640/160 – – DT 510 H 640/160 –...
- Page 42 Technical data Dimensions and weights Type Internal dimen- Operating Connection Weight sions of oscil- volume for ball valve lating tank (drain) (L × W × H) [mm] [kg] DT 31 190 × 85 × 60 – DT 31 H 190 × 85 × 60 –...
- Page 43 Technical data Type Internal dimen- Operating Connection Weight sions of oscil- volume for ball valve lating tank (drain) (L × W × H) [mm] [kg] DT 514 H 325 × 300 × 150 G ½ DT 514 BH 325 × 300 × 200 12.5 G ½...
-
Page 44: Dosing Table
Dosing table 9 Dosing table Type Operat- Dosage Water + agent volume 10 % DT 31, 590 ml + 585 ml + 580 ml + 570 ml + 540 ml + DT 31 H 10 ml 15 ml 40 ml 30 ml 60 ml DT 52,... - Page 45 Dosing table Type Operat- Dosage Water + agent volume 10 % DT 1028, 19.0 18.8 l + 18.6 l + 18.4 l + 18.0 l + 17.1 l + DT 1028 H 190 ml 380 ml 570 ml 950 ml 1.9 l DT 1028 CH 30.0...
-
Page 46: Accessories
Accessories 10 Accessories Insert basket K …, made of stainless steel, screen mesh. Protects goods to be treated and avoids damage to the tank bottom. Optimum transfer of the ultrasound. Utensil holder GH …, made of stainless steel, mesh size 12 x 12 mm. For large individual parts. - Page 47 Accessories Insert Utensil Lid D ... Inset basket Basket Lid D ... T Insert tub Type basket holder holder DT 31 /H K 08 – D 08 – – – – DT 52 /H K 1 C GH 1 D 52 –...
- Page 48 Accessories Inset baskets KD …, PD …, screen mesh. Suitable for inset beakers, for cleaning small parts. KD 0: stainless steel, inner diameter 75 mm PD 04: plastic, inner diameter 60 mm. Inset beakers SD … (glass), EB … (stainless steel), KB …, PD … (plastic). For indirect cleaning of small parts, suitable for positioning lid and beaker holder diameter 87 mm.
- Page 49 Accessories Inset basket Inset beaker Positioning Impression Insert basket Injection lid/ tray holder nozzle holder beaker Type holder DT 31 /H PD 04 KB 04, SD 05 DE 08 – – – DT 52 /H KD 0, PD 04 SD 06, SD 09, PD DE 52 –...
- Page 50 Accessories Mounting brackets EK …, made of stainless steel, for laboratory flasks. Prevents flasks floating to the surface. For screwing into insert baskets and utensil holders. EK 10 – 10 ml, max. diameter 31 mm EK 25 – 25 ml, max. diameter 42 mm EK 50 –...
- Page 51 Mounting brackets for Handle Test tube Tableting Sieve Studded Fixation laboratory flasks adapter holder punch holder holder silicone clamps Type DT 31 /H – – – – – – – DT 52 /H EK 10, EK 25, EK 50, GV 3 RG 2 –...
- Page 52 1 2 GmbH & Co. KG Heinrichstr. 3–4 12207 Berlin Germany Tel.: +49 30 76880-0 Fax: +49 30 7734699 info@bandelin.com www.bandelin.com Technical editing: ZINDEL AG – Technical documentation and multimedia, www.zindel.de 1686-000 GB/2021-03...
