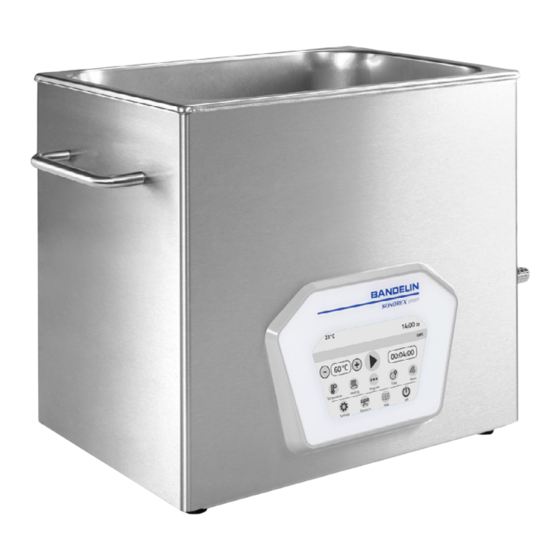

- Page 1 Operating instructions SONOREX smart High-performance ultrasonic bath Valid for: ST 102 H, ST 103 H ST 156 BH ST 170 H ST 255 H ST 510 H ST 514 H, ST 514 BH ST 1028 H, ST 1028 CH ST 1050 CH 1826-001 en/2024-10...
- Page 2 © 2024 1 2 GmbH & Co. KG, Heinrichstrasse 3 – 4, Germany, 12207 Berlin, Phone: +49-30-768 80 - 0, Fax: +49-30-773 46 99, info@bandelin.com Certified to ISO 9001 and ISO 13485 2 / 50 1826-001 en/2024-10...
- Page 3 Contents About these operating instructions ....................5 Safety ..............................6 Using the device ...........................6 Use in the medical field ........................6 Avoidance of cross-contamination and infections ..............7 Keep away from children ........................7 Risk of electric shock ..........................8 Damage to health due to ultrasonic noise ...................8 Danger due to high temperatures ....................9 Danger due to ultrasound ........................9 Danger due to the agents used ....................
- Page 4 4.6.5 Settings menu ............................ 20 4.6.6 Functions menu ..........................21 Operation ..............................22 Direct and indirect sonication ......................22 Sonication liquid ..........................22 Sonication time ..........................23 5.3.1 Pour in sonication fluid ........................24 Switching sonication on and off ....................26 Switching the heating on and off ....................
- Page 5 • Should these operating instructions leave any questions unanswered, please contact your specialist dealer or BANDELIN. Notes on service can be found in Section 6.5 Repairs. In the event that the translation cannot be understood, the German original version of BANDELIN must be followed.
- Page 6 Safety Safety Using the device You can use the device for the following applications: • Ultrasonic cleaning of objects of various shapes, types and sizes • Homogenisation, emulsification • Rapidly degassing liquids • Sonochemical applications, e.g., for generating radicals or for improved substance transport •...
- Page 7 The device may be used by persons who are qualified for their work, e.g., in reprocessing instruments, and have received instruction in it. Being pregnant is not a contraindication to controlling the device. Serious incidents must be reported to BANDELIN electronic GmbH & Co. KG and the competent authority. Avoidance of cross-contamination and infections...
- Page 8 Safety Risk of electric shock The ultrasonic bath is an electrical device. Failure to follow safety rules may result in a life- threatening electric shock. • Do not allow the ultrasonic bath to become damp or wet. Keep the surface and touchscreen clean and dry.
- Page 9 Safety Danger due to high temperatures The device, the sonication liquid and the objects to be sonicated may become hot during operation. Touching them may cause burns. The temperature can be set at up to 80 °C. Ultrasound heats the sonication fluid even without additional heating. Very high temperatures can occur during prolonged ultrasound operation.
- Page 10 Safety Danger due to the agents used The agents used in the device can be toxic or corrosive. They can irritate eyes, skin and mucous membranes. The vapours and aerosols can also be dangerous. • Wear gloves and goggles when handling hazardous agents. •...
- Page 11 Safety 2.11 Erosion of the oscillating tank The surface of the oscillating tank is subject to erosion. How quickly this erosion takes place depends on the use of the ultrasonic bath. The erosion leads to leakage points in the oscillating tank. Bath fluid can thus enter the interior of the ultrasonic bath. Moisture on electrical components can cause an electric shock or fire.
- Page 12 Safety 2.13 Interference with wireless communication The device may interfere with other wireless communication devices in close proximity, such • Mobile phones • Wi-Fi devices • Bluetooth devices If a wireless device malfunctions, increase its distance from the device. The device complies with the requirements for Class B devices according to EN 55011. 2.14 Safety stickers on the device •...
- Page 13 Construction and function Construction and function Construction 1 Handles 2 Oscillating tank 3 Control panel 4 Filling level mark 5 Outlet with ball valve 6 Housing 7 Device feet Control panel 23 °C 14:00 100% 60 °C 00:04:00 Temperature Heating Programme Time Mode...
- Page 14 Construction and function Symbols and buttons Button, Minus Button, Home or decrease value Button, Plus Button, Confirm or increase value or Save Button, Start Button, Cancel Button, Stop Button, Back Temperature menu Button, Next Button, Heating Button, DEGAS (degassing) Programmes menu Button, Power Time menu Button, Interval...
- Page 15 Construction and function Current measured temperature 23 °C Current set time 14:00 Current set power 100% 60 °C Set target temperature Set sonication time 00:04:00 Slider, Temperature 40 °C Slider, Sonication Duration – Time Preselection or Process Duration Function The device uses cavitation triggered by low-frequency ultrasound. Piezoelectric transducers are located on the underside of the oscillating tank.
- Page 16 Preparation for operation Preparation for operation Installation site requirements The installation site of the device must meet the following conditions: • The installation surface must be horizontal, firm and dry. • The load-bearing capacity must be sufficient for the device together with the sonication liquid.
- Page 17 Preparation for operation 4.3.1 Default settings (putting into service for the first time) After switching the device on for the first time, you will be automatically guided through the menus to the default settings. You will proceed through the following menus; click on the "Confirm" button to confirm: •...
- Page 18 Preparation for operation Rinsing the oscillating tank Thoroughly rinse the device's oscillating tank with water before using for the first time. To protect the surfaces during transport and storage, the device is provided with a grease- containing preservative. This preservative must be removed with a suitable cleaner before putting the device into service.
- Page 19 Preparation for operation • You can activate the pulse mode with the "Pulse" button and deactivate it by clicking again. • You can use the "Retardation of boiling" button to activate retardation of boiling and deactivate it by clicking again. Information Set the power to 100% for foil tests, degassing, and cleaning tasks.
- Page 20 Preparation for operation 4.6.5 Settings menu Here, you can define the basic settings for your device. • After clicking on the "DEGAS" button, you can set the duration. You can set the desired time with the slider or click on the minute number directly. An input screen will appear in which you can enter the minutes.
- Page 21 • By clicking on the "Information" button, you can see the software version and operating times. • By clicking on the "Administrator" button, you can reset the settings after entering the password "Bandelin". Click the "Factory Reset" button. 4.6.6 Functions menu Here, you can run recurring programmes.
- Page 22 The ultrasonic agent used must be cavitation conducive, biodegradable, easy to dispose of, gentle on materials and long-lasting. BANDELIN recommends ultrasonic agents from the TICKOPUR, TICKOMED and STAMMOPUR product series from DR. H. STAMM GmbH.
- Page 23 Operation 9 l of ready-to-use solution, 2.5%: Agent: 9 l × 2,5 % = 0,23 l 100 % Quantity of water: 9 l - 0,23 l = 8,77 l Sonication time NOTICE Danger of damage to the objects to be sonicated Excessive sonication can damage the surface of objects being sonicated.
- Page 24 Operation 5.3.1 Pour in sonication fluid NOTICE Danger of damage - Do not fill the oscillating tank with hot water. - Maximum filling temperature: 50 °C. NOTICE Damage to the ultrasonic bath due to condensate At high humidity, condensation forms on the outside of the oscillating tank when it is filled with cold water.
- Page 25 Operation 1 Control panel 2 Filling level mark 3 Outlet with ball valve Requirements • The ball valve must be closed. • The device must be switched off. Procedure Fill 1/3 of the oscillating tank with water. Dose the agent into the oscillating tank. See Chapter 9 Dosing table or press the "Dosing"...
- Page 26 Operation Switching sonication on and off Requirements • The oscillating tank is filled. • The mains plug is plugged into an earthed wall socket. Procedure If present, place the cover on the device. Tap the "Start" button. » The ultrasound is switched on. The ultrasound noise can be heard. To switch the sonication off, tap the "Stop"...
- Page 27 Operation • The cover used must not completely seal the oscillating tank – steam must be able to escape. Information - The heating operates independently of the ultrasound. - It may only be possible to reach a bath temperature greater than or equal to 80 °C with the lid on.
- Page 28 Operation Degassing the sonication liquid – DEGAS Sonication liquid that has been freshly poured in or that has remained in the oscillating tank for a long time must be degassed before use. Degassing the sonication liquid increases the effect of the ultrasound. The DEGAS function allows rapid degassing of the sonication liquid. •...
- Page 29 Operation • Place the more contaminated side downwards. Place items with joints (e.g., scissors, tongs) in an open state so that the sonication fluid is able to optimally cover the entire surface. Removing objects to be sonicated WARNING Risk of scalding The sonication liquid, the objects to be sonicated, the surface of the device, and the acces- sories can be very hot.
- Page 30 Operation Fully replace used sonication fluid. Do not replenish it by topping it up. Procedure Switch off the ultrasound. If present, turn off heating. If you need to move the device to empty it, disconnect the mains plug. Open the ball valve. Thoroughly rinse out the oscillating tank.
- Page 31 Operation 5.11 Troubleshooting Error Possible causes Troubleshooting Too little ultra- • Sonication liquid contains • Degas the sonication fluid. See section 5.6 Degassing the sonication liquid – DEGAS. sound effect, loud gases. noises • There are too many objects • Reduce the number of objects to be sonicated. to be sonicated in the oscil- lating tank.
- Page 32 Maintenance Maintenance Servicing The device is maintenance-free. Functional tests can be performed for regular checks (see Chapter 6.3 Tests.) Cleaning and looking after the ultrasonic bath Cleaning the housing • Wipe the housing with a damp cloth. Wipe it dry with a soft cloth. •...
- Page 33 Maintenance Tests NOTICE Damage to the ultrasonic bath - Only carry out tests on the ultrasound bath when it is filled. If one of the tests does not lead to the desired result, contact the servicing team. See section 6.5 Repairs. Checking the power of the ultrasound The power can be checked with a wattmeter between the mains plug of the ultrasonic bath and the socket.
- Page 34 Maintenance Performing the foil test Select the "Foil Test" button and then the "Start" button. A foil test should be carried out before the first use and then at regular intervals, e.g., every 3 months. This serves to ensure a consistent effect on the part of the ultrasound. The frequency of implementation is your responsibility.
- Page 35 The foil must be perforated. If not, we recommend having the device checked by the servicing department of BANDELIN electronic GmbH & Co. KG. Archive the foil with the test date and serial number of the ultrasonic bath as well as the previously selected conditions and duration.
- Page 36 Maintenance Suitable foil test frames can be ordered from BANDELIN electronic GmbH & Co. KG. The foil test frames are designed for a wide range of tank dimensions. Aluminium foil is also required for the test procedure; this is not included in the scope of delivery.
- Page 37 Fill out the form and attach it so it is clearly visible on the outside of the packing. Acceptance will be refused without a completed form. Send the unit to the following address: BANDELIN electronic GmbH & Co. KG Heinrichstr. 3–4 12207 Berlin...
- Page 38 Disposal Disposal WARNING Health hazard due to contaminated device - Decontaminate the device before disposal if it has come into contact with hazardous sub- stances. - Also decontaminate accessories before disposal. Dispose of the device properly as electrical waste if it can no longer be used. Do not dispose of the device in the household waste.
- Page 39 Information about the device Information about the device Technical specifications Dimensions and weights Internal dimensions of Connection for Operating Type the oscillating tank ball valve Weight volume (L × W × H) (outlet) [mm] [kg] ST 102 H 240 × 140 × 100 G ¼...
- Page 40 Information about the device Electrical specifications Protection class Degree of protection IP 32 Ultrasonic frequency 40 kHz Mains supply 230 V~ (± 10 %) 50/60 Hz Ultrasonic peak Current Type power/ultrasonic Heating power Fuses consumption nominal power ST 102 H 480/120 2 ×...
- Page 41 Information about the device Mains supply 115 V~ (± 10 %) 50/60 Hz Ultrasonic peak Current Type power/ultrasonic Heating power Fuses consumption nominal power ST 102 H 480/120 2 × F4A ST 103 H 560/140 2 × F6.3A ST 156 BH 860/215 2 ×...
- Page 42 Information about the device Ambient conditions Overvoltage category: Degree of contamination: Permissible ambient temperature: 5… 40 °C Permissible relative humidity up to 31 °C: 80% (non-condensing) Permissible relative humidity up to 40 °C: 50% (non-condensing) Altitude: < 2000 m above sea level For indoor operation only CE conformity The device is a medical device and fulfils the CE marking criteria of the European Union:...
- Page 43 Dosing table Dosing table Operating Dosage Type volume Water + agent 10 % 1.9 l 1.9 l 1.9 l 1.9 l 1.8 l ST 102 H + 20 ml + 40 ml + 60 ml + 100 ml + 200 ml 2.6 l 2.6 l 2.6 l...
- Page 44 Approved accessories Approved accessories Insert basket K..., made from stainless steel, sieve cloth. Gentle on objects to be sonicated and avoids damage to the tank bottom. Optimal ultrasound transmission. Utensil holder GH..., made from stainless steel, mesh size 12 x 12 mm. For larger individual parts.
- Page 45 Approved accessories Type Insert basket Utensil Insert Basket Insert tub holder basket holder ST 102 H K 3 C GH 1 D 100 – – KW 3 ST 103 H K 3 CL – D 100 – – KW 3 ST 156 BH K 6 BL –...
- Page 46 Approved accessories Insert baskets KD…, PD…, Sieve cloth. Suitable for inset beakers, for cleaning small parts. KD 0: stainless steel, Ø inside 75 mm; PD 04: plastic, Ø inside 60 mm. Inset beakers SD ... (glass), EB... (stainless steel), KB…, PD… (plastic). For indirect cleaning of small parts, suitable for positioning lids and beaker holders Ø...
- Page 47 Approved accessories Type Insert Inset beaker Positioning Impression Insert Inj ection- Cassette basket lid/beaker tray holder basket nozzle- holder holder holder SD 06, ST 102 H KD 0, PD 04 SD 09, DE 100 LT 102 PK 2 C ED 9 –...
- Page 48 Approved accessories Spring clamps EK..., made of stainless steel, for laboratory flasks. Prevents floating. For screwing into hanging baskets and utensil holders. EK 10 – 10 ml, max. Ø 31 mm EK 25 – 25 ml, max. Ø 42 mm EK 50 –...
- Page 49 Approved accessories Type Spring clamps for Handle Test tube Sieve Silicone laboratory flasks adjuster holder holder knob mat EK 10, EK 25, EK 50, ST 102 H GV 3 RG 2 – SM 3 EK 100, EK 250 EK 10, EK 25, EK 50, ST 103 H GV 3 RG 2...
- Page 50 1 2 GmbH & Co. KG Heinrichstrasse 3 – 4 12207 Berlin Germany Phone: +49-30-768 80 - 0 Fax: +49-30-773 46 99 info@bandelin.com www.bandelin.com...
