AIR CLEANER DRAIN TUBE CLEANING

Refer to the safety precautions (page 46).

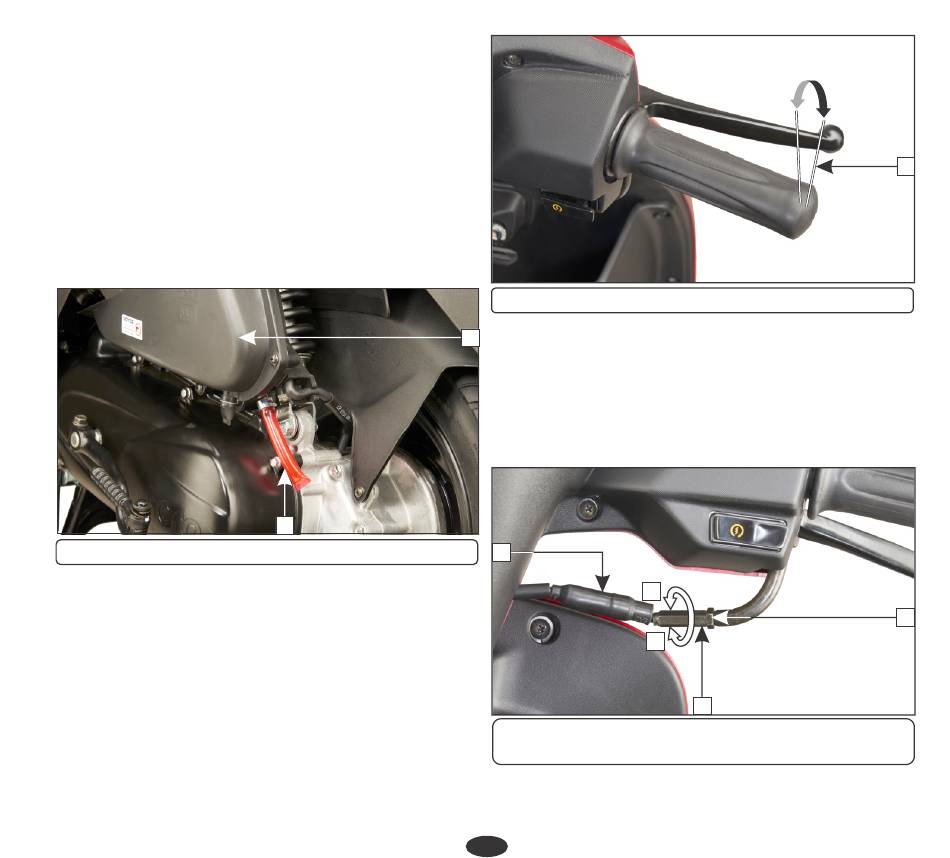

Remove the drain tube (1) from the air
•
cleaner assembly (2) and drain deposits in
to a suitable container.
Reinstall the drain tube.
•
Service more frequently when riding in rain, at
full throttle or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
(1) Drain tube

THROTTLE OPERATION

Cable inspection
Check for smooth rotation of the throttle grip
from the fully open to the fully closed position.
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
throttle body. If the cable is kinked, chafed or
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
1
(2) Air cleaner assembly
(1) Free play : 2-6
Free play adjustment
2
(a) At handlebar side
Slide the boot (2), loosen the lock nut (3) and
turn the adjuster (4).
If the specified free play is not achieved, adjust
the free play on throttle body side.
2
(2) Boot (3) Lock nut
(A) Decrease free play (B) Increase free play
(b) At throttle body side
Remove the center compartment (page 28).
52
mm
A
B
4
(4) Adjuster
1
3
