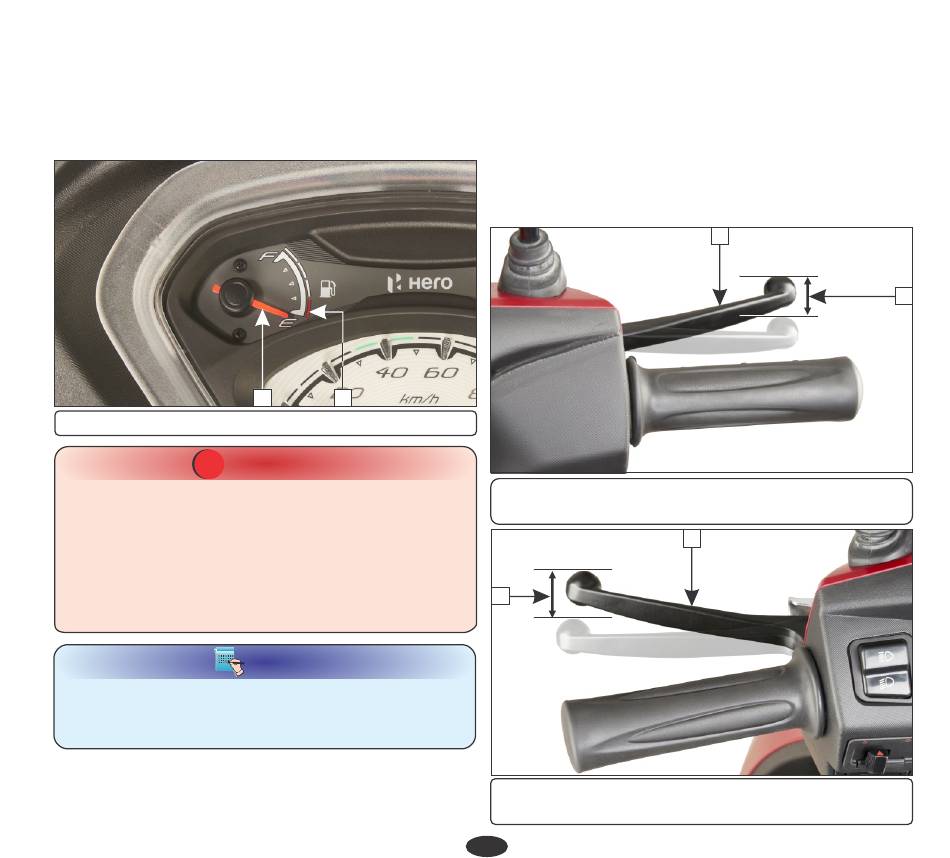

FUEL GAUGE

When fuel gauge needle (1) enters the red
band (2), it indicates the fuel quantity is low
and the fuel tank should be refilled as soon as
possible.
(1) Fuel gauge needle
! !
Please ensure the vehicle is not used with fuel
gauge needle at red band continuously. It will
not only result in the vehicle running out of
fuel, it may also cause serious damage to the
fuel pump. Please ensure fuel is filled up as
soon as the fuel gauge needle reaches red
band.
To check the fuel level indication, the vehicle
should be on levelled surface and in stationary
condition.
1 2
(2) Red band
CAUTION
NOTE

MAJOR COMPONENTS

(Information you need to operate this
vehicle)

BRAKES (INTEGRATED BRAKING)

Brakes are items of personal safety and should
always be maintained with proper adjustments.
When one applies the left brake lever, front &
rear brakes activate jointly.
(1) Front brake lever
(3) Free play : 10-20 mm
3
(2) Integrated brake lever
(3) Free play:10-20 mm
15
