Pillion Footrest; Body Parts Removal - HERO PLEASURE+ PROGRAMMED FI Manual

speedometer panel.
Check the side stand for proper function
•
and the spring (3) for damage or loss of
tension and the side stand assembly for free
movement.
Check whether the side stand indicator (1)
•
glows when the side stand is down.
When the side stand is up, the side stand
•
indicator (1) should not glow.
If the side stand indicator (1) does not
•
operate as described in above steps, please
visit your Authorised
workshop.
2
3

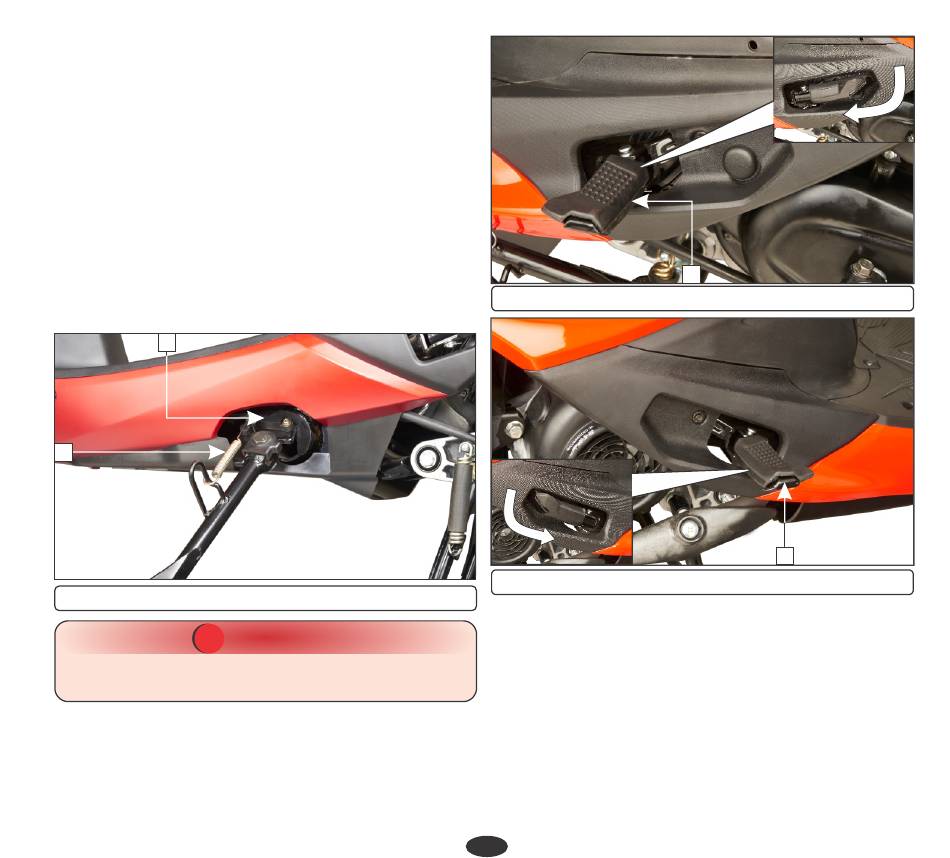

(2) Side stand switch (3) Side stand spring
! !
Ensure that adequate care should be taken
while cleaning the side stand switch.
(l) Pillion footrest
Move the left and right (1 & 2) footrest in the
direction shown by arrows to open. Folding
can be done by moving footrest in the reverse
direction.
Hero MotoCorp
CAUTION
(1) Left footrest
(2) Right footrest

BODY PARTS REMOVAL

(a) Center compartment
Removal
Open the seat (page 24).
•
Remove the fuel filler cap (1).
•
Remove the bolts (2) and the fuel tank
•
cover (3).
28
1
2
