60 Extra info: How the gyro works!

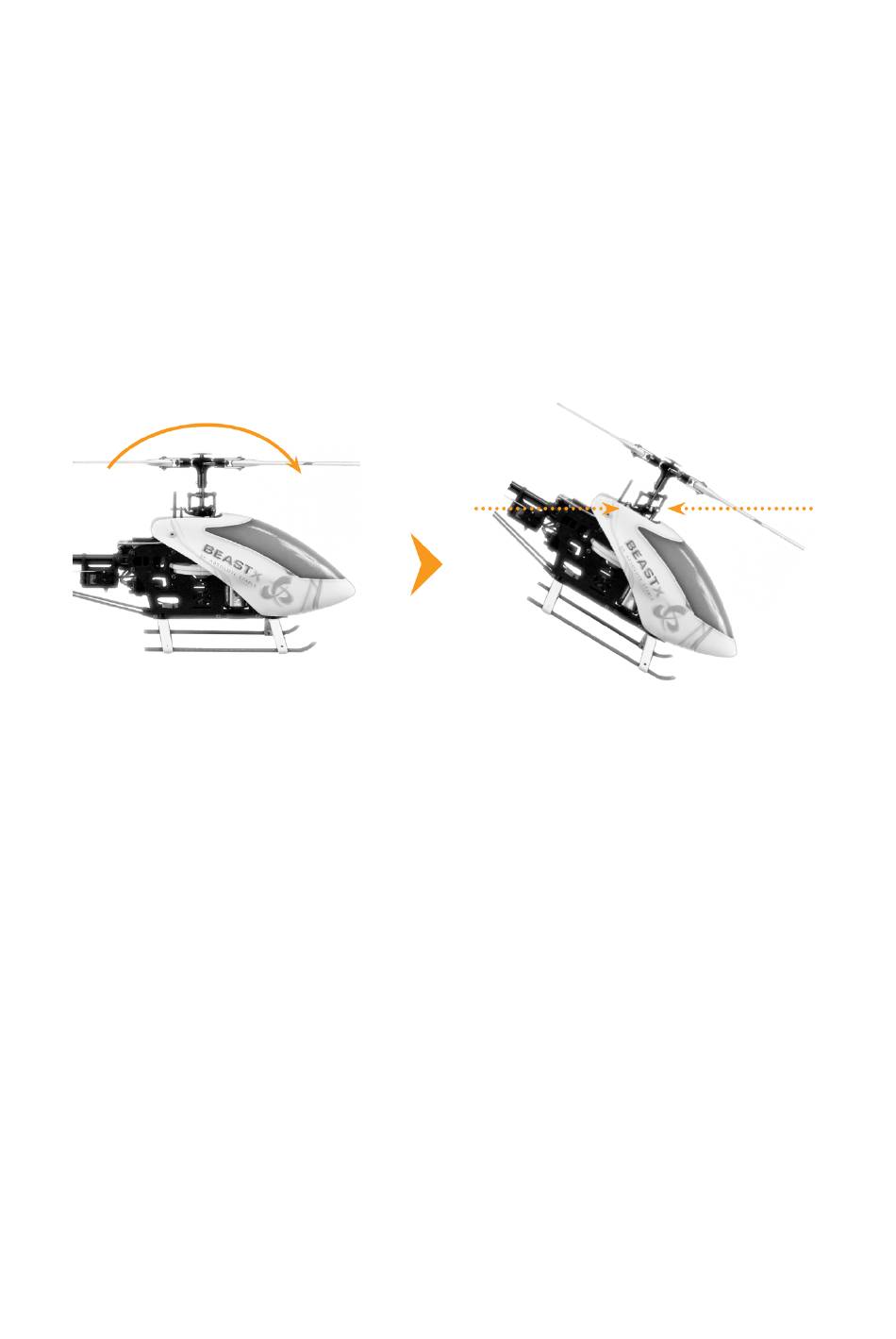

The gyro always tries to steer in the opposite direction of the rotation that is applied to
the helicopter.When tilting the helicopter forwards the swashplate has to move backwards,
when tilting the helicopter to the rear, the swashplate has to compensate forward. Same
thing applies to the roll axis: when you roll the helicopter to the left the swashplate has to
steer right and vice versa. Basically the swashplate has to remain horizontal all the time
while banking the helicopter.
Figure 101
