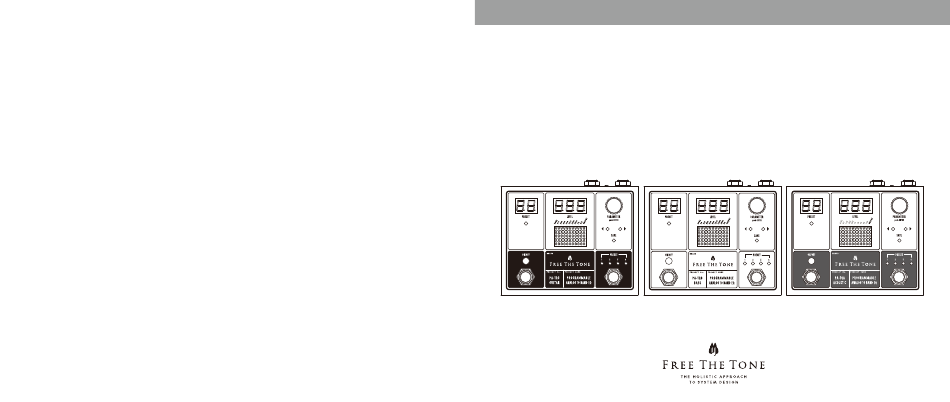

- Page 1 PA-1QG PA-1QB PA-1QA • • PROGRAMMABLE ANALOG 10 BAND EQ GRAPHIC EQUALIZER Owner’s Manual Ver 1.2...
-

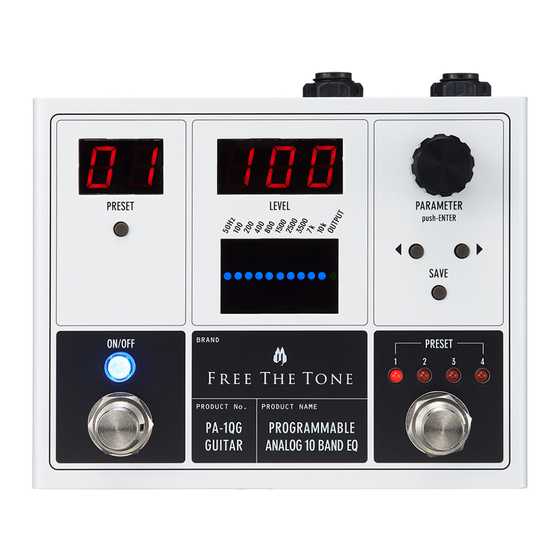

Page 2: Controls And Indicators
Thank you for choosing a Free The Tone product. Controls and indicators In order to take full advantage of the features and performance it provides, please read this owner’s manual thoroughly and keep it in a safe place for future reference. -
Page 3: Adjusting Equalizer
Rear Panel Adjusting Equalizer INPUT LEVEL select switch POWER DC 9V IN terminal You can create your favorite tone by adjusting various parameters. For connecting an AC adapter This switch is used to select with 9V DC center negative PA-1Q series input level Adjusting the equalizer polarity. -
Page 4: Recalling A Preset
Recalling a Preset Changing/writing preset contents The PA-1Q series can use up to 99 presets that can be recalled in various ways. 1. Press the ON/OFF switch to turn on the LED above it. ◀▶ 2. Press the cursor key switch to select the parameter to be adjusted. Switching between presets 1-4 3. - Page 5 The PA-1Q series can switch presets or change all of the parameters via MIDI signals sent from an external Controls MIDI CC Numbers Value Range device. MIDI signals assigned to controllable functions are listed below. PA-1QG PA-1QB PA-1QA Common to PA-1Q series Common to PA-1Q series...
-
Page 6: Pa-1Qg (For Guitar) Factory Presets
Preset 4: Sound with flat EQ but boosted volume The PA-1Q series can save or recall preset contents to/from a personal computer. For connection and setup procedures, please confirm with the product or support page of the Free The Tone website. Updating Firmware The PA-1Q series can update its firmware. -
Page 7: Pa-1Qb (For Bass) Factory Presets
PA-1QB (for Bass) Factory Presets PA-1QA (for Acoustic) Factory Presets Preset 1: Sound for finger picking with reduced high frequencies Preset 2: Sound for plectrum picking with emphasized attacks Preset 1: Crisp sound for ensemble playing without changing the Preset 2: Emphasizes the low mid range for chordal playing nuance of the sound 40Hz 800 1200 2400 4500... -
Page 8: Specifications
Be sure to read these precautions and the user's manual before using this product. • Frequencies PA-1QG: 50 Hz, 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1500 Hz, 2500 Hz, 3500 Hz, 7 kHz, 10 kHz (±12 dB) Caution Warning PA-1QB: 40 Hz, 80 Hz, 125 Hz, 250 Hz, 500 Hz, 800 Hz, 1200 Hz, 2400 Hz, 4500 Hz, 8 kHz (±12 dB)
