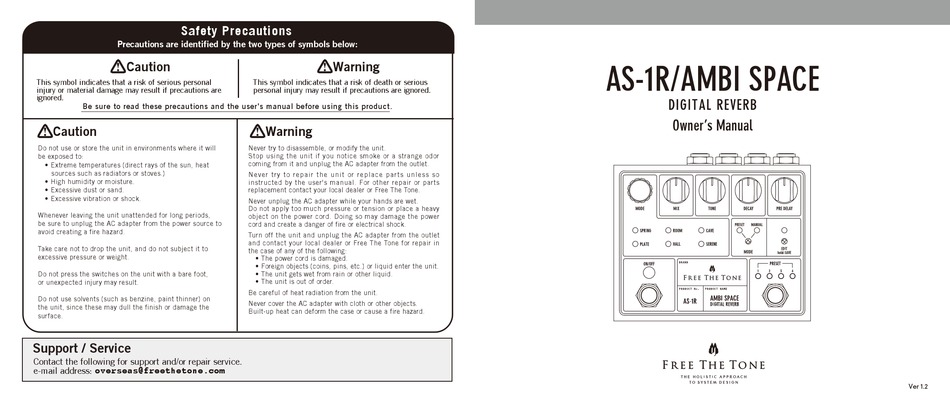

Safety Precautions
Precautions are identified by the two types of symbols below:
Caution
This symbol indicates that a risk of serious personal
injury or material damage may result if precautions are
ignored.
Be sure to read these precautions and the user's manual before using this product.
Caution
Do not use or store the unit in environments where it will
be exposed to:
 • Extreme temperatures (direct rays of the sun, heat
     sources such as radiators or stoves.)
 • High humidity or moisture.
 • Excessive dust or sand.
 • Excessive vibration or shock.
Whenever leaving the unit unattended for long periods,
be sure to unplug the AC adapter from the power source to
avoid creating a fire hazard.
Take care not to drop the unit, and do not subject it to
excessive pressure or weight.
Do not press the switches on the unit with a bare foot,
or unexpected injury may result.
Do not use solvents (such as benzine, paint thinner) on
the unit, since these may dull the finish or damage the
surface.
Support / Service
Contact the following for support and/or repair service.
overseas@freethetone.com
e-mail address:
Warning
This symbol indicates that a risk of death or serious
personal injury may result if precautions are ignored.
Warning
Never try to disassemble, or modify the unit.
Stop using the unit if you notice smoke or a strange odor
coming from it and unplug the AC adapter from the outlet.
Never try to repair the unit or replace parts unless so
instructed by the user's manual. For other repair or parts
replacement contact your local dealer or Free The Tone.
Never unplug the AC adapter while your hands are wet.
Do not apply too much pressure or tension or place a heavy
object on the power cord. Doing so may damage the power
cord and create a danger of fire or electrical shock.
Turn off the unit and unplug the AC adapter from the outlet
and contact your local dealer or Free The Tone for repair in
the case of any of the following:
 • The power cord is damaged.
 • Foreign objects (coins, pins, etc.) or liquid enter the unit.
 • The unit gets wet from rain or other liquid.
 • The unit is out of order.
Be careful of heat radiation from the unit.
Never cover the AC adapter with cloth or other objects.
Built-up heat can deform the case or cause a fire hazard.

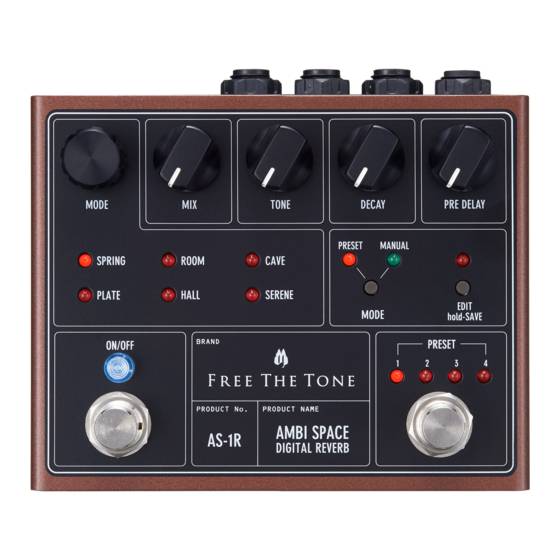

AS-1R/AMBI SPACE
DIGITAL REVERB
Owner's Manual
Ver 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMBI SPACE and is the answer not in the manual?

Questions and answers

Summary of Contents for Free The Tone AMBI SPACE

  • Page 1 Turn off the unit and unplug the AC adapter from the outlet and contact your local dealer or Free The Tone for repair in Take care not to drop the unit, and do not subject it to the case of any of the following:  •...
  • Page 2 Thank you for choosing a Free The Tone product. In order to take full advantage of the features and Controls and indicators performance it provides, please read this owner’s manual thoroughly, and keep it in a safe place for future reference.
  • Page 3 Requires at This switch is used to select the input level least 280mA of of the AMBI SPACE to match the output available current. level of the device to be connected to the Input terminal. When connecting a device with instrument level signals, set the switch to the rear side (closer to the I/O jack).
  • Page 4 Trail Function You can set whether the reverberation sound will remain or not when you turn off the effects. The MANUAL LED above the MODE switch illuminates when the AMBI SPACE is operating in Manual mode. Press and hold down the MODE switch for 1.5 seconds.
  • Page 5 1. Connect an external MIDI controller to the MIDI IN terminal on the AMBI SPACE rear panel. When the LED above the EDIT switch illuminates, the AMBI SPACE is in Edit mode. Edit mode is used to 2. Press the effect ON/OFF switch to illuminate the LED above it.
  • Page 6 Configuring MIDI settings Correspondence between MIDI receiving channels and PRESET LED indications The AMBI SPACE can switch presets and change each parameter by MIDI signals received from an   PRESET-1 LED PRESET-2 LED PRESET-3 LED PRESET-4 LED MIDI Channel to be set external controller.
  • Page 7 Correspondence between parameters and MIDI control change numbers Controls MIDI CC Numbers Value Range The AMBI SPACE can switch presets or change all of the parameters via MIDI signals sent from an external device. MIDI signals assigned to controllable functions are listed below. PRE DELAY 0-127...
  • Page 8 Factory presets Specifications • Number of presets: 128 PRESET-1 SPRING MODE PRESET-2 PLATE MODE • Input impedance: INST min. 1MΩ / LINE min. 300 kΩ • Output load impedance: min. 10 kΩ • Maximum input level: INST +3 dBu / LINE +11 dBu •...
