PA-1QG PA-1QB PA-1QA
• •
PROGRAMMABLE ANALOG 10 BAND EQ
GRAPHIC EQUALIZER
QUICK START GUIDE
Controls and indicators

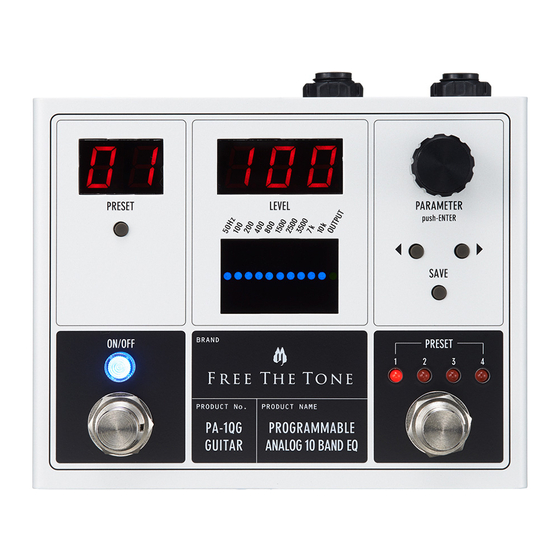

Front panel
PRESET display LEVEL display
Shows the number for the
currently recalled preset.
PRESET tact switch
Pressed when recalling a
preset.
Equalizer display
Shows the currently recalled
preset' equalizer status or
preset's volume.
EFFECT ON/OFF switch
Pressed to turn on/off the equalizer
effects. The LED above the switch
illuminates when the switch is
turned on.
Specifications
Ω
Ω
◀▶
±
±
±
Please download detailed instruction manuals from the
SUPPORT page on our website.
www.freethetone.com/en/support/download/
PARAMETER encoder
Shows the boost amount Turned when adjusting the boost
of the selected frequency amount of the selected frequency
or volume for the preset. or the volume for the preset.
Pressed when confirming the
operation to save parameters in a
preset.
◀▶
Selects the frequency or
volume to be adjusted.
SAVE switch
Pressed when saving
parameters in a preset.
PRESET switch
Pressed when switch presets 1–4.
Each press selectsthe preset as follows
PRESET-1→PRESET-2→PRESET-3→PRESET-4
Rear panel
INPUT LEVEL select switch
Ω
This switch is used to select PA-1Q
series input level according to the
output level of the device
connected to the INPUT terminal.
If you are connecting an
instrument level device, set the
switch to the INPUT terminal side.
Or to connect a line level device,
set it to the OUTPUT terminal side.
INPUT terminal
Used to connect a
guitar/bass, another
instrument, effects
unit, etc. This terminal
has the HTS circuit that
keeps sound texture the
same when the effect is
turned on and off.
Adjusting Equalizer
Adjusting the equalizer
◀▶
cursor key switch
±
721A001
IN OUT DC9V IN
INPUT LEVEL MIDI IN MIDI OUT/THRU
INST LINE
MIDI IN & OUT/THRU terminals
OUTPUT terminal
Used to send/receive MIDI signals
Use this terminal to connect to your
to/from a connected external MIDI
amplifier/mixer, etc.
device. The external MIDI controller
can switch PA-1Q series presets and
receive/send preset data from/to the
PA-1Q series.
Adjusting a preset's volume
◀▶
POWER DC 9V IN terminal
For connecting an AC
adapter with 9V DC center
negative polarity. Requires
at least
200mA of
available
current.
