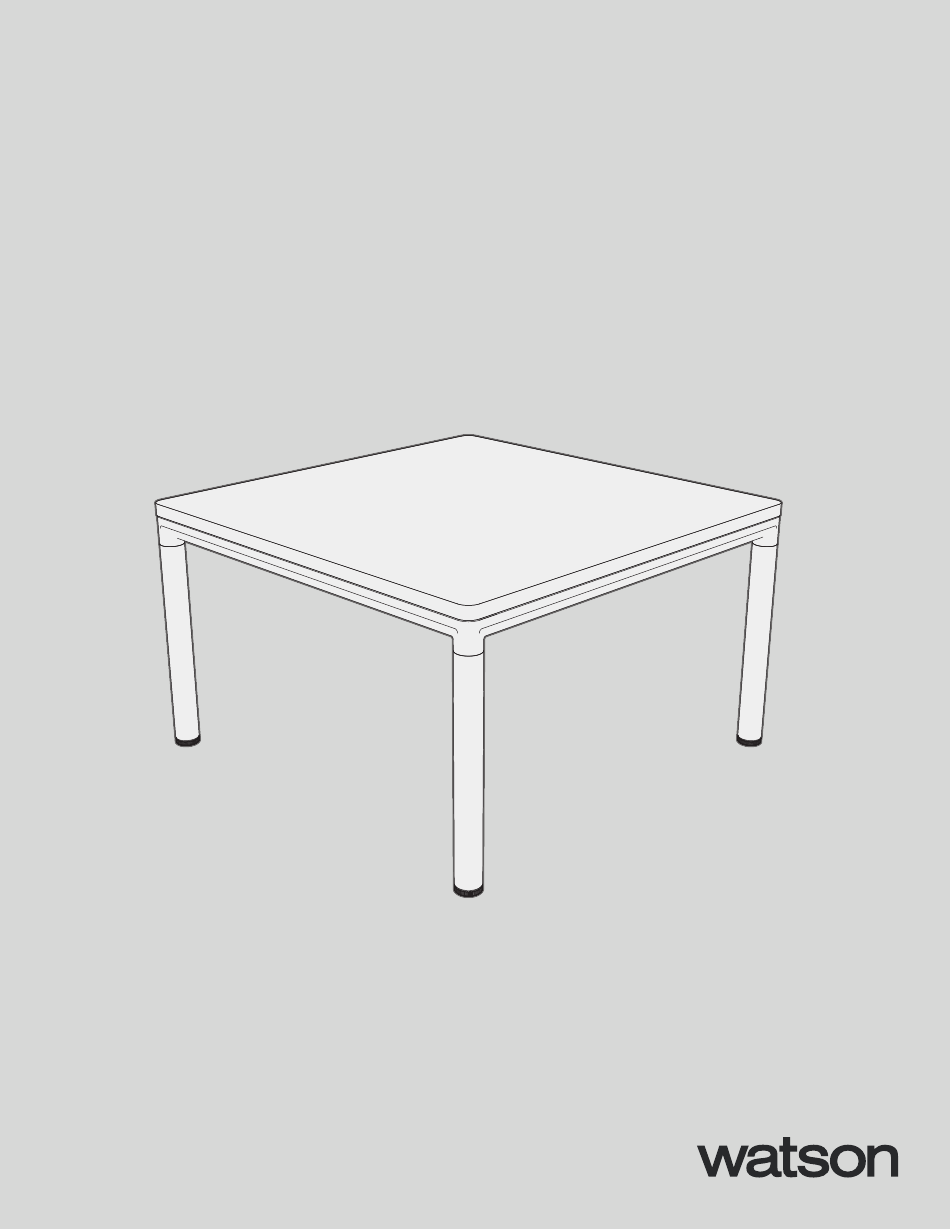

- Page 1 ASSEMBLY C9 Occasional Table 360.394.1300 watsonfurniture.com V.1.00 08/2020...
- Page 2 C9 Occasional Table Basic Components Surface Legs Frame Rails 2 C9 OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS...
- Page 3 Hardware M6-1.0x12mm Low Top Clip (0001156) Prof ile Cap Screw (0001140) Tools Elec t r ic Dr ill 3mm Hex Dr ill/Dr iver Addit ional tools such as a 90 Degree Bit and an 18” Extension are helpf ul for some steps *No tor que or ball bit s should be used...
- Page 4 Frame Rails Slide the remaining frame rails onto one of the leg assemblies and secure them with 8 screws (0001140). Repeat this step for the other leg assembly. M6-1.0x12mm Low Prof ile Cap Screw (0001140) 4 C9 OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS...
- Page 5 Clip the top clips into the frame rail channel and drive a screw (0001140) until tight. Repeat for the remaining clips. When complete, flip the table over. M6-1.0x12mm Low Top Clip (0001156) Prof ile Cap Screw (0001140) 5 C9 OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS...
