SPEAKER LOCATION & INSTALLATION
TOOLS AND EQUIPMENT TO INSTALL THE SPEAKERS OUTLINED IN THIS MANUAL
Locate the specific speaker(s) that were ordered with the system and then follow the installation instructions for the model of speaker outlined in this section of the manual.
• Straight edge
• Drill driver and bits/drills
• Utility knife or drywall saw • Marker or pencil
• Screwdriver, standard and phillips
• Wire cutters
• Screwdriver, small jewelers type, 1/8" wide tip • Wire strippers
• Drill driver and bits/drills • Wire ties

TCQ Speaker Installation

SYSTEM COMPONENTS AND UNPACKING
• (1) Ceiling grid T-bar (US & Canada use)
• (1) 50 ft (15m) plenum rated speaker wire (If ordered)
• (1) 20 ft (6m) coil safety wire
• (4) Self drilling screws (outside U.S. and Canada)
NOTE: Wiring should follow the class 2 wiring methods as outlined in the National Electric Code.
SELECTING SPEAKER MOUNTING LOCATIONS
One TCQ speaker will distribute sound throughout a classroom of up to 1,200 sq ft
(112 sq m). The location of the speaker is important to ensure even sound distribution.
Ceiling height should be 9 - 12 ft (2.75m - 3.75m).
1. Identify the center of the of the classroom for optimum location.
2. Select a ceiling tile that is free from fixtures (lighting, HVAC, etc.) within a 6 ft (1.8m)
radius nearest to the center point.
3. Remove the selected ceiling tile for speaker installation.
6

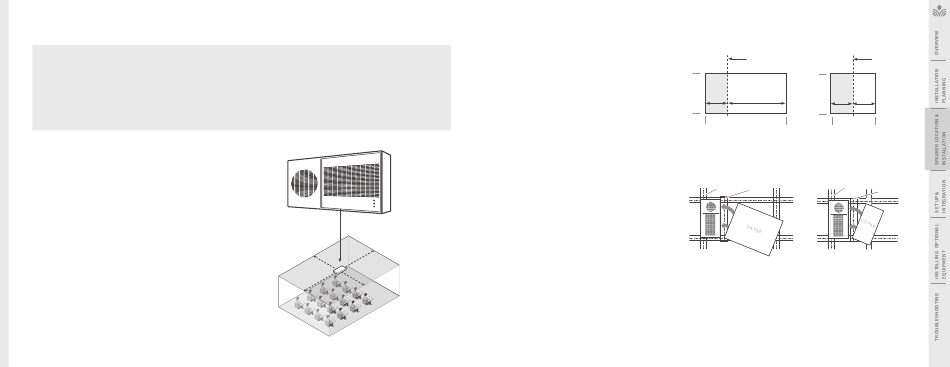

GRID CEILING INSTALLATION
The dimensions of the TCQ are 1' x 2'. It is designed to fit into any
standard 2' X 4', or 2' X 2" suspended ceiling tile grid.
1. The ceiling tile will need to be cut to accommodate the TCQ
2. Set the ceiling tile on a flat work surface with the patterned side
facing down.
3. Using a straight edge, cut a 1' x 2' section from the ceiling tile,
creating a 1' x 2' section and a 3' x 2' section, or two 1' x 2'
sections depending on the size of your tiles.
4. Locate the 2' ceiling grid t-bar attachment. Locate the
attachment slots in the existing ceiling grid and snap the new
T-bar into place to create a 1' x 2' and 2' x 3' sections, or two 1' x
2' sections.
IDENTIFY THE CENTER OF THE ROOM
(U.S. & CANADA ONLY) 2' X 4' CEILING TILE
CUT WITH
STRAIGHT EDGE
WASTE REMAINING
3/4 CEILING TILE
2'
1' 3'
4'
CUT THE 2' X 4' TILE TO CREATE A 1' X 2'
SECTION AND A 3' X 2' SECTION.
EXISTING TILE GRID
NEW T-BAR
TCQ
SNAP THE T-BAR INTO PLACE TO CREATE A
1' X 2' OPENING AND A 3' X 2' OPENING
2' X 2' CEILING TILE
CUT WITH
STRAIGHT EDGE
WASTE
2'
1' 1'
2'
CUT THE 2' X 2' TILE TO CREATE
TWO 1' X 2' SECTIONS
EXISTING TILE GRID
NEW T-BAR
TCQ
SNAP THE T-BAR INTO PLACE TO
CREATE TWO 1' X 2' OPENINGS
7
