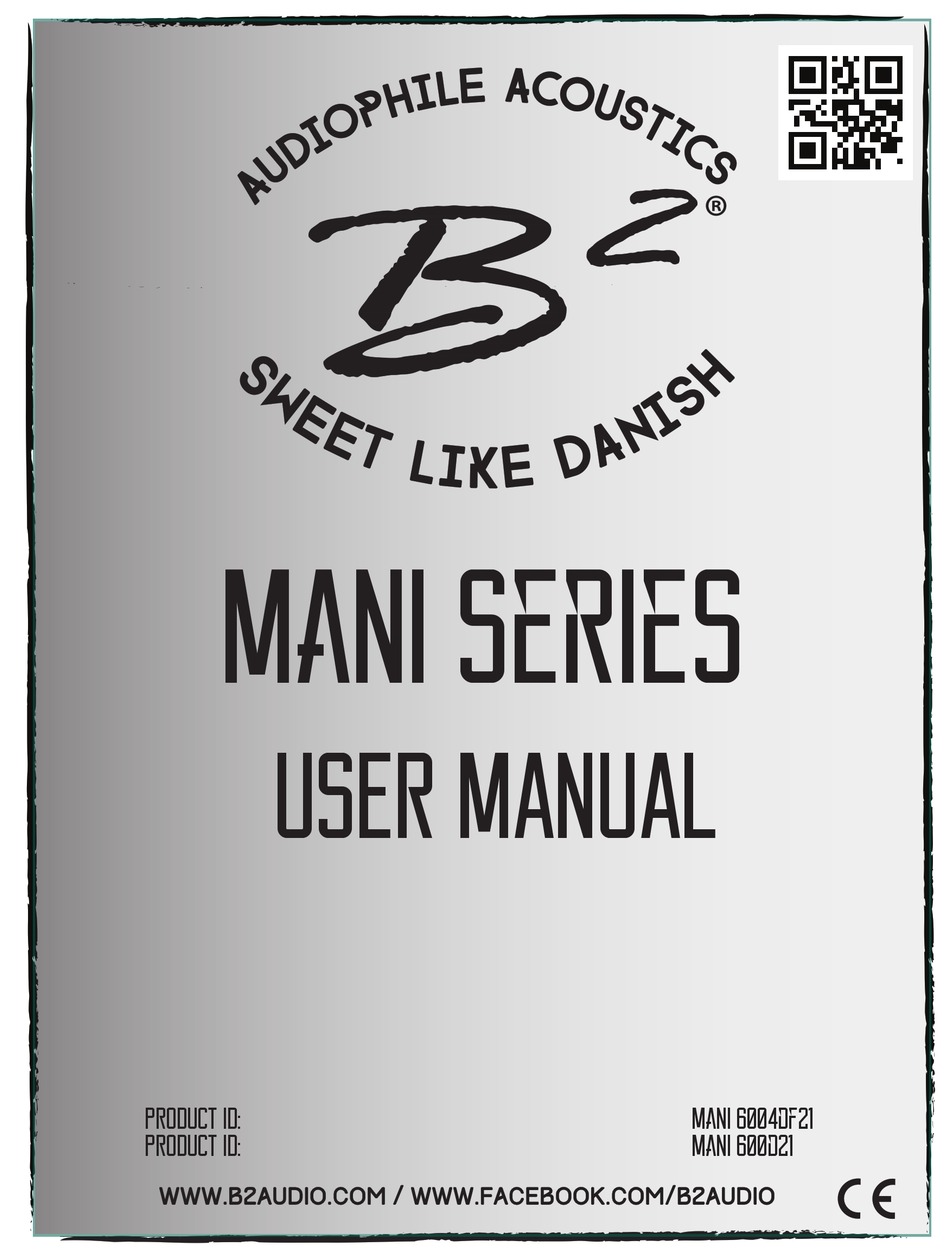

- Page 1 USER MANUAL PRODUCT ID: mani 6004df21 PRODUCT ID: mani 600d21...
-
Page 2: Input Connection
Starting out with a 4ch and a matching mono, both of which are equally versatile, we are excited to present the Mani 600.4 and the Mani 650. Where there’s su cient amounts of power, performance & authority, spiced up with the keystones of B2 audio, The Mani ampli ers will provide you with numerous hours of joy and sweetness. -
Page 3: Design Features
Design features mani 600 mani 600.4 HI-EF Class D mono Hi-Ef class d FULLRANGE Circuit Configuration: 10 Hz ~ 500 Hz 10 Hz ~ 40 kHz Frequency Response: > 90 DB > 90 Db Signal to Noise Ratio: Input Sensitivity: 5 V ~ 0.35 V 5 V ~ 0.35 V 24 DB / Oct... - Page 4 Panel layout MANI 600 MANI 600.4 turn on mode subsonic The ampli ers can be powered up by using either of: Variable subsonic setting from 5 Hz to 40 Hz 1. Signal input from RCA, 2. O set voltage from speaker inputs, It is highly recommended to set it according to 3.
-
Page 5: Power Terminals
power terminals mani 600 mani 600.4 70 A fuse rating 70 A fuse rating POWER TERMINAL GND (GROUND CONNECTION) +12V (POWER CONNECTION) Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery. Fuses shall be placed within 8” / 20 cm of the battery. for optimal operation. - Page 6 Installation Installation considerations If you choose to install the ampli er by yourself, please read the entire owner’s manual carefully. Before you start your installation, please take all steps into consideration. If in doubt, please go to www.b2audio.com for authorized distributors / dealers that will be able to con gure your set up &...
-
Page 7: Speaker Connection
SPEAKER CONNECTION mani 600 mani 600.4 SPEAKER IMPEDANCE 2 OHM ~ 8 OHM will reach thermal at a faster rate & will eventually go into protect. Impedance load under 2 ohm is not warranted! SPEAKER IMPEDANCE 2 OHM ~ 8 OHM will reach thermal at a faster rate &... - Page 8 sPeaker connection mani 600.4- BRIDGE MODE SPEAKER IMPEDANCE 4 OHM ~ 8 OHM will reach thermal at a faster rate & will eventually go into protect. Impedance load under 4 ohm is not warranted! We recommend using minumum12 Ga speaker cables to acquire the intended performance & e ciency. Run the speaker cables from your speakers to the ampli er’s mounting location.
-
Page 9: Input Signal
INPUT SIGNAL RCA Line CONNECTION mani 600 mani 600.4 RCA line input from a Head-Unit, DSP or any source with RCA will be possible to use. The signal shall not exceed 5V and has to be at least 0.35V from the source. Using the wrong signal, can damage the input section or require excessive gain, which can lead to distortion. - Page 10 INPUT SIGNAL high level connection mani 600 mani 600.4 High level input from loudspeaker wires, this option is only preferred if there is no RCA connection available. This will provide a signal input from the oem wire harness in the car. The provided adapter cable can then be spliced and connected with the car’s harness.
- Page 11 16 V.
