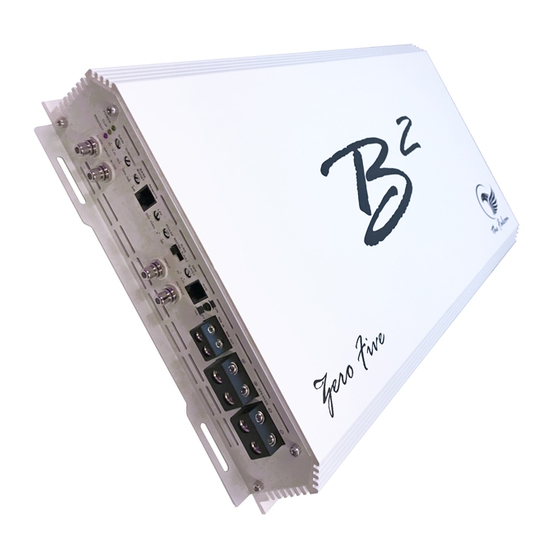

Zero Five - The Falcon
Zero8 - The Osprey

USER MANUAL

PRODUCT ID:
Z5FALCOND19
Z8OSPREYD19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zero Five The Falcon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for B2 Audio Zero Five The Falcon

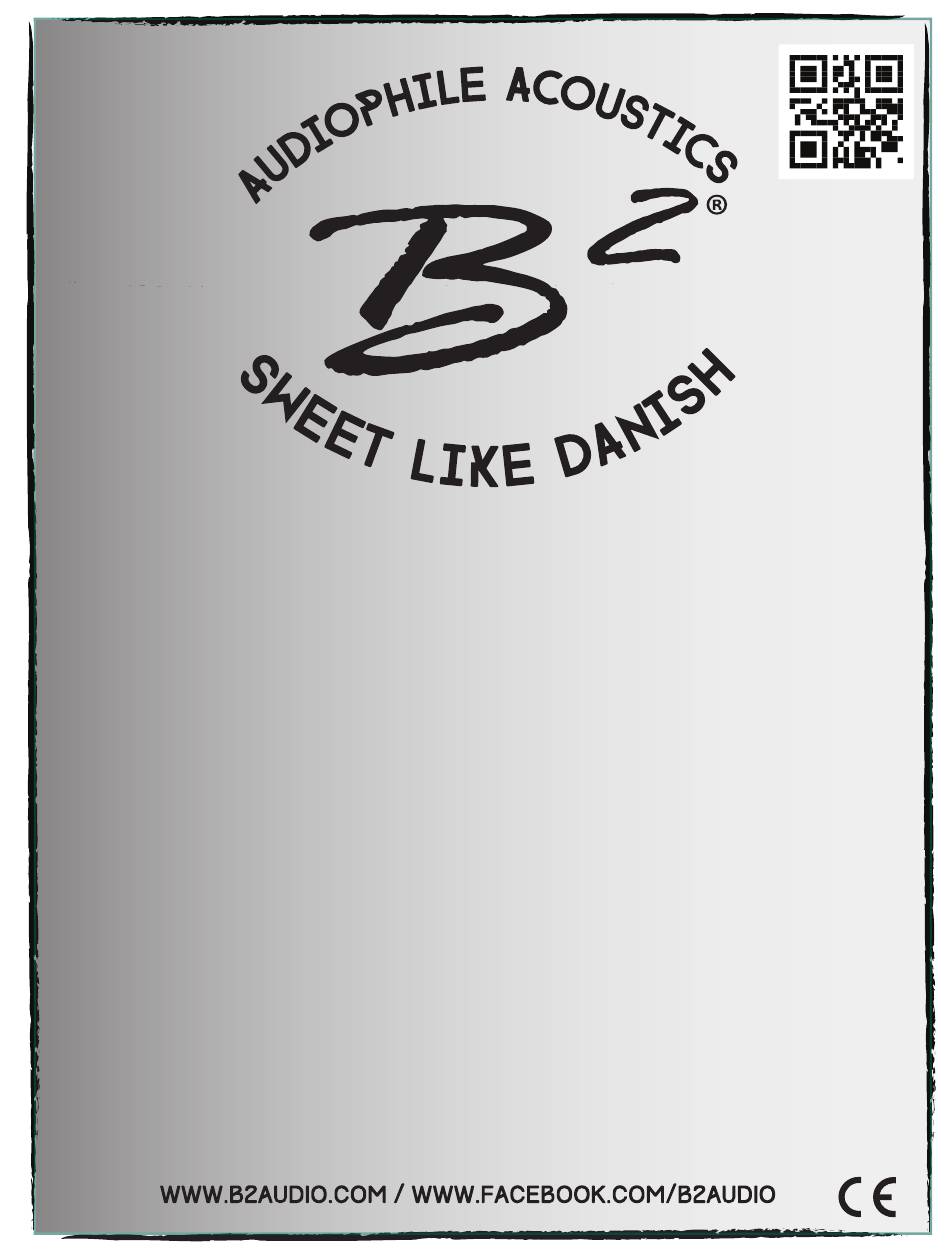

  • Page 1: User Manual

    Zero Five - The Falcon Zero8 - The Osprey USER MANUAL PRODUCT ID: Z5FALCOND19 Z8OSPREYD19...
  • Page 2: Table Of Contents

    From each component used to the thickness of PCB, we left no rock unturned so to speak. The result is an entirely new ampli er line, designed in the USA with the help of the Danish DNA we o er in all of B2 audio’s products. B2 Audio is proud to present the new Zero ampli ers: Zero Five - The Falcon &...
  • Page 3: Design Features

    Design features Zero Five / The Falcon Zero 8 / The Osprey Circuit Configuration: HI-EF Class D hi-ef Class D Frequency Response: 10 Hz ~ 300 Hz 10 Hz ~ 300 hz Signal to Noise Ratio: > 95 dB > 95 db Input Sensitivity: 5 V ~ 0.2 V 5 v ~ 0.2 v...
  • Page 4: Panel Layout

    Panel layout The Falcon / The Osprey INPUT bass boost RCA signal input for left & right channel. Level control of 0~9 dB @ 45 Hz. A minimum of 0.2V input signal is required for correct operation. Using only 1 input will minimize input signal Remote level control port and ampli er will need to be gained as such.
  • Page 5: Power Terminal

    Power terminals The Falcon 600 A fuse rating power terminal GND (Ground connection) +12v (Power connection) Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery. possible (< 20” / 50 cm). Use minimum 0AWG cable For speci ed performance 0AWG cable is required.
  • Page 6 Power terminals The Osprey 850 A fuse rating power terminal GND (Ground connection) +12v (Power connection) Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery. possible (< 20” / 50 cm). Use minimum 0AWG cable For speci ed performance 0AWG cable is required.
  • Page 7: Installation & Preparation

    Installation Installation considerations If you choose to install the ampli er by yourself, please read the entire owner’s manual carefully. Before you start your installation, please take all steps into consideration. If in doubt, please go to www.b2audio.com for authorized distributors / dealers that will be able to con gure your set up &...
  • Page 8: Speaker Connection

    speaker connection The Falcon / The Osprey Speaker impedance 1 Ohm ~ 8 Ohm will reach thermal at a faster rate & will eventually go into protect. Impedance load under 1 ohm is not warranted! We recommend using minumum10 Ga speaker cables to acquire the intended performance & e ciency. Run the speaker cables from your speakers to the ampli er’s mounting location.
  • Page 9: Strapped Control Panel Setting

    Strapped control panel setting / speaker wiring The Falcon / The Osprey Speaker impedance 2 Ohm ~ 8 Ohm will reach thermal at a faster rate & will eventually go into protect. Impedance load under 2 ohm is not warranted in strapped mode! Step 1.
  • Page 10: Slave 2 Control Panel & Wiring

    Slave 2 control panel setting / speaker wiring The Falcon / The Osprey slave 2 slave 3...
  • Page 11: Accu8 Crossover & Boost

    accu8 crossover & boost Low pass, Bass Boost The low pass crossover is 18 dB / oct. Setting it at 80 Hz will then have the signal cut off with 18rrrr dB at 40 Hz (1 octave). To ensure accuracy for the individual crossover frequency the pot feature 41 clicks, each with a corresponding frequency. The same is valid for the bass boost settings, which also features 41 clicks.
  • Page 13: Audio Precision Charts

    audio precision charts The Falcon 14.4 V - 1 ohm - 40 Hz dx=-6.163 kW dy=1.02086 % 1.17944 0.15858 6.164k Sweep Trace Color Line Style Thick Data Axis Comment Cursor1 Cursor2 Solid Anlr.THD+N Ratio Left *1.17944 % *0.15858 % The Osprey 14.4 V - 1 ohm - 40 Hz dx=-9.536 kW dy=-0.98726 %...
