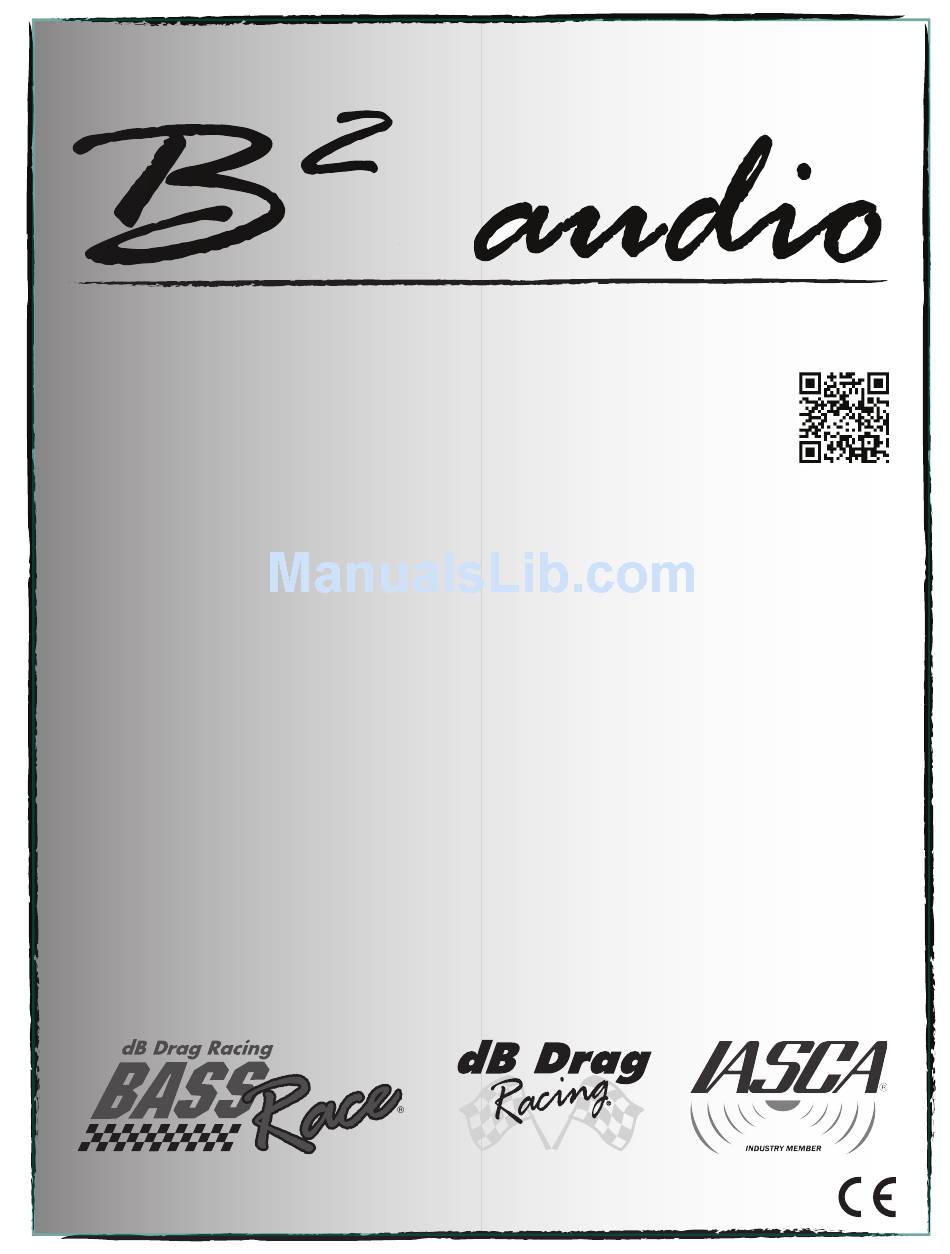

- Page 1 MODEL: Quota MKII Product id:QUOTAD12 Quota OWNER’S MANUAL...
-
Page 2: Table Of Contents
Foreword We congratulate you with your decision to purchase our reveered niche amplifiers. Every product developed by implements the keystones of our company philosophy; Optimum sound reproduction within its range, etter ass & high performance. These elements will enable you to reproduce music the way you prefer. Our amplifiers features a unique design, a variety of applications &... -
Page 3: Design Features
1. Design features Quota Circuit Configuration HI-EF Class D Mono Frequency Response : 10Hz ~ 300Hz Signal to Noise Ratio : 93dB Input Sensitivity : 6V ~ 0.2V Crossover : 12dB / Oct Low Pass Crossover Range : 30Hz ~ 300Hz Subsonic Crossover : 10Hz ~ 60Hz Bass Boost @ 45Hz... -
Page 4: Panel Layout
2. Panel layout Quota INPUT REMOTE GAIN SUBSONIC BASS BOOST PHASE SHIFT PROTECT POWER 10Hz 60Hz 30Hz 300Hz 12dB INPUT LOW PASS FILTER Signal input from the head unit. A minimum level Adjusts the cut off point for the low pass filter input of 0.2V is essential for correct operation. -
Page 5: Installation
3. Installation 3.1 Installation considerations If you choose to install the amplifier by yourself, please read the owner’s manual carefully. Before you start your installation, please take all steps into consideration. If in doubt, please go to www.b2audio.com for authorized distributors / dealers that will be able to configure your set up. -
Page 6: Wiring Layout
3.3 Installation +12V, GND, REM connection chart Head unit Remote turn on SPK A SPK B POWER SPEAKER GROUND FUSE GROUND BA TTERY Wiring layout We recommend using 12 AWG speaker cables to obtain increased performance. Run 12 AWG speaker cables from your speakers to the amplifier’s mounting location Keep the speaker cables seperate from the power cables and and the amplifier’s input cables. -
Page 7: Troubleshooting
4. Troubleshooting The protection circuits of the amplifier prevents severe damages from faulty conditions & improper use. The protection indicatior will switch on due to short circuit connection & speaker overload, thus the amplifier will be turned off. Prior to inspecting the occurred problem, turn all levels down & all power off, then carefully check the installation for wiring mistakes, shorts or faulty ground (GND). - Page 8 Sweet Like Danish...
