Do you have a question about the FD5000SW and is the answer not in the manual?
Questions and answers
Collin S.
April 15, 2025
How do I hook the SWC to a BOSS head unit
1 comments:
Mr. Anderson
April 15, 2025
To connect the Scosche FD5000SW Steering Wheel Control (SWC) to a BOSS head unit:
1. Refer to the chart on page 9 of the manual to identify the correct wire loop to cut and the proper SWC wire connections for BOSS. 2. Connect the 3.5mm male jack to the SWC input on the back of the BOSS stereo, if it has a 3.5mm SWC input. 3. If the BOSS stereo does not have a 3.5mm jack, connect the Brown (KEY1), Gray (KEY2), or Black (GND) wire to the stereo’s SWC input wire as specified in the chart. 4. Connect the 14-pin male connector to the interface module.
If BOSS is not listed on the chart, contact technical support for instructions.
This answer is automatically generated
Tommy Long
March 11, 2025
How do you hook up the steering wheel control on this radio
1 comments:
Mr. Anderson
March 11, 2025
To connect the steering wheel control on the Scosche FD5000SW radio:
1. Refer to the chart on page 9 of the manual to determine which colored loop to cut and the corresponding connection for your stereo. 2. Connect the 3.5mm male jack to the back of the stereo’s SWC input or connect the Brown (KEY1), Gray (KEY2), or Black (GND) wire to the stereo’s SWC input wire. 3. Connect the male 14-pin connector to the interface module as shown in the diagram. 4. For Alpine, Clarion, JVC, Panasonic, and some other car stereos, plug the 3.5mm male steering plug into the steering wheel input jack at the back of the stereo. 5. For Kenwood and newer JVC stereos, connect the Brown wire from the steering wheel harness to the appropriate input.
Ensure all connections are secure and follow the provided guide for your specific vehicle model.
This answer is automatically generated
Wil Christensen
February 9, 2025

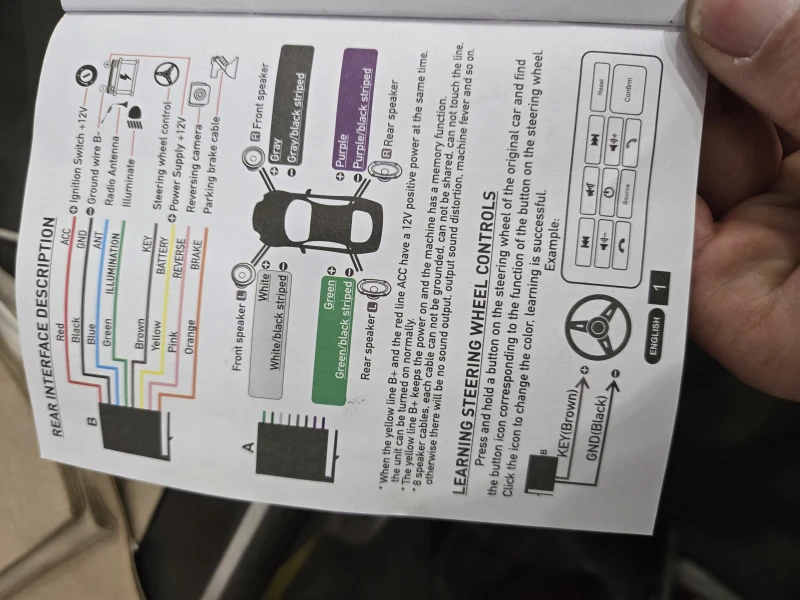

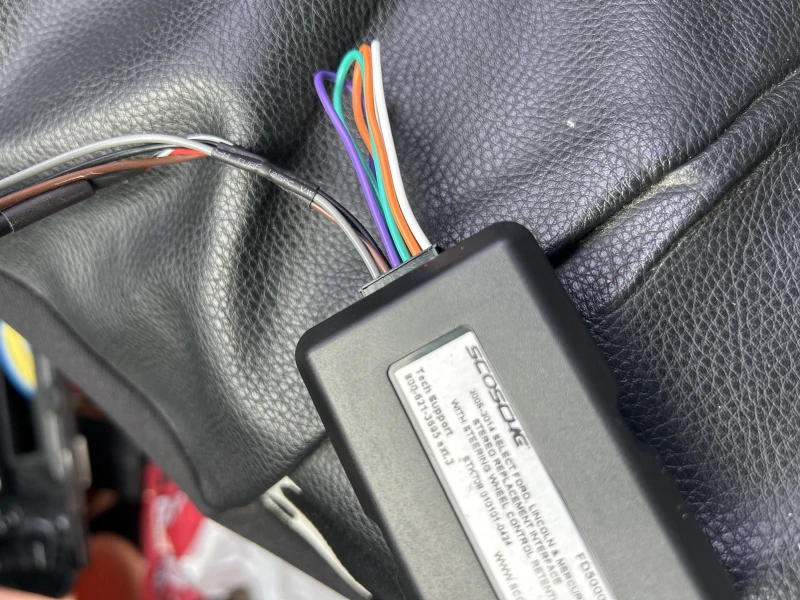

I need help getting the interface wired to my radio! It’s a power acoustik single din with touch screen and apple car play and wheel controls
1 comments:
Mr. Anderson
February 11, 2025
1. Disconnect Power: Disconnect the negative battery terminal to prevent short circuits.
2. Match Wires: Connect the FD5000SW harness wires to the corresponding wires on the Power Acoustik radio harness. Use the provided wire color codes: - Yellow (FD5000SW) → Yellow (+12V Constant) - Red (FD5000SW) → Red (+12V Accessory Switched) - Black (FD5000SW) → Black (Chassis Ground) - Orange (FD5000SW) → Orange (+12V Illumination, if available) - White/White-Black → Front Left Speaker (+/-) - Gray/Gray-Black → Front Right Speaker (+/-) - Green/Green-Black → Rear Left Speaker (+/-) - Violet/Violet-Black → Rear Right Speaker (+/-)
3. Steering Wheel Controls: If your radio supports steering wheel controls, refer to pages 8-9 of the manual for the correct wiring connections.
4. Unused Wires: Cap or tape off any unused wires separately to avoid short circuits.
5. Reconnect Power: Reconnect the negative battery terminal.
6. Initialization: Close all doors, remove the key, and allow the vehicle to enter a resting state for a few minutes before turning on the radio.
Page 1
(CAN Bus Data System) PRELIMINARY Congratulations on your purchase of the FD5000SW Car Stereo Replacement Interface. This interface with harness will allow you to replace your factory stereo and retain important power, communication and diagnostic functions in your vehicle. The interface will also retain steering wheel controls (if equipped) when using a compatible aftermarket stereo.
Page 2
NOTE: Your vehicle’s ECM (Electronics Control Module) may store an error code if operated without the factory stereo installed and you may experience difficulty when having the vehicle serviced at the dealership. The FD5000SW Interface module / harness will allow you to REPLACE the factory stereo and RETAIN the original power and communication signals. BEFORE BEGINNING: READ THIS INSTRUCTION MANUAL **CAUTION**: Disconnect negative battery terminal to avoid short circuits.
VEHICLE APPLICATIONS: MAKE/MODEL YEAR MAKE/MODEL YEAR FORD LINCOLN EDGE 2007-10 MKX 2007-10 ESCAPE 2008-12 MKZ 2007-10 EXPEDITION 2007-14 NAVIGATOR 2007-14 EXPLORER 2006-10 ZEPHYR 2006 EXPLORER SPORT TRAC 2007-10 MERCURY F SERIES PICKUP 2009-12 MARINER 2008-10 F-SERIES SUPER DUTY PICKUP 2008-12 MILAN 2006-10 FIVE HUNDRED 2005-07 MONTEGO 2005-07 FOCUS (Non-Sony system) 2008-11 MOUNTAINEER 2006-10...
Page 4
FD5000SW OVERVIEW FD5000SW WIRES FOR AFTERMARKET STEREO See wire color codes and wiring diagram. INTERFACE MODULE 8-PIN CONNECTOR FD5000SW STEERING WHEEL CONTROL HARNESS FD5000SW INTERFACE HARNESS 16-PIN CONNECTOR 24-PIN CONNECTOR...
2. Remove and unplug factory stereo. (If needed, call Scosche Tech Support 1 (800) 621-3695 x3 for stereo removal steps.) 3. Match and connect the appropriate wires from the FD5000SW harness to the appropriate wires of the plug provided with your stereo. For example, connect the yellow +12V Constant lead from your stereo to the yellow wire of the FD5000SW harness. (See wiring diagram section for additional information.) NOTE: If your vehicle is equipped with steering wheel controls and you are installing a compatible aftermarket stereo, see pages 8-9 for connection information.
1. The Red +12V switched accessory wire coming from the FD5000SW interface is rated at 10 amps for use with a single Aftermarket stereo. Connecting additional accessories to this +12V power source can cause damage to the FD5000SW module. 2. There are wires connected ONLY between the FD5000SW interface plug and the vehicle connectors (under the insulating tape). Do not make any connections or cuts to these wires. 3. If your stereo does not contain an “Orange” illumination wire, then the orange wire will not be used.
STEERING WHEEL CONTROLS 1. Determine if your vehicle has built-in stereo (audio) control buttons located on the steering wheel: a. If yes, proceed to step 2. b. If no, then disregard this steering wheel controls section. 2. Determine if your new stereo is compatible with steering wheel controls.
Page 9
STEERING WHEEL WIRING CODES 1. Prepare FD5000SW steering wheel connector by using the chart below. 2. Connect the harness to the interface module. 3. For Alpine, Clarion, JVC, Panasonic and car stereos, connect the 3.5mm male steering plug into the steering wheel input jack at the back of the stereo. 4. For Kenwood and newer JVC stereos, connect the BROWN wire from the steering wheel harness to the REMOTE IN wire at the back of the stereo.
When connected and installed per these instructions, the aftermarket stereo should operate normally. If using steering wheel controls and compatible stereo, refer to the diagram on page 8 for button functions. If you any questions or need technically assistance regarding this product, please call Tech Support: (800) 621-3695 Ext. 1. For complete warranty details, please visit us at www.scosche.com or call (800) 363-4490...
Need help?
Do you have a question about the FD5000SW and is the answer not in the manual?
Questions and answers
How do I hook the SWC to a BOSS head unit
To connect the Scosche FD5000SW Steering Wheel Control (SWC) to a BOSS head unit:
1. Refer to the chart on page 9 of the manual to identify the correct wire loop to cut and the proper SWC wire connections for BOSS.
2. Connect the 3.5mm male jack to the SWC input on the back of the BOSS stereo, if it has a 3.5mm SWC input.
3. If the BOSS stereo does not have a 3.5mm jack, connect the Brown (KEY1), Gray (KEY2), or Black (GND) wire to the stereo’s SWC input wire as specified in the chart.
4. Connect the 14-pin male connector to the interface module.
If BOSS is not listed on the chart, contact technical support for instructions.
This answer is automatically generated
How do you hook up the steering wheel control on this radio
To connect the steering wheel control on the Scosche FD5000SW radio:
1. Refer to the chart on page 9 of the manual to determine which colored loop to cut and the corresponding connection for your stereo.
2. Connect the 3.5mm male jack to the back of the stereo’s SWC input or connect the Brown (KEY1), Gray (KEY2), or Black (GND) wire to the stereo’s SWC input wire.
3. Connect the male 14-pin connector to the interface module as shown in the diagram.
4. For Alpine, Clarion, JVC, Panasonic, and some other car stereos, plug the 3.5mm male steering plug into the steering wheel input jack at the back of the stereo.
5. For Kenwood and newer JVC stereos, connect the Brown wire from the steering wheel harness to the appropriate input.
Ensure all connections are secure and follow the provided guide for your specific vehicle model.
This answer is automatically generated
I need help getting the interface wired to my radio! It’s a power acoustik single din with touch screen and apple car play and wheel controls
1. Disconnect Power: Disconnect the negative battery terminal to prevent short circuits.
2. Match Wires: Connect the FD5000SW harness wires to the corresponding wires on the Power Acoustik radio harness. Use the provided wire color codes:
- Yellow (FD5000SW) → Yellow (+12V Constant)
- Red (FD5000SW) → Red (+12V Accessory Switched)
- Black (FD5000SW) → Black (Chassis Ground)
- Orange (FD5000SW) → Orange (+12V Illumination, if available)
- White/White-Black → Front Left Speaker (+/-)
- Gray/Gray-Black → Front Right Speaker (+/-)
- Green/Green-Black → Rear Left Speaker (+/-)
- Violet/Violet-Black → Rear Right Speaker (+/-)
3. Steering Wheel Controls: If your radio supports steering wheel controls, refer to pages 8-9 of the manual for the correct wiring connections.
4. Unused Wires: Cap or tape off any unused wires separately to avoid short circuits.
5. Reconnect Power: Reconnect the negative battery terminal.
6. Initialization: Close all doors, remove the key, and allow the vehicle to enter a resting state for a few minutes before turning on the radio.
This answer is automatically generated
