Scosche 142HUD2 Manual

Register your product online at
www.scosche.com/register
~
SCCJSCIIE'
HUD2
OBDII
''HEADS-UP'' LED DISPLAY

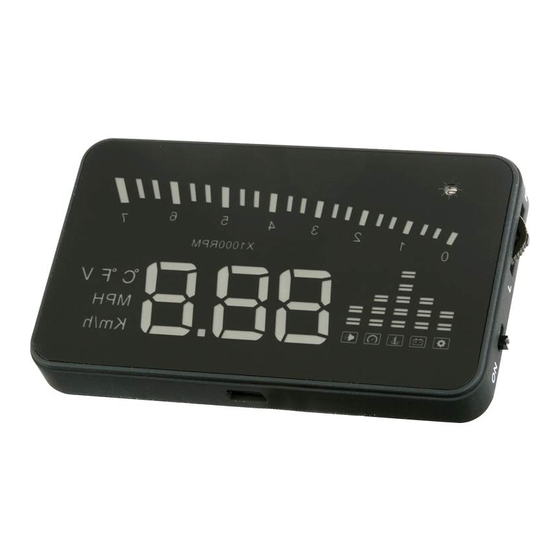

PARTS INCLUDED
(1) HUD2
display unit
(1) Non-slip dash mat
(1)
Reflective window film
(1) 080-11 connecting cable
(1) lnstallation/Owner•s manual
FEATURES
• Display unit projects speed ,
engine RPMs and status
information onto windshield
for safer viewing while driving
• Multi-color LED display auto-adjusts
brightness for day or night driving
• User programmable alerts for
speed, temperature and voltage
• Works with 2001 and newer
vehicles with OBD-11 interface*
SPECIFICATIONS
Display size: 3.0 .. (76.2mm)
diagonally measured
Display type: LED (multicolor)
Operating temperature: -40
- +
176F
(-40- +SOC)
Operating voltage: +9 - 16VDC
Operating current: 400mA
(@+
12VDC)
Operating requirement: OBD II interface
*CAUTION: The OBD-11 port keeps a very small amount of voltage even the with vehicle
turned off. If you plan to store or NOT use your vehicle for 30 days, unplug the HUD2 to
prevent battery drain.
©2017 SCOSCHE INDUSTRIES, INC.
Sl- 300HUD2 12/16
