Scosche FD1432B Manual

IN-DASH INSTALLATION KIT FOR
SELECT 2006-UP FORD, LINCOLN, & MERCURY
FORD
2007-UP EDGE
2006-UP EXPLORER
2007-UP EXPEDITION
2006-UP FUSION
2008-UP SUPERDUTY PICK-UP
MERCURY
2006-UP MOUNTAINEER
2006-UP MILAN
LINCOLN
2007-UP NAVIGATOR W/ NAV

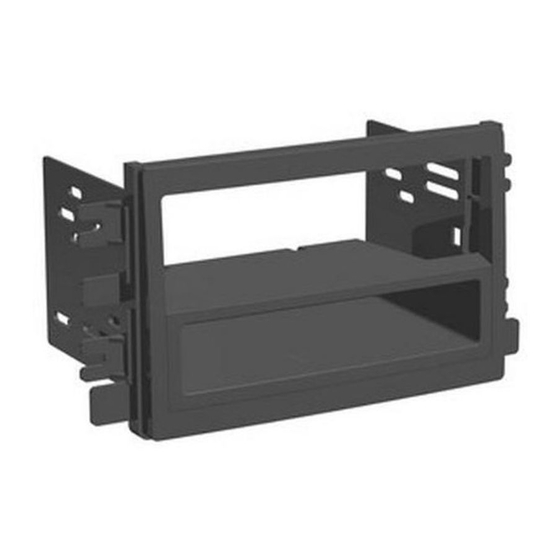

6217
MOUNTING
PANEL
INTRODUCTION / PRELIMINARY
This premium installation kit is for Select 2006-UP FORD, MERCURY, & LINCOLN Vehicles. Included are all
the parts you need to mount your car stereo/cassette or CD player into your vehicle's dash. Refer to the
individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.
CAUTION:
DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT
ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHN METER OVER A TEST LIGHT TO CHECK WIRING.
A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR
DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING
SERIOUS INJURY OR DEATH.
NOTES:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting
instructions.

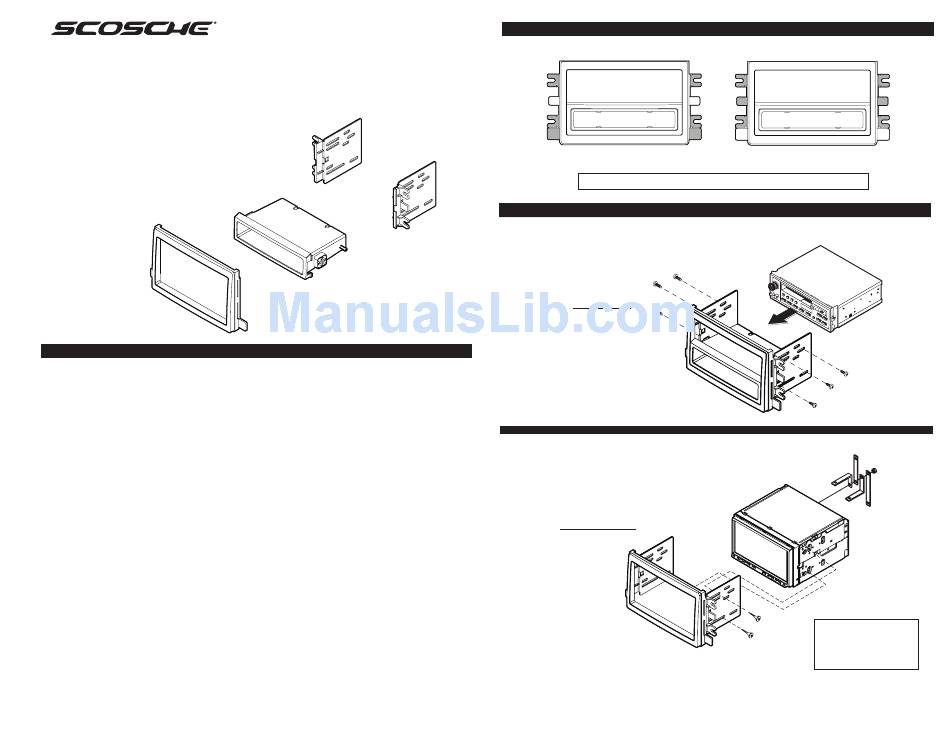

SCOSCHE STEREO INSTALLATION COMPONENTS
FD1432B
VEHICLES
6218
L&R BRACKET
6219
POCKET
MOUNTING BRACKET CONFIGURATIONS
FIGURE 1
USE THE SHADED MOUNTING TABS. CUT OFF THE REMAINING TABS AND DISCARD.
MOUNTING THE RADIO
ISO DIN MOUNT
1. Snap the 6218 L&R brackets to 6217 kit Panel.
2. Align the pocket to the lower edge of the panel. Secure the
pocket to the 6218 mounting brackets with the (2) supplied
screws in the installation kit.
3. Mount radio to brackets with radios
supplied screws
ISO DIN MOUNT
DOUBLE DIN MOUNT
1. Snap the 6218 L&R brackets to the 6217 kit panel
2. Align , position and bolt the aftermarket Double DIN-ISO
head unit to the 6218 mounting brackets. Use the hardware
supplied with the aftermarket Double DIN-ISO head
unit to secure the mounting brackets to the
aftermarket radio.
DOUBLE DIN MOUNT
FIGURE 2
DIN RADIO
REAR
SUPPORT
STRAPS
DBL DIN RADIO
NOTE:
REAR SUPPORT AVAILABLE
SEPARATELY. REAR
SUPPORTING THE RADIO
ADDS TO THE INSTALLATION'S
STRUCTURAL INTEGRITY.
STEREO DASH KIT
