Scosche BT1200 Installation Manual

Scosche BT1200 Installation Manual

Bluetooth hands-free universal car kit

Advertisement

This Category II radio communication device complies with Industry Canada Standard RSS-310 for RX Siren.
This device complies with part 15 of the FCC Rules and RSS-210 for TX remote control. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow
the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
To comply with FCC RF exposure requirements, the device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm or more from a person's body. Other operating configurations should be avoided.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. Any changes or modification
not expressly approved by the party responsible could void the user's authority to operate the device.
FCC ID: IKQBT1200
LIMITED WARRANTY
Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days
from purchase. This Scosche product is sold with the understanding that the purchaser has independently determined
the suitability of this product. This warranty is offered to the original purchaser of the product only. This warranty does not
cover the product if physically damaged, subject to negligence or misuse, abuse, alteration, accident, or an act of GOD.
This warranty does not apply to product which has water or physically damaged by accident or which has been misused,
disassembled or altered.
The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective
within the warranty period, return the product with proof of purchase to Scosche Industries Inc. Scosche, at its option, will
replace or repair the product free of charge and return the product postage paid. In no event shall Scosche Industries, Inc.
be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible
for consequential or incidental damages. No express warranties and no implied warranties, whether for fitness or any
particular use or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply
to products sold by Scosche. Scosche Industries cannot be held responsible for discrepancies/inconsistencies that may
occur due to automotive manufacturing changes or option.
12

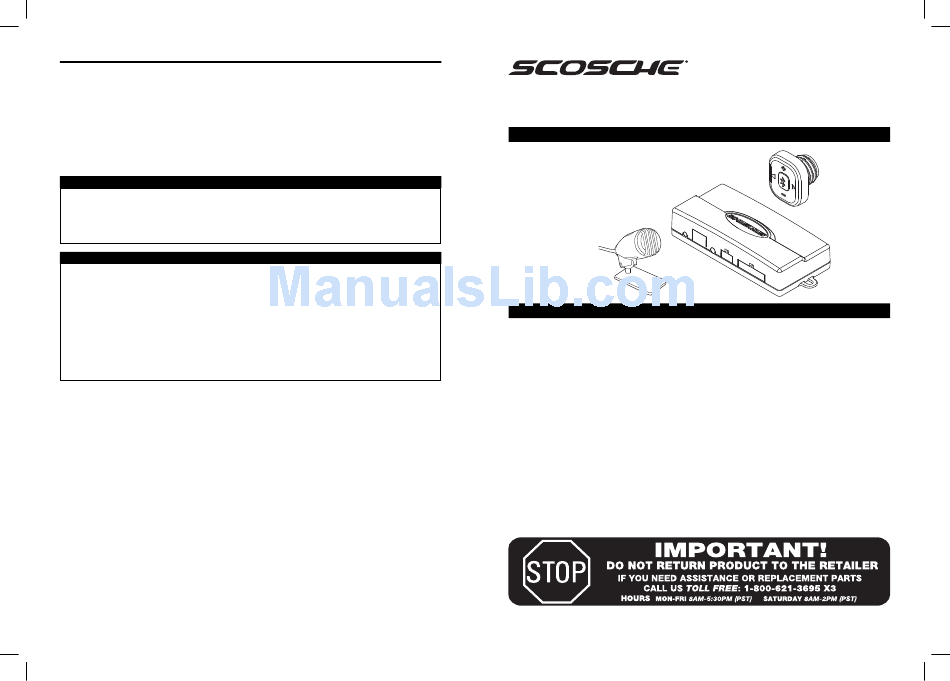

BLUETOOTH
UNIVERSAL CAR KIT

PARTS INCLUDED

• Electronics Box

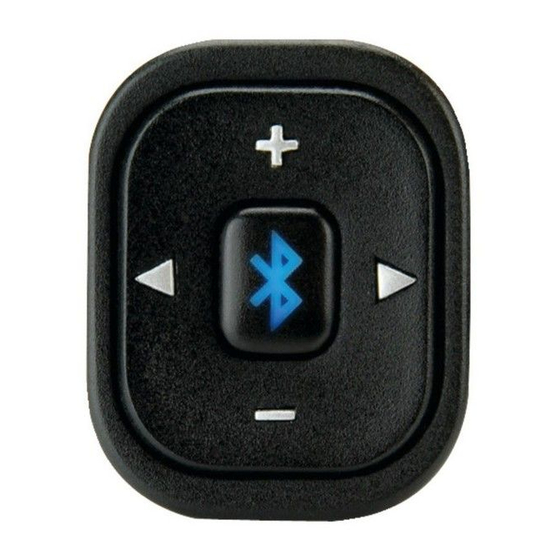

• Keypad Control
• Microphone
• Power / Speaker / Mute (ISO harness)
• Low-level connection harness
• Instruction manual
• Hardware bag
MICROPHONE
INSTALLATION CAUTIONS & WARNINGS
BEFORE BEGINNING
Check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS
BRAKES, ENGINE/BODY COMPUTER AND BATTERY).
PLAN OUT YOUR INSTALLATION
You should pre-determine the location of the microphone, keypad controller and electronics box. This
will save time and ease the installation process.
USE A VOLT/OHM METER
We recommend the use of a Volt/Ohm meter to test and locate all connections. Test lights could possibly
damage a vehicle's computer system or cause an airbag to deploy.
DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED
steering column, or any other moving parts in the vehicle.
MICROPHONE
For best performance, the BT1200 microphone must be pointed toward the direction of the driver's
voice. We recommend choosing a location between the rear-view mirror and sun visor. The microphone
can also be mounted near the top of the A-pillar (windshield post).
ELECTRONICS BOX
Mount the BT1200 electronics box behind the stereo. Do not mount the electronics box near sources of
high heat, moisture or moving parts. Hardware is included to attach the BT1200 box to the vehicle.
KEYPAD CONTROLLER
The keypad is designed to easily mount in a blank switch plate, dash panel or center console. Carefully
choose a location that is within easy reach of the driver. Drilling is required to mount the keypad.
©2010 SCOSCHE INDUSTRIES, INC.
BT1200
®
HANDS-FREE
KEYPAD
CONTROLLER
ELECTRONICS
BOX
with the brake/gas pedals,
300BT1200 01/10
